RAE708GEM44300 - Exmark 44" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 411294212 - 413950473) (Rev B) (2022) Engine Assembly Parts Diagram

44" Radius E-Series Zero-Turn Mower, Exmark 708

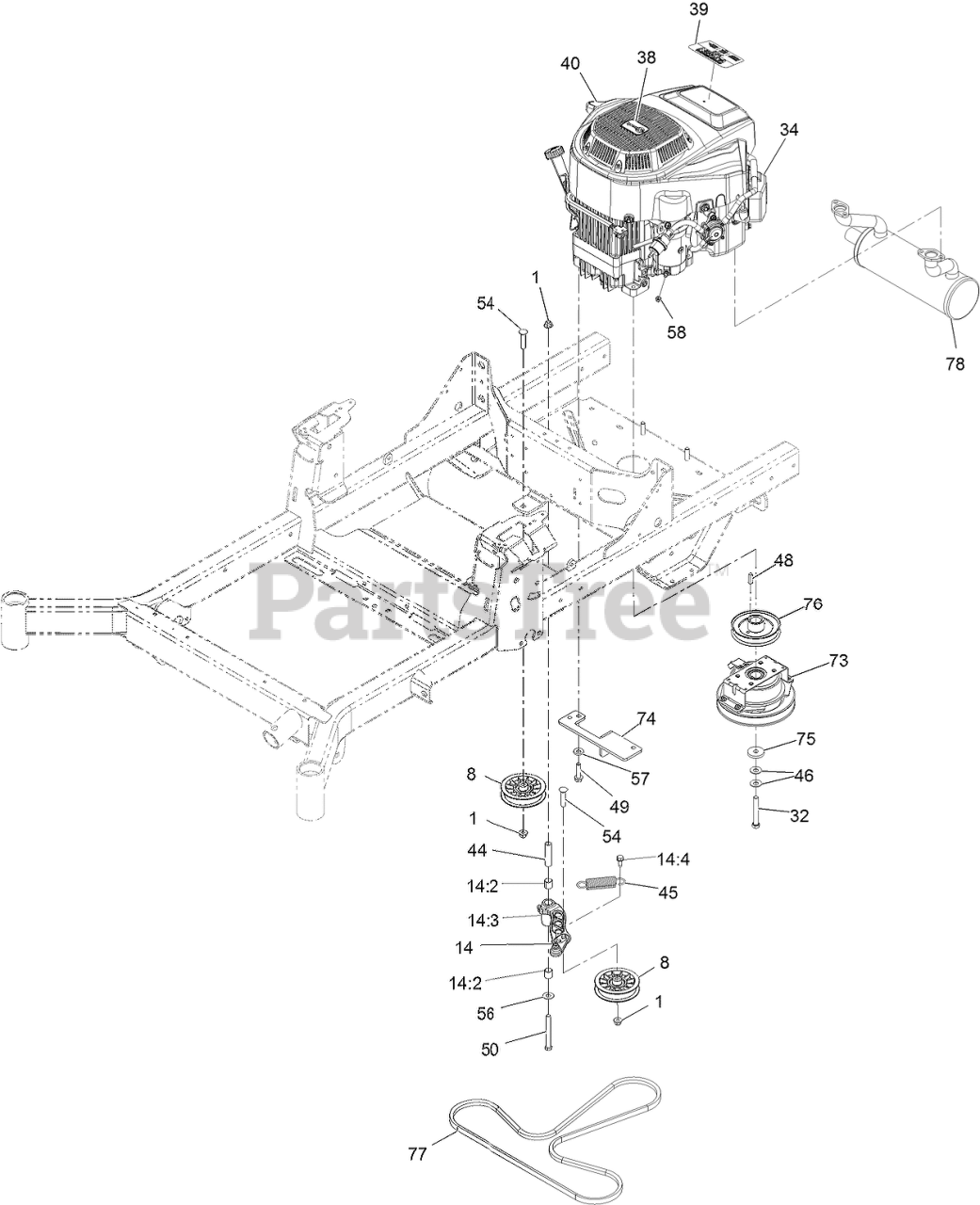

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 9

0

14

Exmark 126-0973

IDLER ARM ASM

$86.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

32

Exmark 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$17.99

$

In Stock, only 1 left!

0

34

Exmark 136-7818

ENGINE-2P77F

$2605.99

$

Usually ships in 3-6 days

0

38

Exmark 131-1078

DECAL

$2.99

$

In Stock, only 2 left!

0

39

Exmark 142-2629

DECAL-ENGINE 708 V-TWIN EXMARK

$5.49

$

Usually ships in 3-6 days

0

40

Exmark 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, only 2 left!

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

48

Exmark 1-807259

KEY

$2.99

$

Usually ships in 3-6 days

0

49

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

50

Exmark 323-15

SCREW-HH

$1.99

$

In Stock, Qty 6

0

54

Exmark 3231-29

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

58

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

73

Exmark 135-5590

Clutch 1.00

$341.99

$

Usually ships in 3-6 days

0

74

Exmark 135-5618-03

ANCHOR CLUTCH

$27.99

$

Usually ships in 3-6 days

0

75

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

76

Exmark 135-6571

Sheave-Engine

$29.99

$

Usually ships in 3-6 days

0

77

Exmark 115-9613

V-BELT
(Superseded to 115-9613-SL)

$53.99

$

Usually ships in 3-6 days

0

78

Exmark 126-5864

MUFFLER

$153.99

$

Usually ships in 3-6 days

0
