RAE708GEM44300 - Exmark 44" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 411294212 - 413950473) (Rev B) (2022) Deck Lift Assembly Parts Diagram

44" Radius E-Series Zero-Turn Mower, Exmark 708

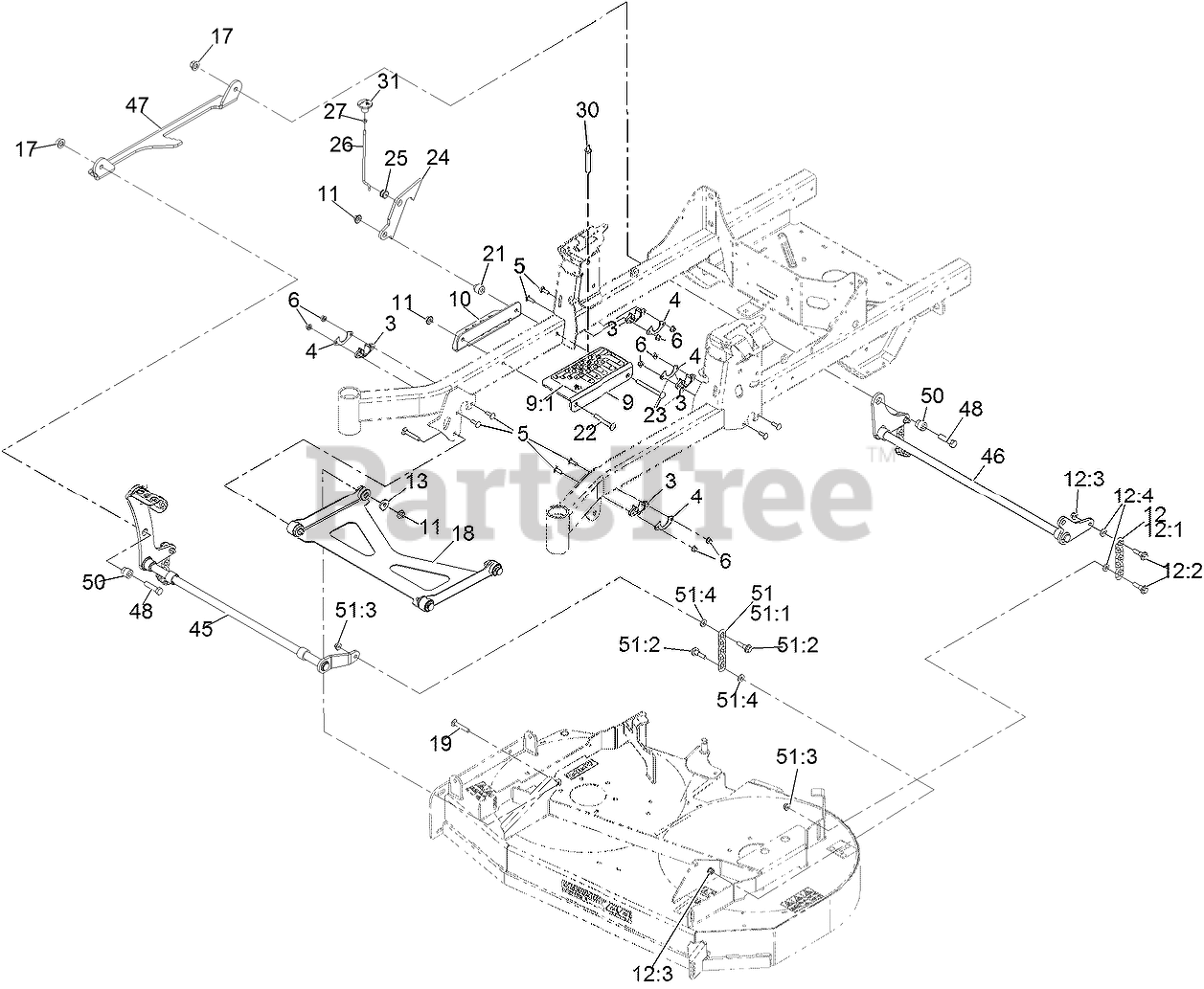

Deck Lift Assembly Parts Diagram

  • Title

3

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 20+

0

4

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 20+

0

5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-4535

BRACKET ASM

$36.99

$

Usually ships in 3-6 days

0

9:1

Exmark 126-4784

DECAL-HOC

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 126-4640-03

ANGLE-HOC, LOWER

$112.99

$

Usually ships in 3-6 days

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-8877

DECK CHAIN ASM

$13.99

$

Usually ships in 3-6 days

0

12:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 8

0

12:2

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12:4

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

17

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

18

Exmark 126-8365

DECK STRUT ASM

$146.99

$

In Stock, only 1 left!

0

19

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 20+

0

21

Exmark 126-5221

SPACER-STEPPED

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 15

0

23

Exmark 135-0313

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-5222

PLATE-LOCK, TRANSPORT

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5593

GROMMET

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 126-5223

ROD-LOCK, TRANSPORT

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

30

Exmark 126-5401

PIN-HOC

$21.99

$

In Stock, only 2 left!

0

31

Exmark 126-7019

KNOB

$10.99

$

In Stock, only 2 left!

0

45

Exmark 135-5083-03

SHAFT-DECKLIFT FRONT

$

$

Not available

46

Exmark 135-5081-03

SHAFT-DECKLIFT REAR

$96.99

$

Usually ships in 3-6 days

0

47

Exmark 135-5079-03

LINK-DECKLIFT

$92.99

$

Usually ships in 3-6 days

0

48

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

50

Exmark 135-5617

Spacer-Stepped

$6.99

$

Usually ships in 3-6 days

0

51

Exmark 135-7215

Deck Chain ASM

$13.99

$

Usually ships in 3-6 days

0

51:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 8

0

51:2

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

51:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

51:4

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0
