RAE708GEM44300 - Exmark 44" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 406294345 - 408644345) (Rev A) (2020) Deck Assembly Parts Diagram

44" Radius E-Series Zero-Turn Mower, Exmark 708

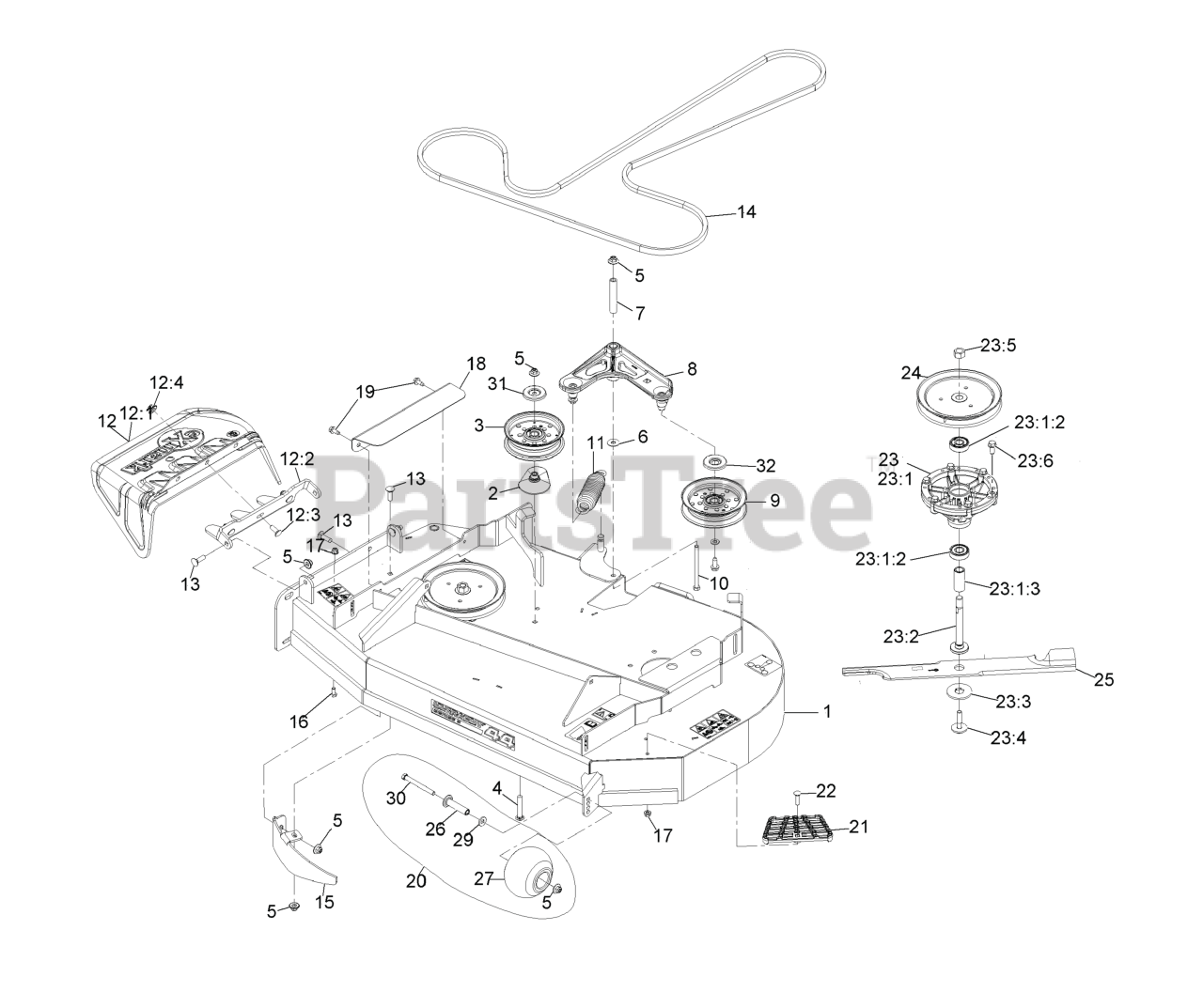

Deck Assembly Parts Diagram

  • Title

1

Exmark 135-5605

DECK ASM

$2517.99

$

Usually ships in 3-6 days

0

2

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

3

Exmark 126-9197

IDLER-PULLEY, FLAT 5.00X1

$62.99

$

Usually ships in 3-6 days

0

4

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 14

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 12

0

7

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

8

Exmark 126-0976

IDLER ARM ASM

$108.99

$

In Stock, Qty 10

0

9

Exmark 126-9196

IDLER-PULLEY, FLAT

$60.99

$

In Stock, Qty 20+

0

10

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

11

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 6

0

12

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

12:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 20+

0

12:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

12:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 12

0

14

Exmark 1-413093

BELT - V, B

$137.99

$

In Stock, only 1 left!

0

15

Exmark 135-5615-01

DOGLEG

$43.99

$

In Stock, only 1 left!

0

16

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 7

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 15

0

18

Exmark 116-2828-01

COVER,BELT

$20.99

$

Usually ships in 3-6 days

0

19

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 12

0

20

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

21

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

22

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

23

Exmark 126-4630

ASM, CUTTER HOUSING COMPLETE

$160.99

$

Usually ships in 3-6 days

0

23:1

Exmark 126-4627

ASM-CUTTER HOUSING

$123.99

$

In Stock, only 1 left!

0

23:1:2

Exmark 116-4004

BEARING

$19.99

$

In Stock, Qty 20+

0

23:1:3

Exmark 116-4876

SPACER-BEARING

$7.99

$

In Stock, only 2 left!

0

23:2

Exmark 109-7431

SPINDLE-HEX PILOT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft

$37.99

$

In Stock, Qty 5

0

23:3

Exmark 126-4530

WASHER-HEX BLADE DRIVE

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$5.49

$

In Stock, Qty 19

0

23:4

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

23:5

Exmark 3219-6

NUT-HEX

Note: Torque to 75-85 ft-lb

$3.99

$

In Stock, Qty 20+

0

23:6

Exmark 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 5

0

24

Exmark 135-6282

SHEAVE- BLADE DRIVE

$75.99

$

In Stock, only 3 left!

0

25

Exmark 116-1037

Blade-Notched, 22.25

$

$

Currently unavailable

25

Exmark 116-1047

Blade-Mulch, 22.25

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$

$

Currently unavailable

25

Exmark 116-5606

USE 116-5606-S
(Superseded to 116-5606-S)

Note: Optional Equipment

$45.99

$

In Stock, only 2 left!

0

25

Exmark 135-7023

USE 135-7023-S
(Superseded to 135-7023-S)

Note: Optional Equipment

$38.99

$

Usually ships in 3-6 days

0

26

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

0

27

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

29

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

30

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

31

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

32

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0
