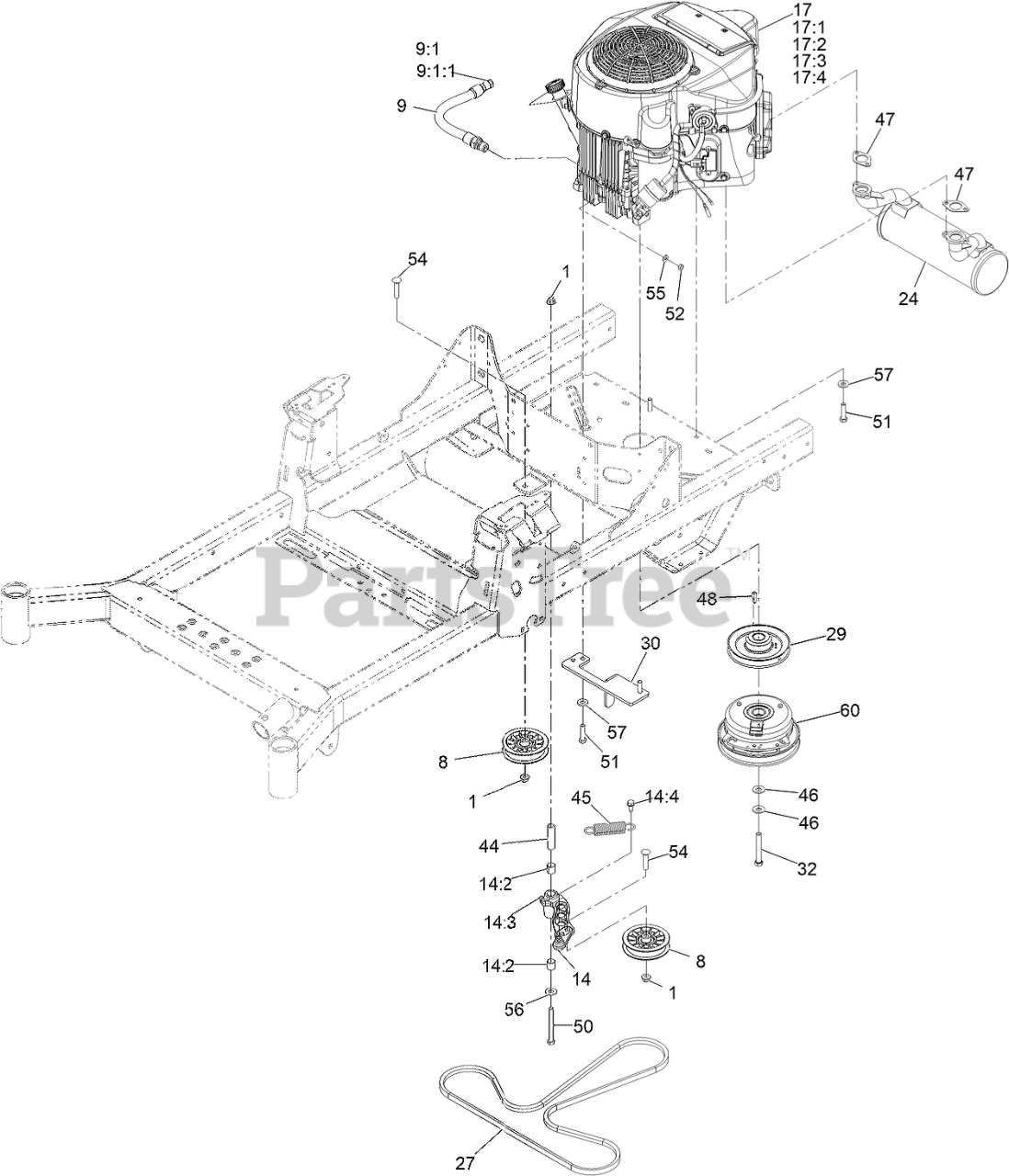

RAE691GKA48C00 - Exmark 48" Radius E-Series Zero-Turn Mower, Kawasaki FR691 (SN: 411294212 - 413950473) (Rev B) (2022) Engine Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Kawasaki FR691

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 20+

0

9

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$37.99

$

In Stock, Qty 7

0

9:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, Qty 5

0

9:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

14

Exmark 126-0973

IDLER ARM ASM

$90.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

17

Engine-Kawasaki Fr691

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

17:1

Kawasaki 49065-7007 Engine Oil Filter

Note: Not serviced separately

$

$

Not available

17:2

Kawasaki 49019-7005 Fuel Filter

Note: Not serviced separately

$

$

Not available

17:3

Kawasaki 92070-7004 Plug-Spark Bpr4ES

Note: Not serviced separately

$

$

Not available

17:4

Kawasaki 11013-7049 Engine Air Filter

Note: Not serviced separately

$

$

Not available

24

Exmark 126-4360

MUFFLER

$153.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 20+

0

29

Exmark 138-6007

SHEAVE-ENGINE

$55.99

$

Usually ships in 3-6 days

0

30

Exmark 126-6687-03

ANCHOR-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

32

Exmark 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$18.99

$

In Stock, only 1 left!

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

47

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

50

Exmark 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

51

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

54

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

55

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

60

Exmark 126-8925

CLUTCH - 1.00 HD

$436.99

$

Usually ships in 3-6 days

0
