RA 13538 B - Electrolux/AYP Lawn Tractor (2004) Ground Drive Parts Diagram

Lawn Tractor

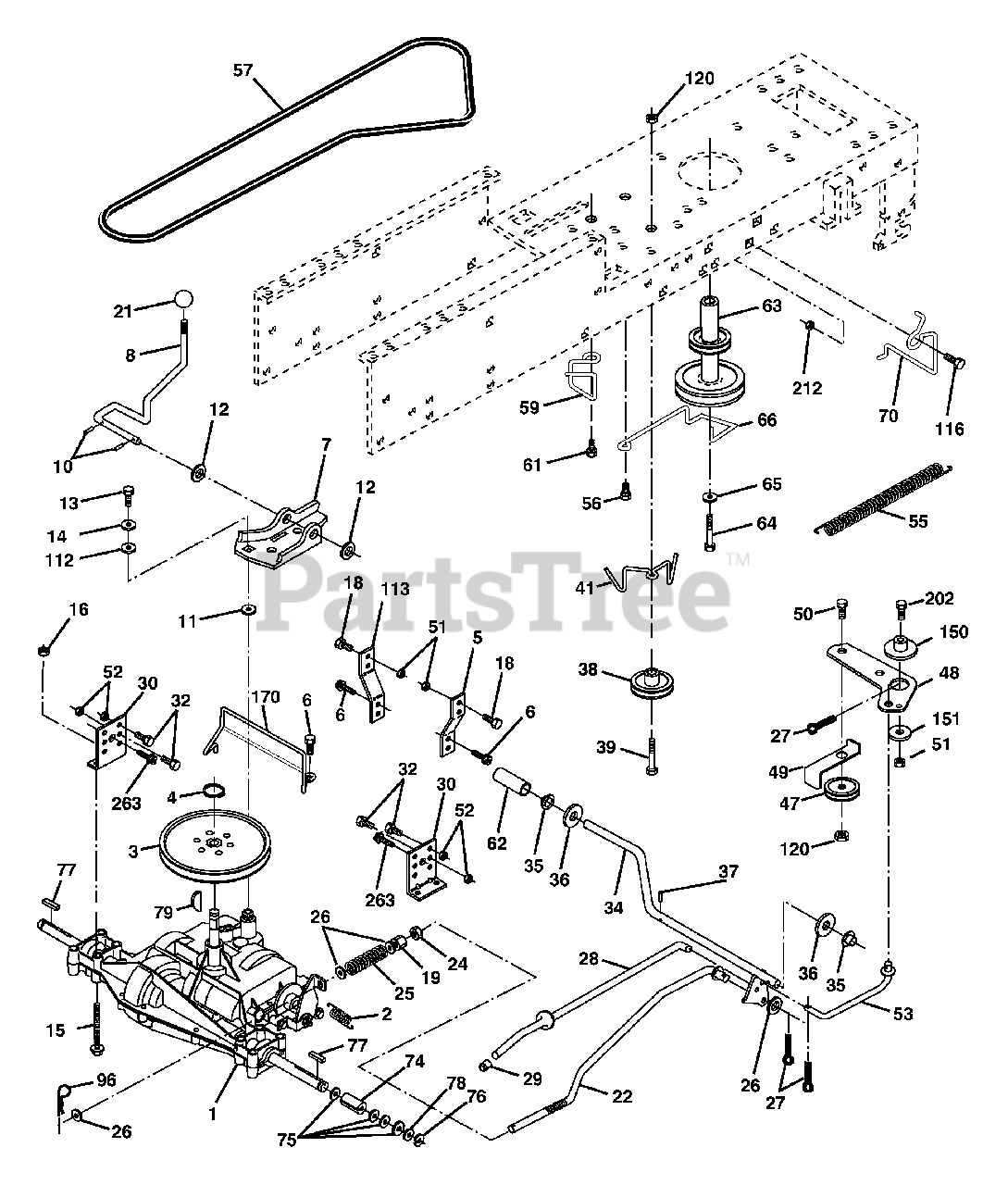

Ground Drive Parts Diagram

  • Title

1

Transaxle Peerless Model 205-544C

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Electrolux/AYP 146682

Spring Return Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 123666X

Pulley Transaxle 18" tires
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000028

Ring Retainer # 5100-62
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 121520X

Strap Torque 30 Degrees RH
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

7

Electrolux/AYP 162240

Plate Rod Shift T/a
(Superseded to 532162240)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 131679

Rod Shifter Blk
(Superseded to 532131679)

$

$

Not available

10

Electrolux/AYP 76020416

Pin Cotter 1/8 x 1 Cad
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105701X

Washer Plate Shf 388 Sq Hole
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 19151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 819151216)

$

$

Not available

13

Electrolux/AYP 74550412

Bolt 1/4-28 unf Gr. 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 74490544

Bolt Hex Flg.Hd. 5/16-18 x Gr.5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

Nut Lock Hex W/Ins 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

Nut lock Hex w/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106933X

Knob Rd 1/2-13 Plstc Thds Blk
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 130804

Rod Brake LT
(Superseded to 532130804)

$31.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 73350600

Nut Hex Jam 3/8-16 unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4 Cad
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 175765

Rod Brake Parking LT/YT
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 71673

Cap Brake Parking Black
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Murray 174973

Bracket Transmission

$

$

Not available

32

Electrolux/AYP 74760512

Bolt Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 175578

Shaft Asm Pedal Foot Nibbed
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 19211616

Washer 21/32 x 1 x 16 Ga.
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin Roll 3/16 X 1"

$

$

Not available

38

Electrolux/AYP 179114

Pulley Composite Flat
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 72110622

Bolt RDHD 3/8-16 unc x 2-3/4 Gr.5
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

41

Electrolux/AYP 175556

Keeper Belt Idler
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

47

Murray 127783

Pulley Idler V Groove Plastic

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drv STL
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer Belt Style Spring
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crownlock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link Clutch 7 66
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring Return Clutch 6 75
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 130801

V-Belt Ground Drive 95
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

59

Electrolux/AYP 169691

Keeper Belt Chassis Span Ctr
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 8883R

Cover Pedal Blk Round
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 175410

Engine Pulley LT/YT
(Superseded to 532175410)

$87.99

$

In Stock, only 1 left!

0

64

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 Gr. 5-1.5 Thr
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 134683

Guide Belt Mower Drive RH
(Superseded to 532134683)

$

$

Not available

74

Electrolux/AYP 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

Washer 25/32 x 1 1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-ring #5133-75
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key Square 2 0 x 1845/ 1865
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

79

Murray 2228M

Key Woodruff

$

$

Not available

96

Electrolux/AYP 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 127285X

Strap Torque 90 Degrees LH
(Superseded to 532127285)

$

$

Not available

116

Murray 72140608

Bolt Rdhd Sq Neck 3/8-16 x 1

$

$

Not available

120

Murray 73900600

Nut Lock Flg 3/8-16

$

$

Not available

150

Electrolux/AYP 175456

Spacer Retainer Lt
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

170

Electrolux/AYP 187414

Keeper, Belt Transaxle
(Superseded to 532187414)

$14.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 72110614

Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

212

Murray 145212

Nut Hex Flg Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

263

Electrolux/AYP 17000612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0
