R8002S (85237) - Snapper Rear-Tine Tiller, 8hp Garden Tool Accessories (P/N 60730 Harrow Kit) Parts Diagram

Rear-Tine Tiller, 8hp

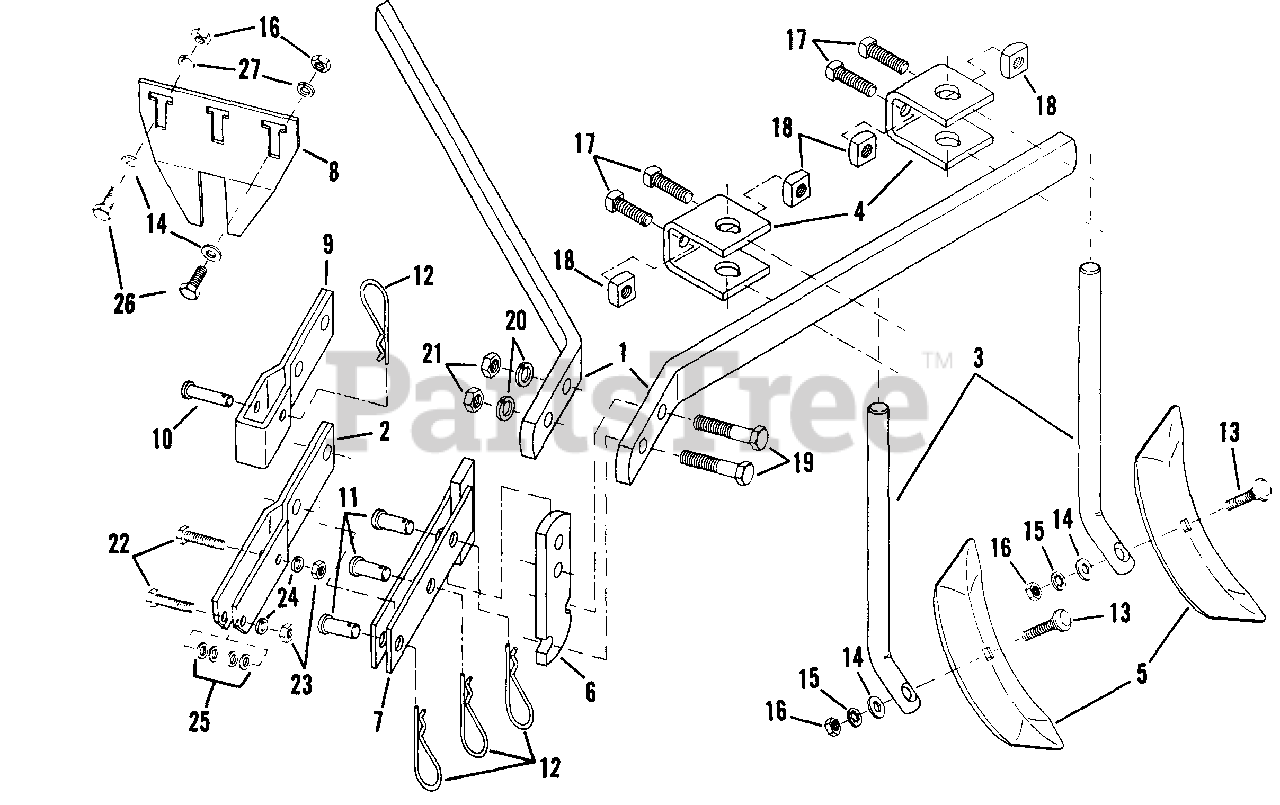

Garden Tool Accessories (P/N 60730 Harrow Kit) Parts Diagram

  • Title

--

Snapper 7060730

KIT, Wisbone Harrow
(Superseded to 7060730YP)

$393.99

$

Usually ships in 2-12 days

0

1

Snapper 7031905

(NLA) TOOL BAR

Note: Was 31905

$

$

Currently unavailable

2

Snapper 7047857

CLEVIS, Bracket
(Superseded to 7047857YP)

$40.99

$

Usually ships in 2-12 days

0

3

Snapper 7032474

SHANK, Cultivator
(Superseded to 7032474YP)

$48.99

$

Usually ships in 2-12 days

0

4

Snapper 7031904

CLAMP
(Superseded to 7031904YP)

$27.99

$

Usually ships in 2-12 days

0

5

Snapper 7012244

SHOVEL, Double Point
(Superseded to 7012244YP)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper 7032473

(NLA) ADAPTER, Harrow

Note: Was 32473

$

$

Currently unavailable

7

Snapper 7047858

DRAW-BAR
(Superseded to 7047858YP)

$46.99

$

Usually ships in 2-12 days

0

8

Snapper 7038217

CLEVIS, Support
(Superseded to 7038217YP)

$33.99

$

Usually ships in 2-12 days

0

9

Snapper 7040527

BRACKET, Mounting

Note: Use on Front Tine Tiller Only!

$

$

Currently unavailable

10

Snapper 7013460

PIN, Clevis, 3/8 x 1 1/2"

Note: Use on Front Tine Tiller Only!

$

$

Not available

11

Snapper 7013111

PIN, Clevis, 1/2 x 1"
(Superseded to 7013111YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091596

PIN, Hair 2.62"
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 1931352

BOLT, 3/8-16 x 1 1/2" Carriage
(Superseded to 1931352SM)

Note: Was 90497

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 1921176

SETSCREW, 1/2-13 x 1 1/4" Square Head
(Superseded to 1921176SM)

Note: Was 90542

$4.99

$

In Stock, only 1 left!

0

18

Snapper 7090326

NUT, 1/2-13 Square

$

$

Currently unavailable

19

Snapper 7090543

SCREW, 1/2-13 x 2" Hex Head Cap
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 7090254

WASHER, 1/2 Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

22

Snapper 7091540

SCREW, 5/16-18 x 1 1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

23

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

26

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

--

Snapper 7060750

(NLA) HILLER FURROWER UPDATE

Note: Was 60750, Consists of items 8, 9, 10, 12, 16, 23, 26 and 27.

$

$

Currently unavailable
