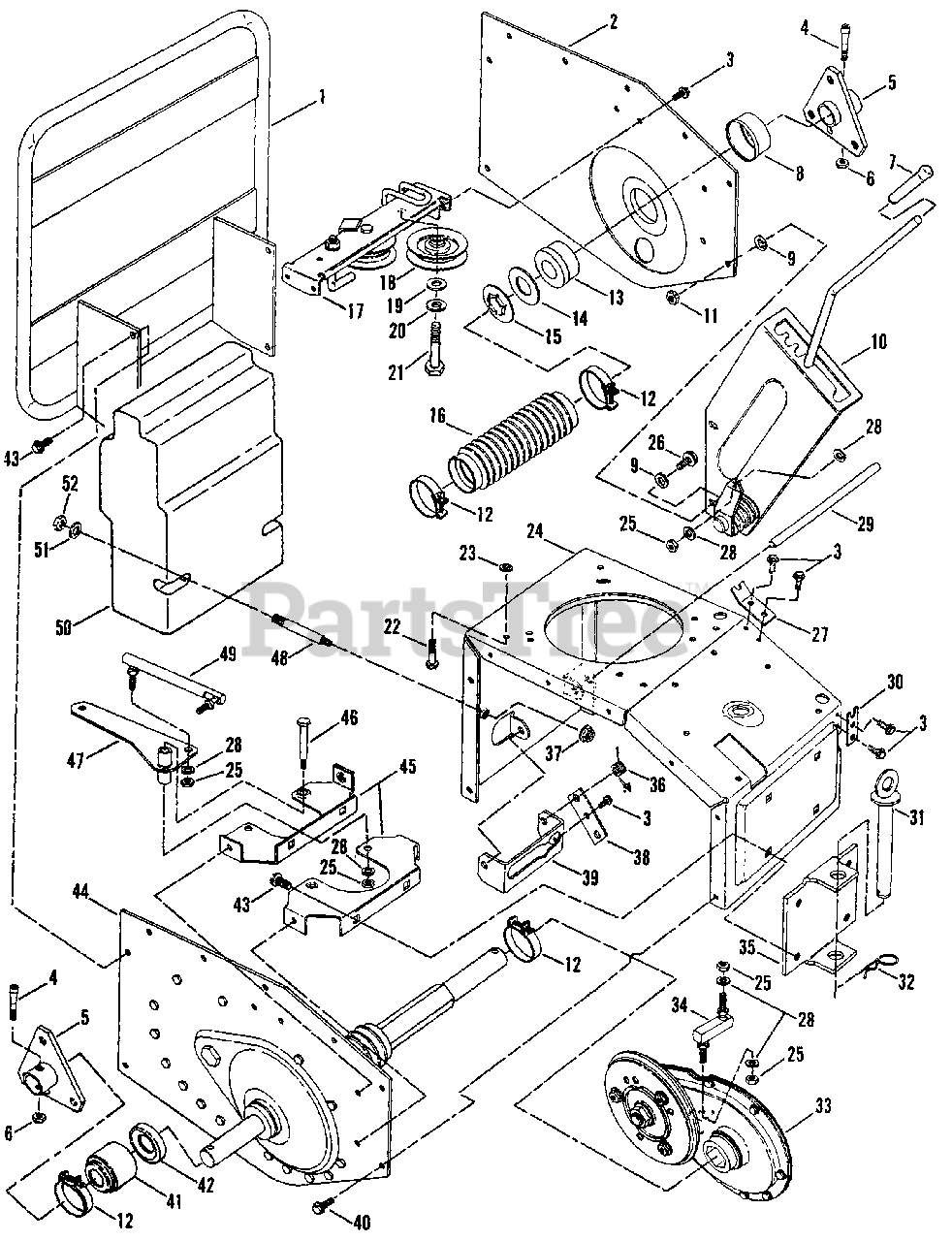

R8002S (85237) - Snapper Rear-Tine Tiller, 8hp Frame (8HP), Traction Drive Parts Diagram

Rear-Tine Tiller, 8hp

Frame (8HP), Traction Drive Parts Diagram

  • Title

1

Snapper 7049751

BAR, Stand-Up

Note: Was 49705

$

$

Currently unavailable

2

Snapper 7035020

FRAME, Right Side
(Superseded to 7035020YP)

$78.99

$

Usually ships in 2-12 days

0

3

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tapping
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

4

Snapper 7011035

BOLT, 5/16-24 x 1 5/8" Tapered
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7040434

HUB, Wheel, 3 Hole 3/4" ID 1.38" Long Tube
(Superseded to 7040434YP)

$

$

Not available

6

Snapper 7092062

NUT, 5/16-24 Special Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7010838

GRIP
(Superseded to 7010838YP)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper 7014658

CAP, Seal L.H. 3/4"
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

9

Snapper 7090189

WASHER, 5/16 Internal/External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 1 left!

0

10

ASSEMBLY, Shift Quadrant

Note: (See "Shift Quadrant" Group)

$

$

Not available

11

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

12

Snapper 7011037

CLAMP, 1-7/8"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

13

Snapper 7010989

BEARING, Axle .76" ID x 1.626"/1.75" OD x 1.75" Long

Note: Was 70295

$

$

Not available

14

Snapper 7011071

WASHER, Thrust (Nylon)
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7014673

WASHER, Thrust
(Superseded to 7014673YP)

$3.99

$

In Stock, only 1 left!

0

16

Snapper 7075115

SEAL, Long
(Superseded to 7075115YP)

Note: Was 18570

$10.99

$

In Stock, Qty 20+

0

17

ASSEMBLY, Idler Bracket

Note: (See "Idler Bracket Assembly" Group)

$

$

Not available

18

Snapper 7014208

PULLEY, V-Idler 2.62" OD
(Superseded to 7014208YP)

$18.99

$

In Stock, Qty 5

0

19

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

21

Snapper 7091497

SCREW, 3/8-16 x 1 1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

22

Snapper 7090700

BOLT, 5/16-18 x 1 1/2" Hex Head Cap (Engine Mounting)
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

23

Snapper 7011791

RETAINER, Bolt 5/16"
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7035102

FRAME
(Superseded to 7035102YP)

$112.99

$

Usually ships in 2-12 days

0

25

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091841

SCREW, 5/16-18 x 1" Self-Tapping
(Superseded to 7091841SM)

Note: Was 90369

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7032274

(NLA) CLIP, Cable

Note: Was 32274

$

$

Currently unavailable

28

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7021873

(NLA) ROD

Note: Was 21873

$

$

Currently unavailable

30

Snapper 7032273

(NLA) CLIP, Control

Note: Was 32273

$

$

Currently unavailable

31

Snapper 7040490

CLEVIS PIN, 3/4 X 6-1/16, ZP (Hitch)

$

$

Currently unavailable

32

Snapper 7011714

HAIR PIN, 2.25, .093 ZP
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7051379

ASSEMBLY, Primary Chain Case

Note: (See "Primary Chain Case" Illustration & Parts List)

$

$

Not available

34

Snapper 7014337

LINK, Short Shift 1"
(Superseded to 7014337YP)

$

$

Not available

35

Snapper 7038065

CLEVIS
(Superseded to 7038065YP)

$32.99

$

Usually ships in 2-12 days

0

36

Snapper 7014371

(NLA) SPRING

Note: Was 14371

$

$

Currently unavailable

37

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

38

Snapper 7032261

(NLA) LEVER

Note: Was 32261

$

$

Currently unavailable

39

Snapper 7038050

YOKE, Clutch
(Superseded to 7038050YP)

$70.99

$

Usually ships in 2-12 days

0

40

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

41

Snapper 7015238

BOOT
(Superseded to 7015238YP)

$8.49

$

Usually ships in 2-12 days

0

42

Snapper 7014662

SEAL, OIL .750" ID x 1.832" OD
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

43

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

44

Snapper 7059670

(NLA) ASSEMBLY, Left Frame Drive (RT8 & 5X)

Note: Was 59670 (See "Frame Components (Left Side)" Group)

$

$

Currently unavailable

45

Snapper 7038212

BRACE
(Superseded to 7038212YP)

$31.99

$

Usually ships in 2-12 days

0

46

Snapper 7015159

BOLT, 5/16-24 x 3" Shoulder

$

$

Not available

47

Snapper 7040517

BELLCRANK, Shift
(Superseded to 7040517YP)

$92.99

$

Usually ships in 2-12 days

0

48

Snapper 7014979

STUD, Weight

$

$

Not available

49

Snapper 7023676

LINK, Shift 4.5"
(Superseded to 7023676YP)

Note: Was 14346 4.687" Not Available

$34.99

$

In Stock, only 3 left!

0

50

Snapper 7019739

(NLA) WEIGHT

Note: Was 19739 (Approximately 60 pounds)

$

$

Not available

51

Snapper 7090500

WASHER, 7/16 Flat

$2.99

$

In Stock, Qty 7

0

52

Snapper 7090839

NUT, 7/16-14 Hex Lock
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0
