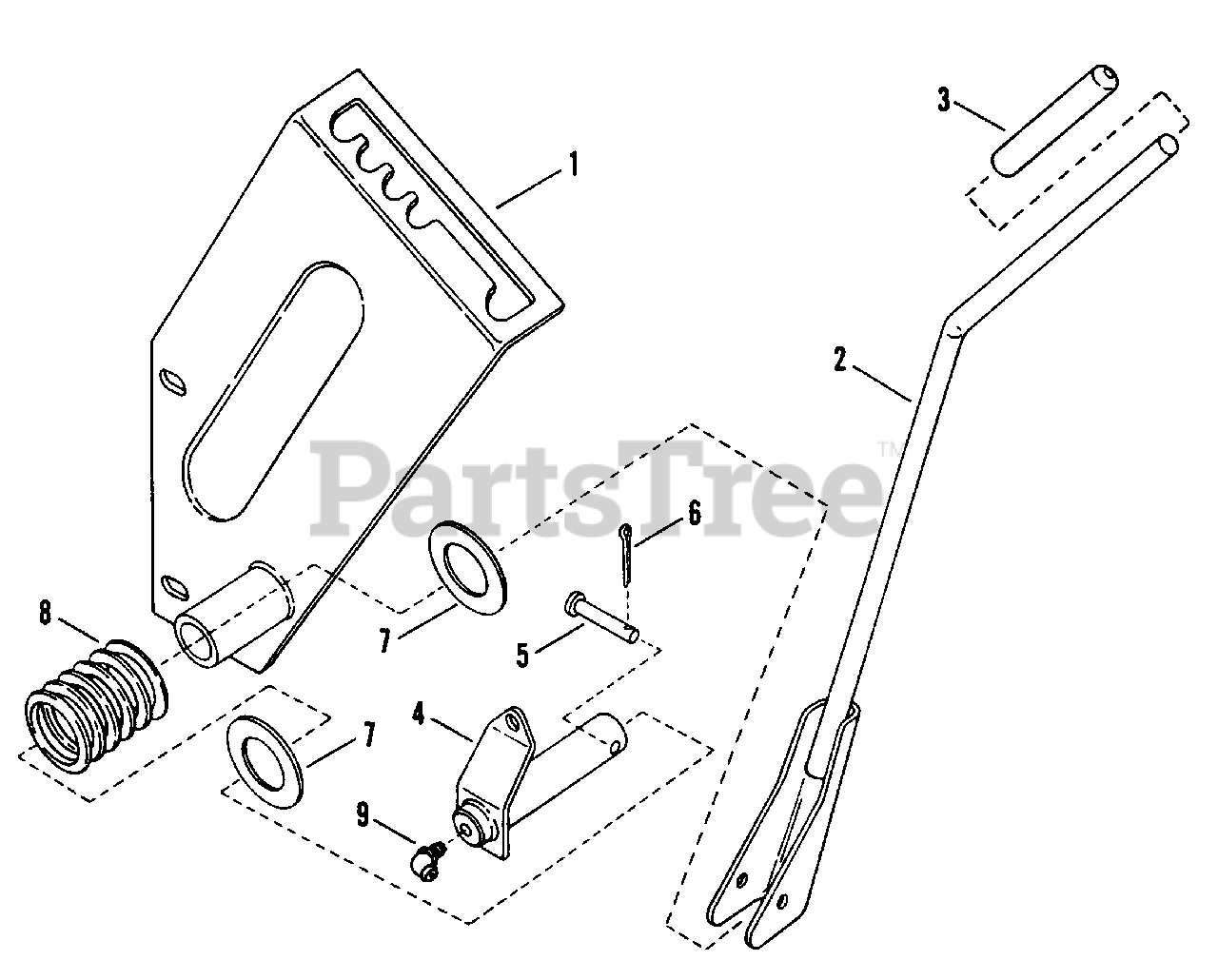

R8001S - Snapper Rear-Tine Tiller, 8hp Shift Quadrant Assembly Parts Diagram

Rear-Tine Tiller, 8hp

Shift Quadrant Assembly Parts Diagram

  • Title
1

Snapper 7047853

WELDMENT, Shift Quadrant
(Superseded to 7047853YP)

$47.99

$

Usually ships in 2-12 days

0

2

Snapper 7040507

HANDLE, Shift
(Superseded to 7040507YP)

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7010838

GRIP, Shift Handle
(Superseded to 7010838YP)

Note: Not part of assembly, order separately

$7.49

$

Usually ships in 2-12 days

0

4

Snapper 7040508

WELDMENT, Structure
(Superseded to 7040508YP)

Note: (Use #40487 on R5000 & R8000)

$38.99

$

Usually ships in 2-12 days

0

5

Snapper 7011021

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

6

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7010754

SPRING, Tension
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 7012758

FITTING, Grease

$

$

Not available

--

Snapper 7057354

(NLA) ASSEMBLY, Shift Quadrant

Note: (Includes Items 1, 2, 4 thru 9)

$

$

Currently unavailable
