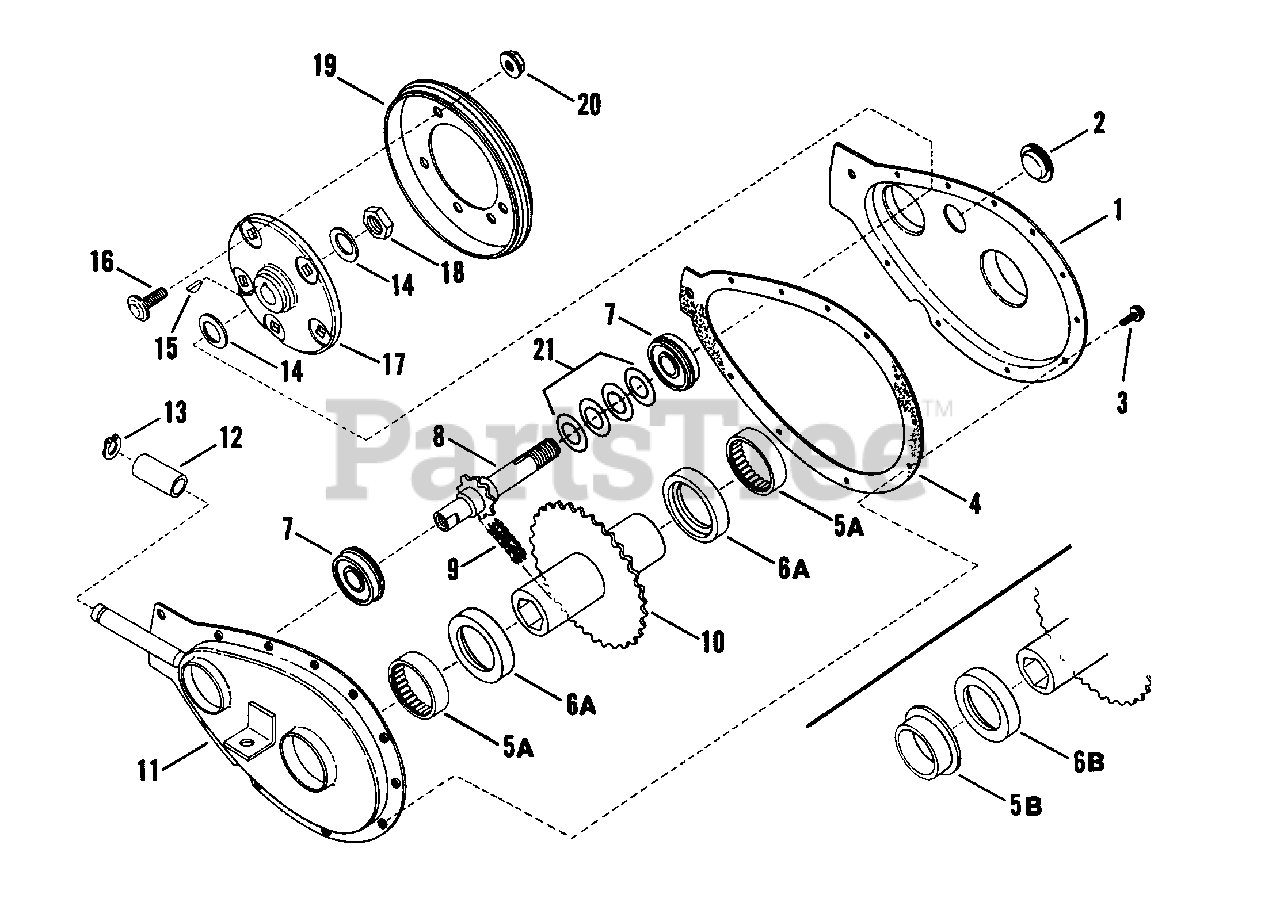

R8001S - Snapper Rear-Tine Tiller, 8hp Primary Chain Case Parts Diagram

Rear-Tine Tiller, 8hp

Primary Chain Case Parts Diagram

  • Title

--

Snapper 7051379

CASE, Primary Chain

Note: (Includes items below)

$

$

Not available

1

Snapper 7039779

COVER

$

$

Not available

2

Snapper 7011024

PLUG, 3/4" Insert
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

3

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

4

Snapper 7028761

GASKET
(Superseded to 7028761YP)

Note: Was 18059

$24.99

$

In Stock, Qty 20+

0

5A

Snapper 7010942

BEARING, Needle 1.355" ID x 1.6245" OD x .5" Wide
(Superseded to 7010942YP)

Note: (Used on models RT5, RT8, RTSS)

$13.99

$

In Stock, Qty 20+

0

5B

Snapper 7013881

BUSHING
(Superseded to 7013881YP)

Note: (Used on models R5000, R8000)

$

$

Not available

6A

Snapper 7011086

WASHER, Thrust
(Superseded to 7011086YP)

Note: (Used on models RT5, RT8, RT8S)

$4.49

$

In Stock, Qty 12

0

6B

Snapper 7013882

WASHER, Thrust
(Superseded to 7011086YP)

Note: (Used on models R5000, R8000)

$4.49

$

In Stock, Qty 12

0

7

Snapper 7010756

BEARING, Ball 5/8" ID x 1-3/8" OD
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

8

Snapper 7010940

SPROCKET, Shaft
(Superseded to 7010940YP)

$93.99

$

Usually ships in 2-12 days

0

9

Snapper 7010941

CHAIN, 46 Pitch (#35 Endless)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

10

Snapper 7040355

HUB, Sprocket
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

11

Snapper 7047811

CASE, Sprocket
(Superseded to 7047811YP)

$61.99

$

Usually ships in 2-12 days

0

12

Snapper 7020908

ROLLER
(Superseded to 7020908YP)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7010776

RING, Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7010614

KEY,1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

17

Snapper 7020911

HUB
(Superseded to 7020911YP)

$73.99

$

Usually ships in 2-12 days

0

18

Snapper 7090356

NUT, 5/8-18 Hex Jam Center Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7010765

DISC, Driven (R/B 7018782)
(Superseded to 7018782SM)

$

$

Not available

20

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (Was P/N 12625)

$5.49

$

In Stock, Qty 20+

0

21

Snapper 7010690

WASHER, Shim
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0
