R8001S - Snapper Rear-Tine Tiller, 8hp 7060606 Dozer Blade Kit Parts Diagram

Rear-Tine Tiller, 8hp

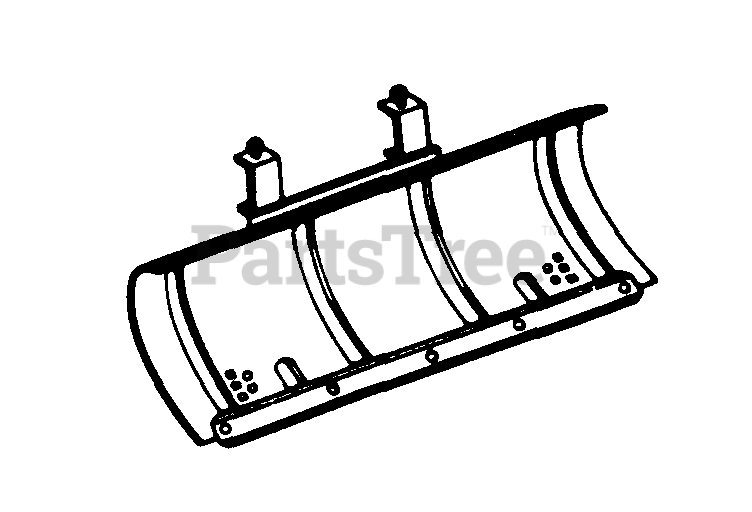

7060606 Dozer Blade Kit Parts Diagram

  • Title

1

Snapper 7049947

WELDMENT, Bracket

$

$

Currently unavailable

2

Snapper 7057391

ASSEMBLY, Snow Blade

$

$

Currently unavailable

3

Snapper 7090017

SCREW, 1/2-20 x 2-3/4" Hex Head Cap
(Superseded to 7090017YP)

Note: Part of 60612 Hardware Bag.

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7031002

PIN
(Superseded to 7031002YP)

Note: Part of 60612 Hardware Bag.

$20.99

$

Usually ships in 2-12 days

0

5

Snapper 7090266

NUT, 1/2-20 Hex Center Lock
(Superseded to 7090266YP)

Note: Part of 60612 Hardware Bag.

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 90143 (Part of 60612 Hardware Bag.)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: Part of 60612 Hardware Bag.

$3.49

$

In Stock, Qty 16

0

8

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130 (Part of 60612 Hardware Bag.)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7032352

PIN, Tiller Blade

Note: Part of 60612 Hardware Bag.

$

$

Currently unavailable

--

Snapper 7060606

Dozer Blade Kit

$

$

Currently unavailable

--

Snapper 7060612

Hardware Bag

$

$

Currently unavailable

--

Snapper 7060572

(NLA) KIT, Clevis and Pin

Note: R5000 series only

$

$

Currently unavailable

--

Snapper 7060567

(NLA) KIT, Hitch Adapter
(Superseded to 7060567YP)

Note: R5000 and R8000 series

$103.99

$

Usually ships in 2-12 days

0
