R8001S - Snapper Rear-Tine Tiller, 8hp 7060559 Hauling Tray Kit Parts Diagram

Rear-Tine Tiller, 8hp

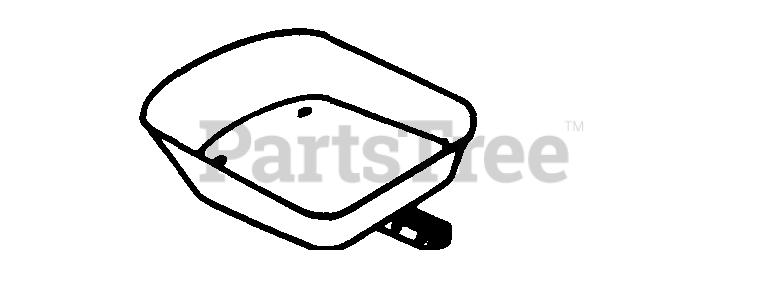

7060559 Hauling Tray Kit Parts Diagram

  • Title

1

Snapper 7013652

DUMP-BARROW

$

$

Currently unavailable

2

Snapper 7013561

DRAW-BAR

$

$

Currently unavailable

3

Snapper 7013654

BRACKET, Mounting

$

$

Currently unavailable

4

Snapper 7018608

GAGE-SHOE (Skid)

$

$

Currently unavailable

5

Snapper 7013952

PIN, Draw

Note: Part of 60583 Hardware Bag.

$

$

Currently unavailable

6

Snapper 7012867

HAIR PIN, 2.56x.125
(Superseded to 7012867YP)

Note: Part of 60583 Hardware Bag.

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7013653

SCREW, 3/8-16 x 3/4" Pan Head Machine

Note: Part of 60583 Hardware Bag.

$

$

Currently unavailable

8

Snapper 7090517

WASHER, 3/8" SAE Flat
(Superseded to 7090517SM)

Note: Was 90600 (Part of 60583 Hardware Bag.)

$4.49

$

In Stock, Qty 8

0

9

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: Part of 60583 Hardware Bag.

$3.49

$

In Stock, Qty 17

0

10

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130 (Part of 60583 Hardware Bag.)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7090618

BOLT, 1/2-13 x 2" Sq Nk, Gr 5

Note: Part of 60583 Hardware Bag.

$

$

Currently unavailable

12

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

Note: Part of 60583 Hardware Bag.

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258 (Part of 60583 Hardware Bag.)

$7.99

$

In Stock, only 1 left!

0

--

Snapper 7060559

(NLA) Hauling Tray Kit (Not shown)

$

$

Currently unavailable

--

Snapper 7060583

(NLA) Hardware Bag (Not shown)

$

$

Currently unavailable

--

Snapper 7060572

(NLA) KIT, Clevis and Pin (Not shown)

Note: R5000 series only

$

$

Currently unavailable

--

Snapper 7060567

KIT, Hitch Adapter (Not shown)
(Superseded to 7060567YP)

Note: R5000 and R8000 series

$103.99

$

Usually ships in 2-12 days

0
