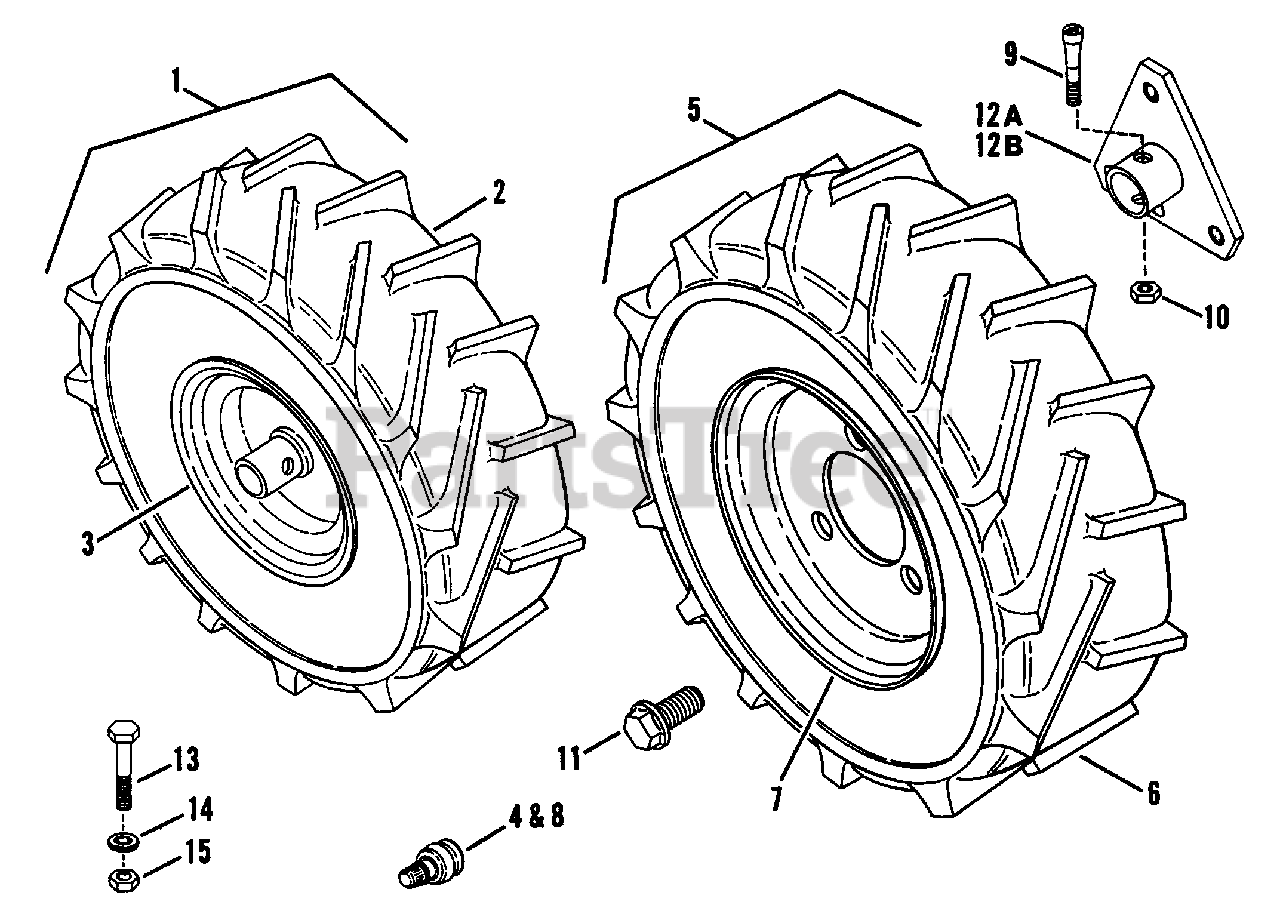

R8001 (81322) - Snapper Rear-Tine Tiller, 8hp Wheels, Tires, Rims Parts Diagram

Rear-Tine Tiller, 8hp

Wheels, Tires, Rims Parts Diagram

  • Title

1

Snapper 7018579

ASSEMBLY, Right Wheel- 5HP

Note: (Incl. Items 2,3 & 4)

$

$

Not available

1

Snapper 7018580

ASSEMBLY, Left Wheel- 5HP
(Superseded to 7018580YP)

Note: (Incl. Items 2,3 & 4)

$158.99

$

Usually ships in 2-12 days

0

2

Snapper 7014511

TIRE, 13x5.00-6 (Lug)

$

$

Not available

3

Snapper 7014512

RIM

$

$

Not available

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7059646

ASSEMBLY, Left Wheel- 8HP

Note: (Incl. Items 6,7 & 8)

$

$

Not available

5

Snapper 7050730

ASSEMBLY, Right Wheel- 8HP
(Superseded to 7050730YP)

Note: (Incl. Items 6,7 & 8)

$179.99

$

Usually ships in 2-12 days

0

6

Snapper 7012256

TIRE, 16x4.80-8 (Lug)

$

$

Currently unavailable

7

Snapper 7017145

RIM
(Superseded to 7017145YP)

Note: Was 12162

$134.99

$

Usually ships in 2-12 days

0

8

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 7011035

BOLT, 5/16-24 Tapered (8HP)
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7092062

NUT, 5/16-24 Hex Lock, Grade C (8HP)
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7091502

SCREW, 1/2-20 x 3/4" Hex Head Cap, Grade 2 (8HP)
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

12A

Snapper 7040434

HUB, Wheel Structure
(Superseded to 7040434YP)

Note: (For models RT8 & RT8S)

$

$

Not available

12B

Snapper 7040484

HUB, Wheel Structure

Note: (For model R8000)

$

$

Not available

13

Snapper 7090244

SCREW, 5/16-24 x 1-5/8" Hex Head Cap, Grade 5 (5HP)
(Superseded to 7091513YP)

Note: Was 90359

$4.49

$

In Stock, Qty 14

0

14

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock (5HP)
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0
