R8001 (81322) - Snapper Rear-Tine Tiller, 8hp 7060564 Middle Buster Kit Parts Diagram

Rear-Tine Tiller, 8hp

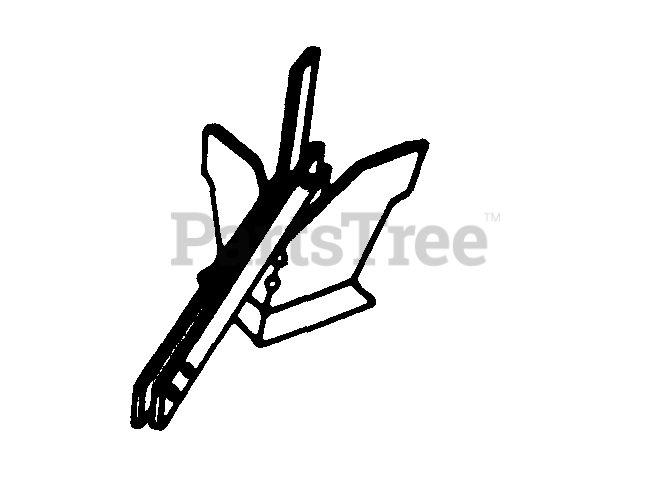

7060564 Middle Buster Kit Parts Diagram

  • Title
1

Snapper 7018622

(NLA) STANDARD

$

$

Currently unavailable

2

Snapper 7013616

(NLA) MIDDLE BUSTER

$

$

Currently unavailable

3

Snapper 7018607

(NLA) DRAW-BAR

$

$

Currently unavailable

4

Snapper 7018608

(NLA) GAGE-SHOE

$

$

Currently unavailable

5

Snapper 7013573

SPACER BUSHING

Note: Part of 60581 Hardware Bag.

$

$

Currently unavailable

6

Snapper 7090497

BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2

Note: Part of 60581 Hardware Bag.

$

$

Not available

7

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: Part of 60581 Hardware Bag.

$3.49

$

In Stock, Qty 15

0

8

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130 (Part of 60581 Hardware Bag.)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7013617

BOLT, 7/16-14 x 3" Plow

Note: Part of 60581 Hardware Bag.

$

$

Currently unavailable

10

Snapper 7013620

WASHER, 15/32" Flat

Note: Part of 60581 Hardware Bag.

$

$

Currently unavailable

11

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

Note: Was 90247 (Part of 60581 Hardware Bag.)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7090449

NUT, 7/16-14 Hex

Note: Part of 60581 Hardware Bag.

$

$

Currently unavailable

13

Snapper 7090618

BOLT, 1/2-13 x 2" Square Neck Carriage, Grade 5

Note: Part of 60581 Hardware Bag.

$

$

Currently unavailable

14

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

Note: Part of 60581 Hardware Bag.

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258 (Part of 60581 Hardware Bag.)

$7.99

$

In Stock, only 1 left!

0

--

Snapper 7060564

(NLA) Middle Buster Kit

$

$

Currently unavailable

--

Snapper 7060581

Hardware Bag

$

$

Currently unavailable

--

Snapper 7060572

(NLA) KIT, Clevis and Pin

Note: R5000 series only

$

$

Currently unavailable

--

Snapper 7060567

(NLA) KIT, Hitch Adapter
(Superseded to 7060567YP)

Note: R5000 and R8000 series

$103.99

$

Usually ships in 2-12 days

0
