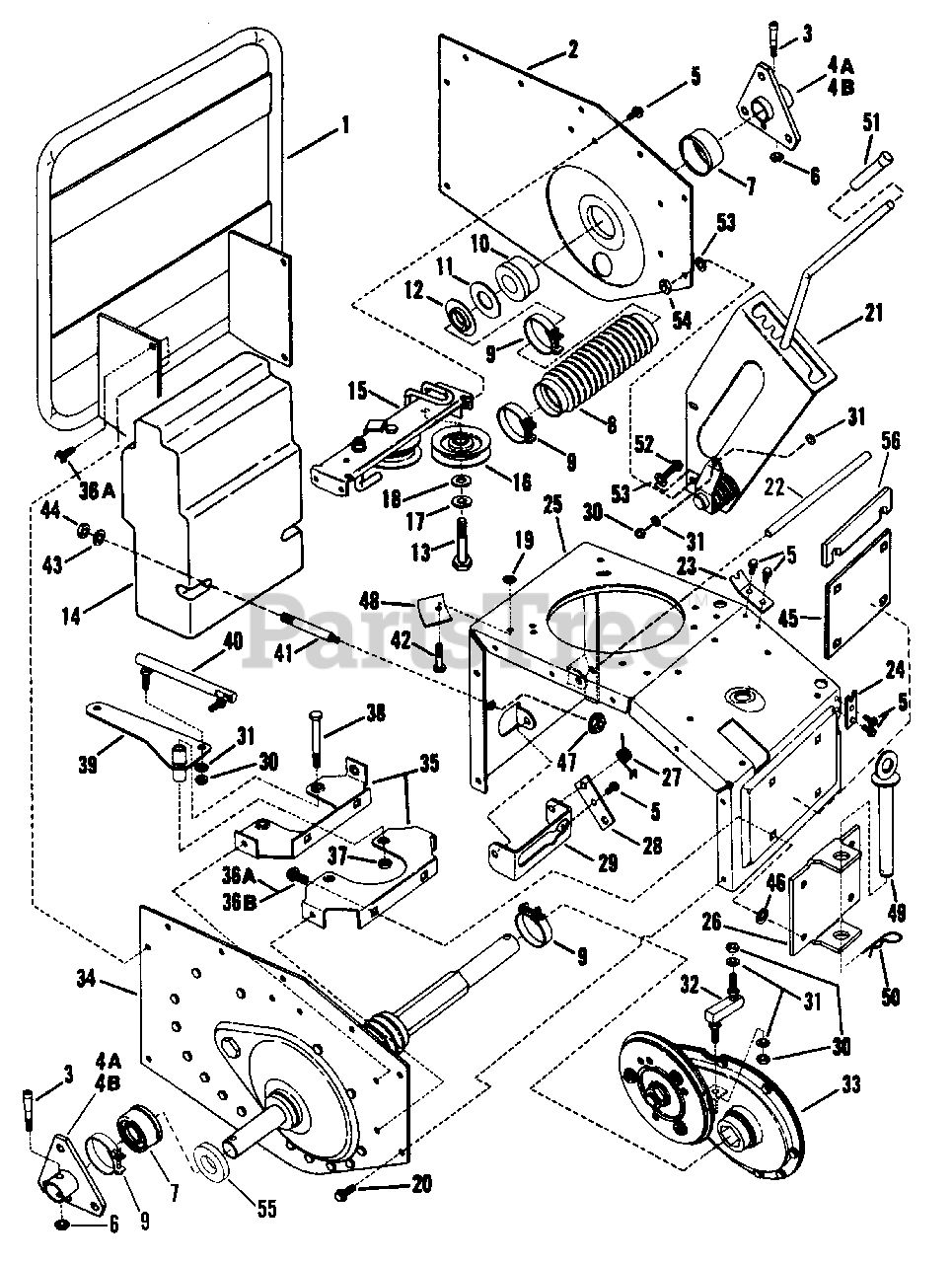

R8001 (81322) - Snapper Rear-Tine Tiller, 8hp 51381 Frame, Traction Drive Components Parts Diagram

Rear-Tine Tiller, 8hp

51381 Frame, Traction Drive Components Parts Diagram

  • Title

1

Snapper 7049751

BAR, Stand Up

Note: Was 49705

$

$

Currently unavailable

2

Snapper 7035020

FRAME, R.H. Side
(Superseded to 7035020YP)

$78.99

$

Usually ships in 2-12 days

0

3

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered
(Superseded to 7011035YP)

Note: (Used only on 8HP)

$4.99

$

In Stock, Qty 20+

0

4A

Snapper 7040434

HUB, Wheel, 3 Hole 3/4" ID 1.38" Long Tube
(Superseded to 7040434YP)

Note: (For models RT8,RT8S)

$

$

Not available

4B

Snapper 7040484

HUB, Wheel, 3 Hole 3/4" ID 2.81" Long Tube

Note: (For model R8000 only)

$

$

Not available

5

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

6

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7015238

CAP, Dust
(Superseded to 7015238YP)

Note: (Was P/N 10967)

$8.49

$

Usually ships in 2-12 days

0

8

Snapper 7075115

SEAL, Long
(Superseded to 7075115YP)

Note: Was 18570

$10.99

$

In Stock, Qty 20+

0

9

Snapper 7011037

CLAMP, 1-7/8 ZP
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

10

Snapper 7010989

BEARING, Axle .75" ID x 1.626"/1.75" OD x 1.75" Long

$

$

Not available

11

Snapper 7011071

WASHER, Thrust Nylon
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7014673

WASHER, Thrust
(Superseded to 7014673YP)

$3.99

$

In Stock, only 1 left!

0

13

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7019739

WEIGHT (approximately 60 pounds)

$

$

Not available

15

Snapper 7057376

ASSEMBLY, Idler Bracket

Note: (See "Idler Bracket Assembly" illustration and parts list). (Was P/N 57351)

$

$

Currently unavailable

16

Snapper 7014208

PULLEY, V-Idler 2.62" OD
(Superseded to 7014208YP)

$18.99

$

In Stock, Qty 5

0

17

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 7057354

(NLA) ASSEMBLY, Shift Quadrant

Note: (See "Shift Quadrant Assembly" illustration and parts list)

$

$

Currently unavailable

22

Snapper 7021873

(NLA) ROD

$

$

Currently unavailable

23

Snapper 7032274

(NLA) CLIP, Cable

$

$

Currently unavailable

24

Snapper 7032273

(NLA) CLIP, Control

$

$

Currently unavailable

25

Snapper 7035102

FRAME
(Superseded to 7035102YP)

Note: Was 35019

$112.99

$

Usually ships in 2-12 days

0

26

Snapper 7038065

CLEVIS
(Superseded to 7038065YP)

Note: (Used only on 8HP)

$32.99

$

Usually ships in 2-12 days

0

27

Snapper 7014371

(NLA) SPRING

Note: N/A DPNI

$

$

Currently unavailable

28

Snapper 7032261

(NLA) LEVER

$

$

Currently unavailable

29

Snapper 7038050

YOKE, Clutch
(Superseded to 7038050YP)

$70.99

$

Usually ships in 2-12 days

0

30

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7014337

LINK, Short Shift 1"
(Superseded to 7014337YP)

$

$

Not available

33

Snapper 7051379

ASSEMBLY, Primary Chain Case

Note: (See "Primary Chain Case" illustration and parts list)

$

$

Not available

34

Snapper 7059670

ASSEMBLY, Drive L.H. Frame

Note: (See "59670: Left Frame Components" illustration and parts list)

$

$

Currently unavailable

35

Snapper 7038212

BRACE
(Superseded to 7038212YP)

Note: Was 38101 (Now 38212 + 15159)

$31.99

$

Usually ships in 2-12 days

0

36A

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tap
(Superseded to 704000)

Note: (4HP & 8HP). (Was P/N 90815)

$4.99

$

Usually ships in 2-12 days

0

36B

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage
(Superseded to 703814)

Note: Was 90747 (5HP). (Was P/N 90136)

$4.49

$

In Stock, only 4 left!

0

37

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

38

Snapper 7015159

BOLT, 5/16-24 x 2-5/8 Shoulder

Note: Was 90174

$

$

Not available

39

Snapper 7040517

BELLCRANK, Shift
(Superseded to 7040517YP)

Note: (Was P/N 40468)

$92.99

$

Usually ships in 2-12 days

0

40

Snapper 7023676

LINK, Long Shift 4.5"
(Superseded to 7023676YP)

Note: Was 14346 4.6" long

$34.99

$

In Stock, only 3 left!

0

41

Snapper 7014979

STUD, Weight

Note: (Was P/N 14392)

$

$

Not available

42

Snapper 7091609

SCREW, 5/16-24 x 1-1/2" Hex Head Cap, Grade 2
(Superseded to 7091609SM)

Note: Was 90242

$4.99

$

Usually ships in 2-12 days

0

43

Snapper 7090500

WASHER, 7/16" SAE Flat

$2.99

$

In Stock, Qty 7

0

44

Snapper 7090839

NUT, 7/16-14 Hex Center Lock, Grade A
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0

45

Snapper 7032428

(NLA) SPACER, Tiller Head

Note: (5HP)

$

$

Currently unavailable

46

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

Note: (5HP only)

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (Was P/N 12625)

$5.49

$

In Stock, Qty 20+

0

48

Snapper 7032314

(NLA) WASHER, Engine

Note: (used on 5HP only)

$

$

Currently unavailable

49

Snapper 7040490

PIN, Clevis (Hitch) 34" x 6 1/16"

Note: (8HP)

$

$

Currently unavailable

50

Snapper 7011714

HAIR PIN, 2.25, .093 ZP
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

51

Snapper 7010838

GRIP
(Superseded to 7010838YP)

$7.49

$

Usually ships in 2-12 days

0

52

Snapper 7090369

SCREW, 5/16-18 x 1" Hex Washer Self-Tap
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

53

Snapper 7090189

WASHER, 5/16" Internal/External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

54

Snapper 7091575

NUT, 5/16" Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 18

0

55

Snapper 7014662

SEAL, OIL .750" ID x 1.832" OD
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

56

Snapper 7032471

(NLA) SPACER, Tiller Head

$

$

Currently unavailable
