R61 (5900632) - Ferris 61" Side-Discharge Mower Deck 61" Mower Deck - Pulleys, Belt and Idler Arm Parts Diagram

61" Side-Discharge Mower Deck

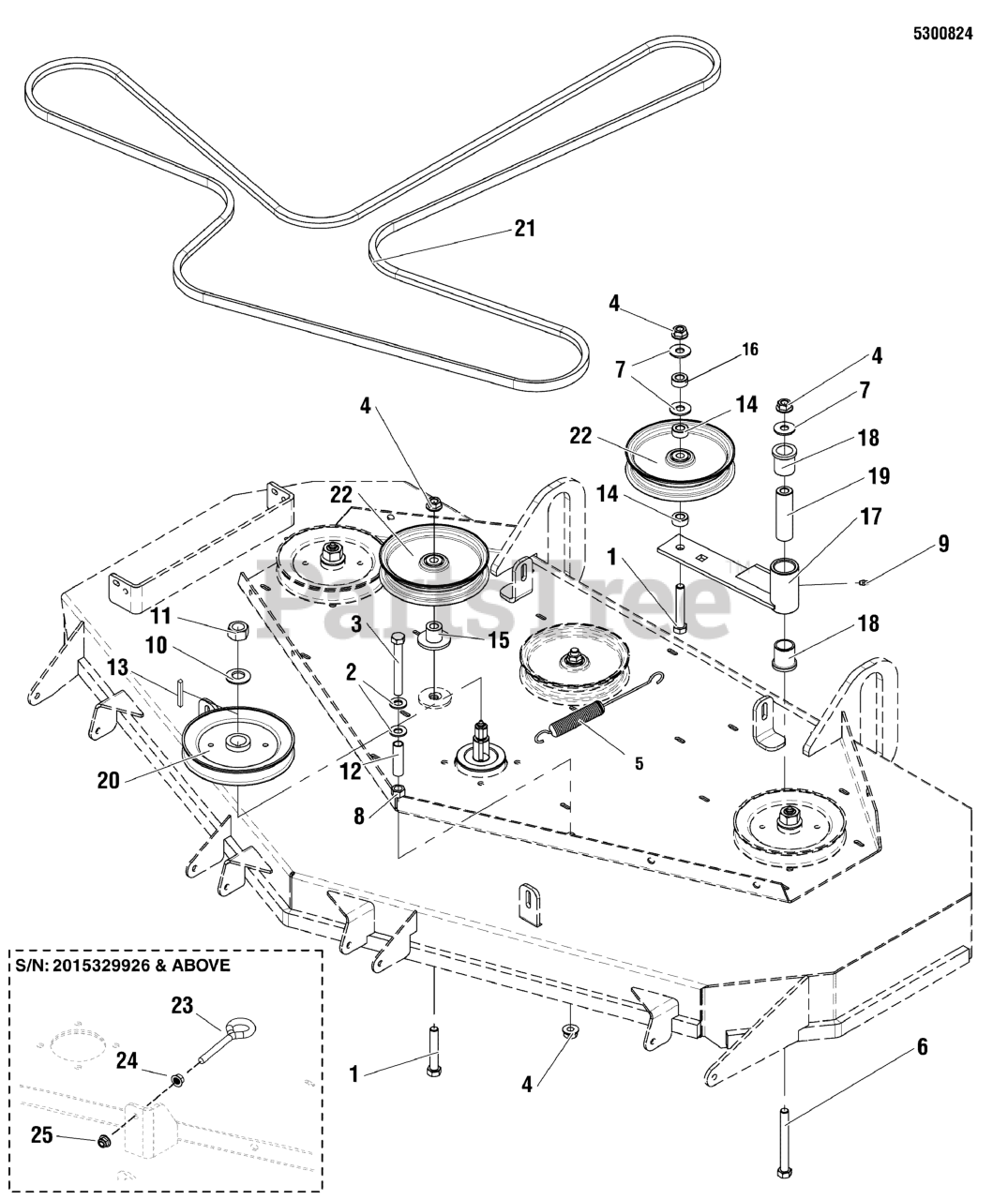

61" Mower Deck - Pulleys, Belt and Idler Arm Parts Diagram

  • Title

1

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

2

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2015329925 & Below)

$3.99

$

In Stock, Qty 12

0

3

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

Note: (S/N: 2015329925 & Below)

$6.49

$

In Stock, only 4 left!

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (S/N: 2015329925 & Below)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5100632

SPRING, EXTENSION, SWIVEL. LONG HOOK
(Superseded to 5100632YP)

$38.99

$

Usually ships in 2-12 days

0

6

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

7

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

8

Ferris 5025308

NUT, 1/2-13 HEX

Note: (S/N: 2015329925 & Below)

$

$

Currently unavailable

9

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5050857X2P25

HOSE, 1/2" PUSH-ON 2.25"
(Superseded to 5050857X2P25FS)

Note: (S/N: 2015329925 & Below)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

14

Ferris 5101162

SPACER, .52 X 1.00 X .56, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, Qty 8

0

15

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

16

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

17

Ferris 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes Bushings & grease fittings.)

$113.99

$

Usually ships in 2-12 days

0

18

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

19

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

20

Ferris 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$74.99

$

Usually ships in 2-12 days

0

21

Ferris 5103868

BELT, 5V, 169.37"EL, ARAMID WRPD RC
(Superseded to 84003642)

$130.99

$

Usually ships in 2-12 days

0

22

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

23

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

Note: (S/N: 2015329926 & Above)

$9.49

$

In Stock, only 1 left!

0

24

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

Note: (S/N: 2015329926 & Above)

$3.49

$

In Stock, only 2 left!

0

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (S/N: 2015329926 & Above)

$4.49

$

In Stock, Qty 20+

0
