R61 (5900632) - Ferris 61" Side-Discharge Mower Deck 61" Mower Deck - Hanger Chains Parts Diagram

61" Side-Discharge Mower Deck

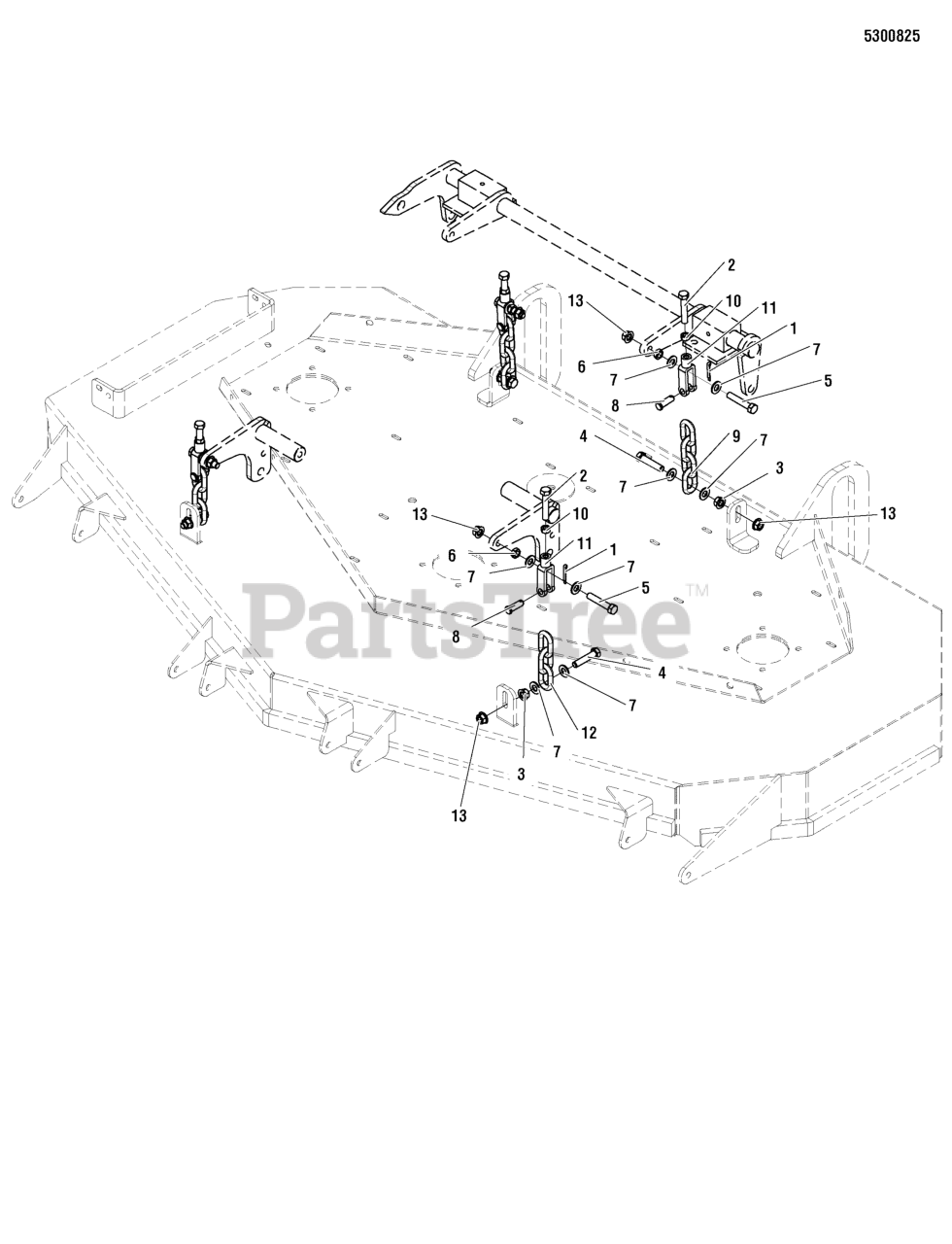

61" Mower Deck - Hanger Chains Parts Diagram

  • Title
1

Ferris 5025203X6

PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 2 left!

0

2

Ferris 5025055X16

BOLT, 5/16-18 X 2" GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

4

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

6

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025214X9

PIN, CLEVIS, 3/8" X 1-1/8"
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5050878X4

CHAIN, 5/16" GD30, 4 LINKS
(Superseded to 5050878X4YP)

$9.99

$

Usually ships in 2-12 days

0

10

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5100375

CLEVIS, 5/16-18, 3/8" PIN HOLE
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

12

Ferris 5050878X3

CHAIN, 5/16" GD30, 3 LINKS
(Superseded to 5050878X3SM)

$8.49

$

In Stock, only 2 left!

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
