R61 (5900632) - Ferris 61" Side-Discharge Mower Deck 61" Mower Deck - Deck Lift Parts Diagram

61" Side-Discharge Mower Deck

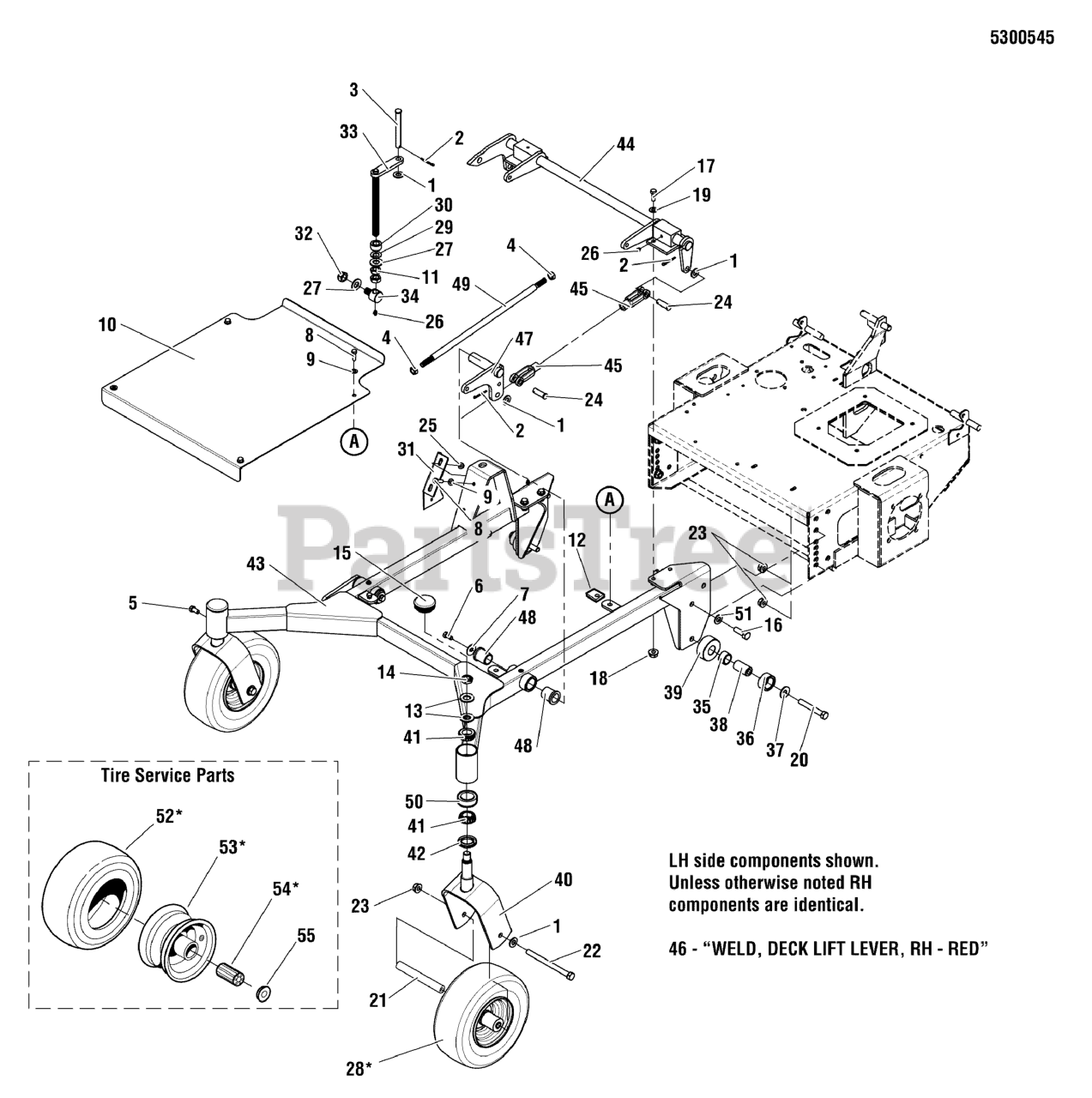

61" Mower Deck - Deck Lift Parts Diagram

  • Title
1

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

2

Ferris 5025203X6

* PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

3

Ferris 5025456

PIN CLEVIS 1/2" X 4-1/2" PLT
(Superseded to 5025456FS)

$7.49

$

Usually ships in 2-12 days

0

4

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5402268B

GUARD, DECK, 61", MIDDLE, TWR - RED
(Superseded to 5402268BFS)

$142.99

$

Usually ships in 2-12 days

0

11

Ferris 5025454

NUT, 5/8-18, HEX JAM
(Superseded to 5025454SM)

$3.49

$

In Stock, Qty 5

0

12

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

16

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

18

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

21

Ferris 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 20+

0

22

Ferris 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

23

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

24

Ferris 5025479

CLEVIS PIN, 1/2 X 1.36 SAE STANDARD
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

25

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

27

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

28a

Ferris 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

Note: (S/N: 2013131013 & Above)

$127.99

$

In Stock, Qty 11

0

28b

USE 5101418 - WHEEL, CASTER, 11 X 4 - 5 SILVER, BEAD LOCK (Max PSI: 25)

Note: (S/N: 2013131012 & Below) (Replacement Wheel for 5101418 is 5101418X2)

$

$

Not available

29

Ferris 5100823

WASHER, THRUST, .63 X 1.13 X .06
(Superseded to 5100823FS)

$6.99

$

Usually ships in 2-12 days

0

30

Ferris 5100836

SPACER, .64 X 1.13 X .63, CZ
(Superseded to 5100836YP)

$10.99

$

Usually ships in 2-12 days

0

31

Ferris 5402370B

PLATE, HEIGHT INDICATOR - RED
(Superseded to 5402370BFS)

$13.99

$

Usually ships in 2-12 days

0

32

Ferris 5025282

NUT, Hex Jam, Nylon Lock, 5/8-11
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

33

Ferris 5100825

HANDLE, CRANK, TWR
(Superseded to 5100825FS)

$44.99

$

Usually ships in 2-12 days

0

34

Ferris 5100803

PIVOT, DECK LIFT
(Superseded to 5100803YP)

$31.99

$

Usually ships in 2-12 days

0

35

Ferris 5100809

BUSHING, SLEEVE, 1.00 X 1.25 X .75
(Superseded to 5100809FS)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5100826

ROLLER, 1.256 X 1.75 X .813
(Superseded to 5100826FS)

$20.99

$

Usually ships in 2-12 days

0

37

Ferris 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

38

Ferris 5100689

SPACER, .52 X 1.00 X 1.88 - SS
(Superseded to 5100689FS)

$37.99

$

In Stock, only 1 left!

0

39

Ferris 5100646

GUIDE, DECK - TWR
(Superseded to 5100646FS)

$43.99

$

Usually ships in 2-12 days

0

40

Ferris 5401759B

WELD., FRONT CASTER YOKES - RED
(Superseded to 5401759BFS)

$201.99

$

Usually ships in 2-12 days

0

41

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

42

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 8

0

43

Ferris 5401755B

WELD, DECK MOUNT FRAME - RED
(Superseded to 5401755BFS)

$1078.99

$

Usually ships in 2-12 days

0

44

Ferris 5401754B

WELD, REAR LIFT SHAFT - RED
(Superseded to 5401754BFS)

$302.99

$

Usually ships in 2-12 days

0

45

Ferris 5023174

CLEVIS, 1/2-20, STEEL, CLEAR ZINC
(Superseded to 5023174SM)

$16.99

$

In Stock, only 1 left!

0

46

Ferris 5402278B

WELD, DECK LIFT LEVER, RH - RED
(Superseded to 5402278BFS)

$78.99

$

Usually ships in 2-12 days

0

47

Ferris 5402277B

WELD, DECK LIFT LEVER, LH - RED
(Superseded to 5402277BFS)

$78.99

$

Usually ships in 2-12 days

0

48

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

49

Ferris 5103758

ROD, DECK LIFT, 19.25, CZ
(Superseded to 5103758YP)

$37.99

$

Usually ships in 2-12 days

0

50

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

51

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

52

Ferris 5022433X1

TIRE, FRONT, 11 X 4.0 - 5 (SV)

$70.99

$

Usually ships in 2-12 days

0

53a

Ferris 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

Note: (SV 5101418 Tire)

$

$

Currently unavailable

53b

Ferris 5022433SX2

WHEEL ASSEMBLY, for 11 x 4.0 x 5 Tires, Complete
(Superseded to 5101418X2YP)

Note: (SV 5022433 Tire)

$84.99

$

In Stock, only 1 left!

0

54a

Ferris 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

Note: (SV 5101418 Tire)

$27.99

$

Usually ships in 2-12 days

0

54b

Ferris 5021042

BEARING, Roller

Note: (SV 5022433 Tire)

$

$

Currently unavailable

55

Ferris 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

$6.99

$

Usually ships in 2-12 days

0
