R5001 - Snapper Rear-Tine Tiller, 5hp 7060563 Disc Hiller Kit Parts Diagram

Rear-Tine Tiller, 5hp

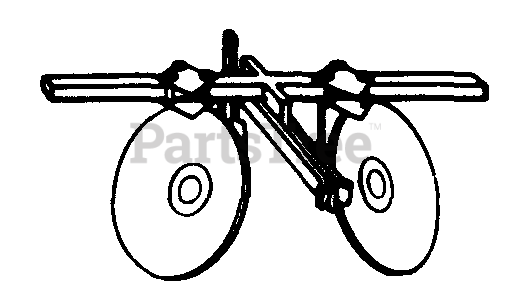

7060563 Disc Hiller Kit Parts Diagram

  • Title

1

Snapper 7051410

(NLA) DISC, Right Side Assembly

$

$

Currently unavailable

2

Snapper 7051409

(NLA) DISC, Left Side Assembly

$

$

Currently unavailable

3

Snapper 7018607

(NLA) DRAW-BAR

$

$

Currently unavailable

4

Snapper 7013604

(NLA) CROSS-BAR

$

$

Currently unavailable

5

Snapper 7018608

(NLA) GAGE-SHOE

$

$

Currently unavailable

6

Snapper 7013636

(NLA) CLAMP-PLATE

$

$

Currently unavailable

7

Snapper 7090618

BOLT, 1/2-13 x 2" Square Neck Carriage, Grade 5

Note: Part of 60584 Hardware Bag.

$

$

Currently unavailable

8

Snapper 7090570

BOLT, 1/2-13 x 2-3/4" Square Neck Carriage, Grade 2

Note: Part of 60584 Hardware Bag.

$

$

Not available

9

Snapper 7090705

WASHER, 1/2" SAE Flat
(Superseded to 703853)

Note: Part of 60584 Hardware Bag.

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

Note: Part of 60584 Hardware Bag.

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258 (Part of 60584 Hardware Bag.)

$7.99

$

In Stock, only 1 left!

0

--

Snapper 7060563

(NLA) Disc Hiller Kit (Not shown)

$

$

Currently unavailable

--

Snapper 7060584

(NLA) Hardware Bag (Not shown)

$

$

Currently unavailable

--

Snapper 7060572

(NLA) KIT, Clevis and Pin

Note: R5000 series only

$

$

Currently unavailable

--

Snapper 7060567

KIT, Hitch Adapter (Not shown)
(Superseded to 7060567YP)

Note: R5000 and R8000 series

$103.99

$

Usually ships in 2-12 days

0
