R5000 (81420) - Snapper Rear-Tine Tiller, 5hp Idler Bracket Assembly Parts Diagram

Rear-Tine Tiller, 5hp

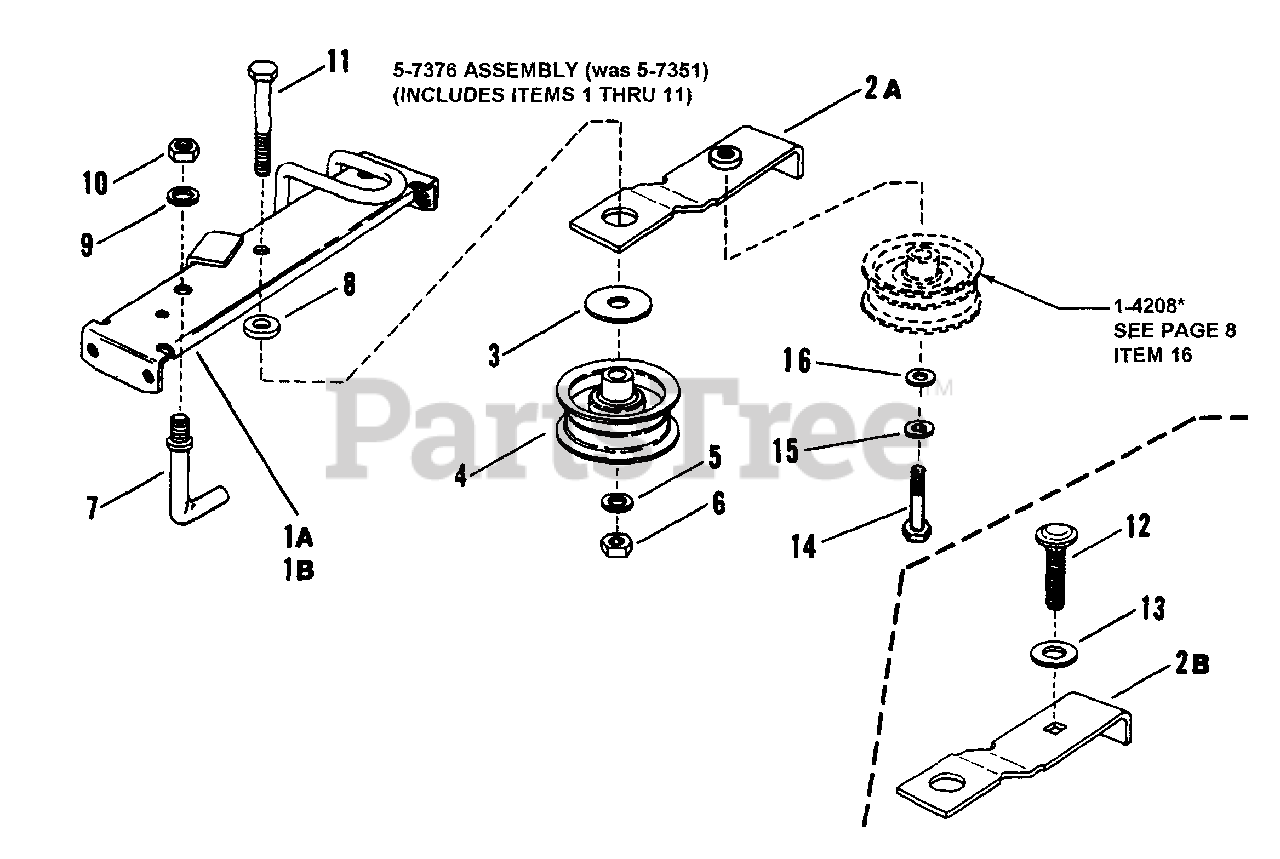

Idler Bracket Assembly Parts Diagram

  • Title

1A

Snapper 7047867

BRACKET, Idler

Note: (Used on models RT5, RT8, RTSS). (Was P/N 38134)

$

$

Currently unavailable

1B

Snapper 7047867

BRACKET, Idler

Note: Was 38049 (Used on models R5000, R8000-Replace items 1B, 2B and 8B on R5000 and R8000 with 57376 assembly)

$

$

Currently unavailable

2A

Snapper 7051464

ARM, Idler

Note: (Used on models RT5, RT8, RT8S)

$

$

Not available

2B

Snapper 7051464

ARM, Idler

Note: Was 32262 (Used on models R5000, R8000-Replace items 1B, 2B and 8B on R5000 and R8000 with 57376 assembly)

$

$

Not available

3

Snapper 7014666

WASHER, 11/32" Flat
(Superseded to 7014666YP)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 7014340

IDLER
(Superseded to 7014340YP)

$19.99

$

In Stock, Qty 6

0

5

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7014454

GUIDE, Belt
(Superseded to 7014454YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7014206

SPACER, .328" ID, .625" OD, .21" Thick

Note: Was 13849, .156" thick (On models R5000, R8000-replace items 1B, 2B and 8B on R5000 and R8000 with 57376 assembly)

$

$

Not available

9

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

10

Snapper 7091630

NUT, 3/8-24 Hex, Grade 2
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7090245

SCREW, 5/16-24 x 2" Hex Head Cap, Grade 2

$

$

Not available

12

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Short Neck Carriage, Grade 2
(Superseded to 7091945YP)

Note: (Used on models R5000, R8000 only)

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7014296

WASHER, 1/2" Shim
(Superseded to 7014296YP)

Note: (Used on models R5000, R8000 only)

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

15

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

--

Snapper 7057376

Assembly (was 5-7351 which had no belt guides)

Note: (Includes Items 1 Thru 11)

$

$

Currently unavailable
