R5-42RC01 - Toro 42" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) SPINDLE & BLADE ASSEMBLY Parts Diagram

42" Recycler Mower Deck

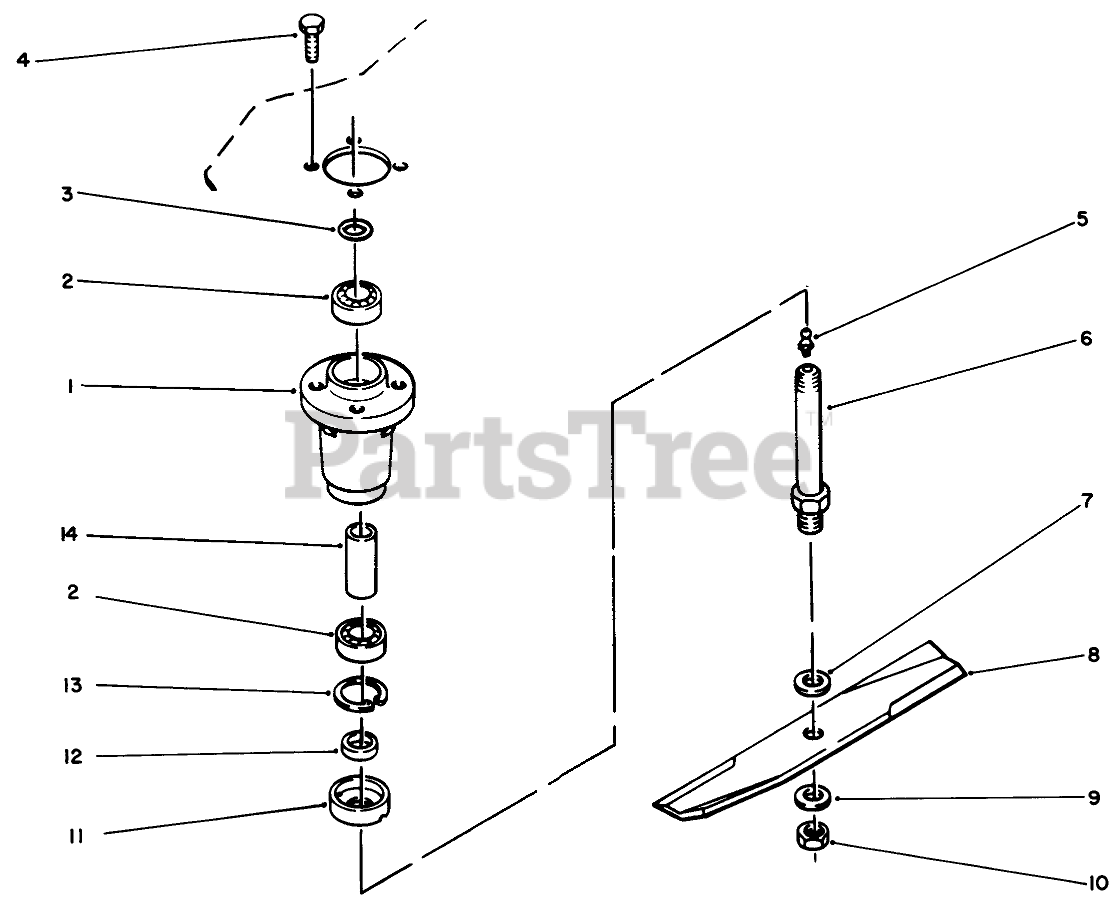

SPINDLE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

2

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

3

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

4

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

5

Toro 1030

Zerk

$

$

Not available

6

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

7

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

8

Toro 14-4879

BLADE KIT (3- 79-2920)

$128.99

$

In Stock, only 2 left!

0

9

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

10

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, only 4 left!

0

11

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

12

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

13

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

14

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

Spindle Assembly (Incl. Ref. #1-14)

$

$

Not available
