R5-42RC01 - Toro 42" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) DECK BELT & PULLEYS Parts Diagram

42" Recycler Mower Deck

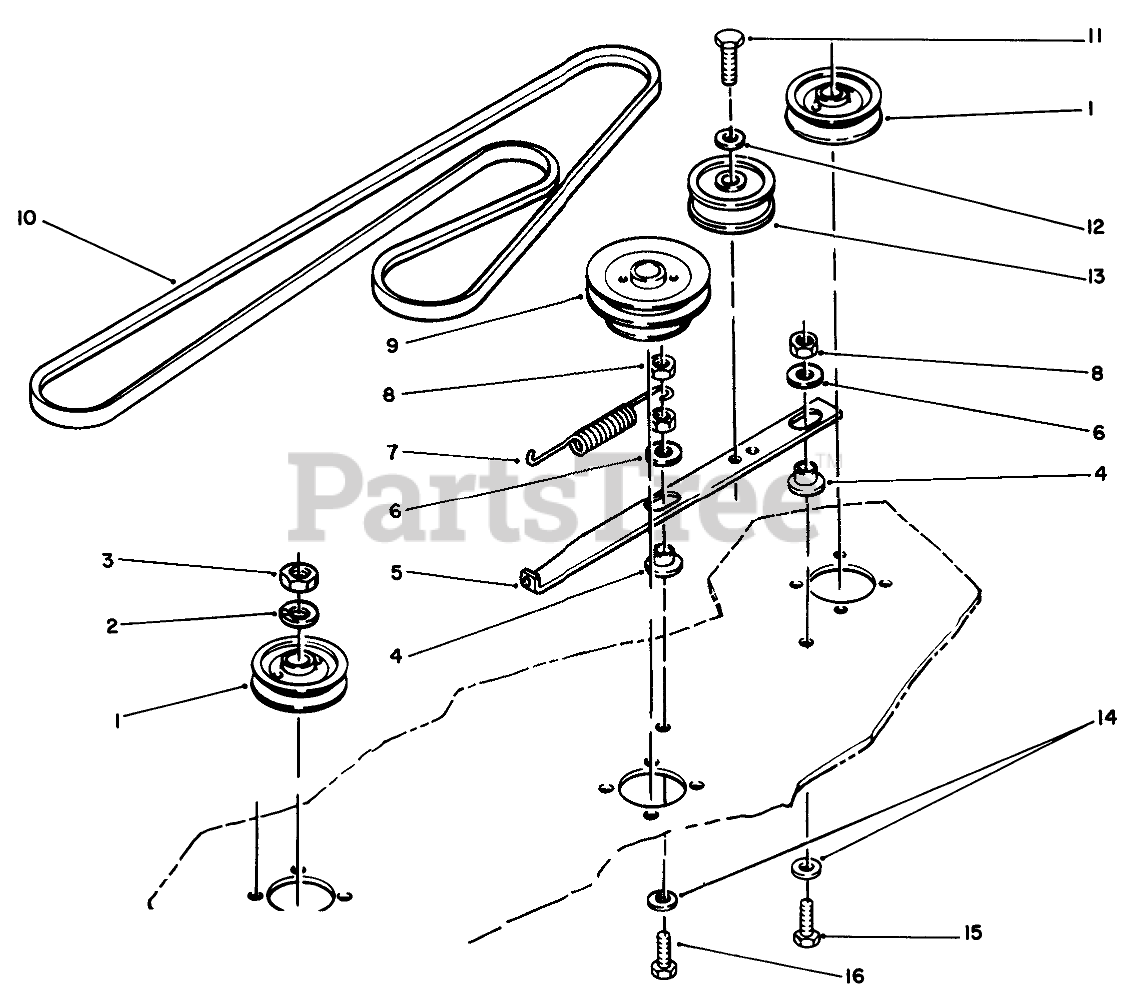

DECK BELT & PULLEYS Parts Diagram

  • Title

1

Toro 109967

PULLEY

$80.99

$

In Stock, only 1 left!

0

2

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

3

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

5

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

6

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

9

Toro 110148

PULLEY

$119.99

$

In Stock, only 1 left!

0

10

Toro 106125

V-BELT

$37.99

$

In Stock, only 4 left!

0

11

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

12

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

13

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

Usually ships in 3-6 days

0

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

15

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

16

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0
