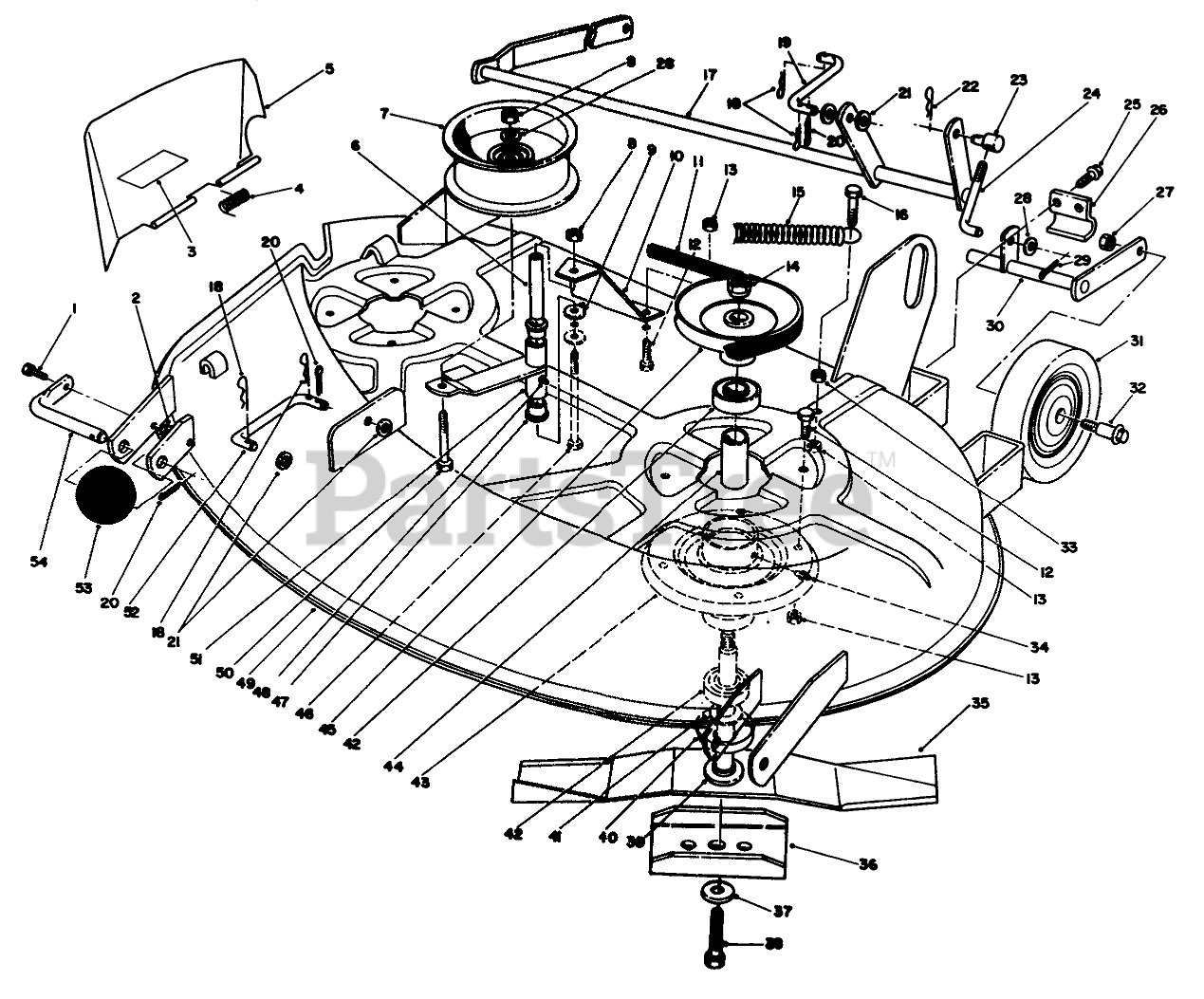

R5-38SS02 - Toro 38" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) CUTTING UNIT ASSEMBLY Parts Diagram

38" Recycler Mower Deck

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

4

Toro 119691

SPRING-TORSION

$

$

Not available

5

Toro 119740

Deflector
(Superseded to 119740-01)

$

$

Not available

6

Toro 109950

SPACER

$19.99

$

Usually ships in 3-6 days

0

7

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$117.99

$

In Stock, only 1 left!

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

10

Toro 78-8091

Brace
(Superseded to 78-8091-01)

$

$

Not available

11

Toro 79-5980

V-BELT

$43.99

$

In Stock, only 1 left!

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

14

Toro 915007

Nut
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 10

0

15

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

16

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 78-8011

Shaft-R.H.
(Superseded to 78-8011-03)

$125.99

$

Usually ships in 3-6 days

0

18

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

19

Toro 78-8071

LINK-REAR

$49.99

$

Usually ships in 3-6 days

0

20

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

21

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

22

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

23

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

24

Toro 121010

ROD-LIFT

$22.99

$

Usually ships in 3-6 days

0

25

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

26

Toro 78-6400

Camp
(Superseded to 78-6400-03)

$9.49

$

Usually ships in 3-6 days

0

27

Toro 33146-2

Nut-Hex

$

$

Currently unavailable

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

30

Toro 78-7991

Shaft-L.H.
(Superseded to 78-7991-01)

$

$

Not available

31

Toro 110506

WHEEL

$37.99

$

Usually ships in 3-6 days

0

32

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

34

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0

35

Toro 14-7799

BLADE KIT

$62.99

$

In Stock, only 3 left!

0

36

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$17.99

$

In Stock, Qty 7

0

37

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

39

Toro 80-4351

SHAFT-SPINDLE

$153.99

$

In Stock, only 1 left!

0

40

Toro 80-4370

SHIELD-BEARING

$14.99

$

In Stock, only 1 left!

0

41

Toro 80-4390

SPACER-HARDNED

$3.99

$

Usually ships in 3-6 days

0

42

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

In Stock, only 3 left!

0

43

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$230.99

$

Usually ships in 3-6 days

0

44

Toro 79-2780

SPACER

$19.99

$

In Stock, only 1 left!

0

45

Toro 78-6042

Pulley-Spindle
(Superseded to 92-7081)

$

$

Not available

46

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

47

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

48

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

49

Toro 79-2170

Deck-Cutting Unit
(Superseded to 92-8015)

$

$

Not available

50

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

51

Toro 78-3370

Arm-Idler
(Superseded to 78-3370-01)

$

$

Not available

52

Toro 78-6701

LINK-FRONT

$

$

Not available

53

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

54

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0
