R4002 (8905-1) - Generac 4,000 Watt Portable Generator Receptacle Panel Parts Diagram

4,000 Watt Portable Generator

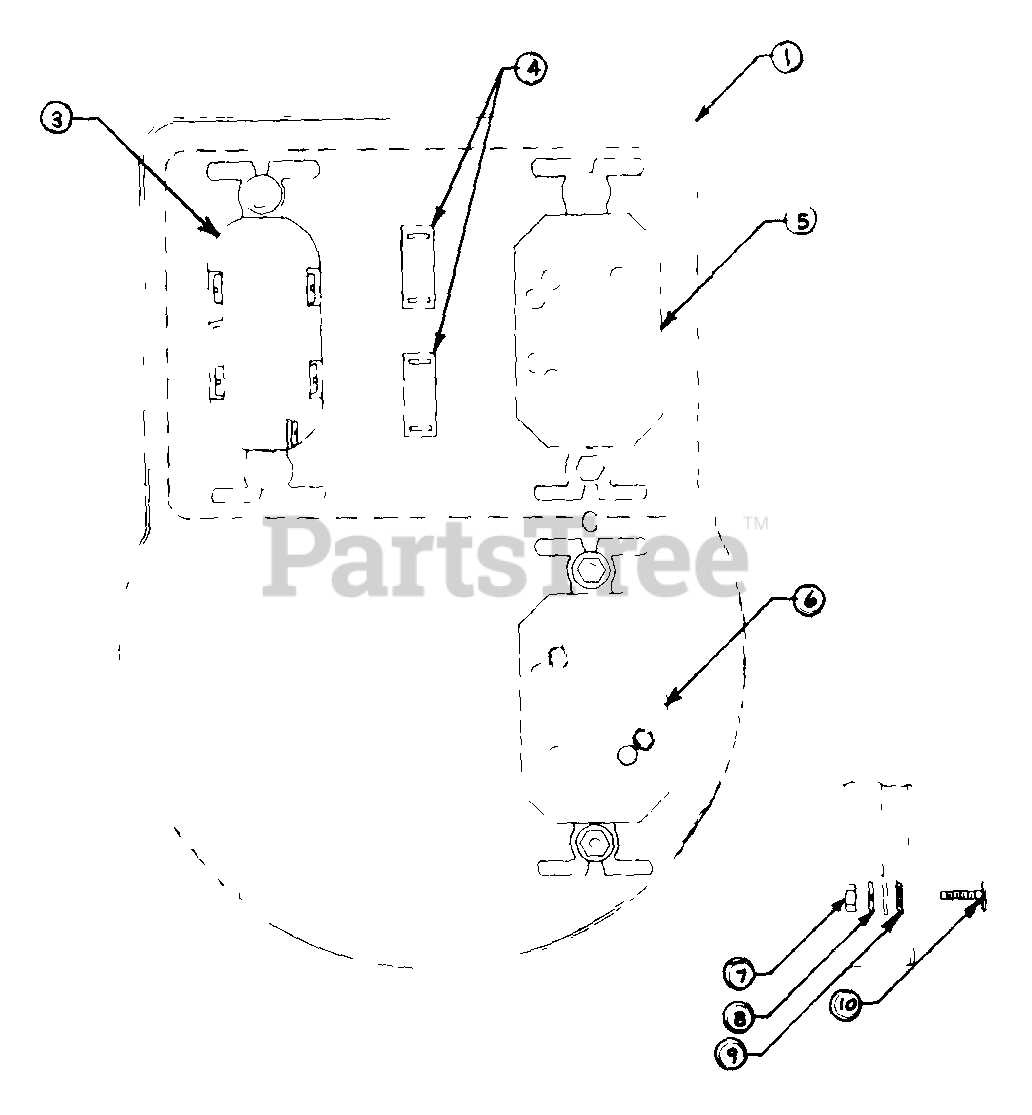

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 69901

PANEL, Receptacle

$

$

Currently unavailable

3

Briggs & Stratton 68759

RECEPTACLE - 120V. Duplex
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 9

0

4

Briggs & Stratton 66819

BREAKER, Circuit - 20 amp

$

$

Currently unavailable

5

Briggs & Stratton 68867

RECEPTACLE - 120/240V.
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868

RECEPTACLE - 120V.
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22264

LOCKWASHER - No. 8

$

$

Not available

9

Briggs & Stratton 23365

LOCKWASHER - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 36917

SCREW, Pan Head Machine No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

PLUG, Connector - 120/240V
(Superseded to 43438GS)

Note: NEMA L14-20P for use with Item 5

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

PLUG, Connector - 120V
(Superseded to 100523GS)

Note: NEMA L5-30P for use with Item 6

$20.99

$

Usually ships in 2-12 days

0
