R4000D (9014-0) - Generac 4,000 Watt Portable Generator Receptacle Panel Parts Diagram

4,000 Watt Portable Generator

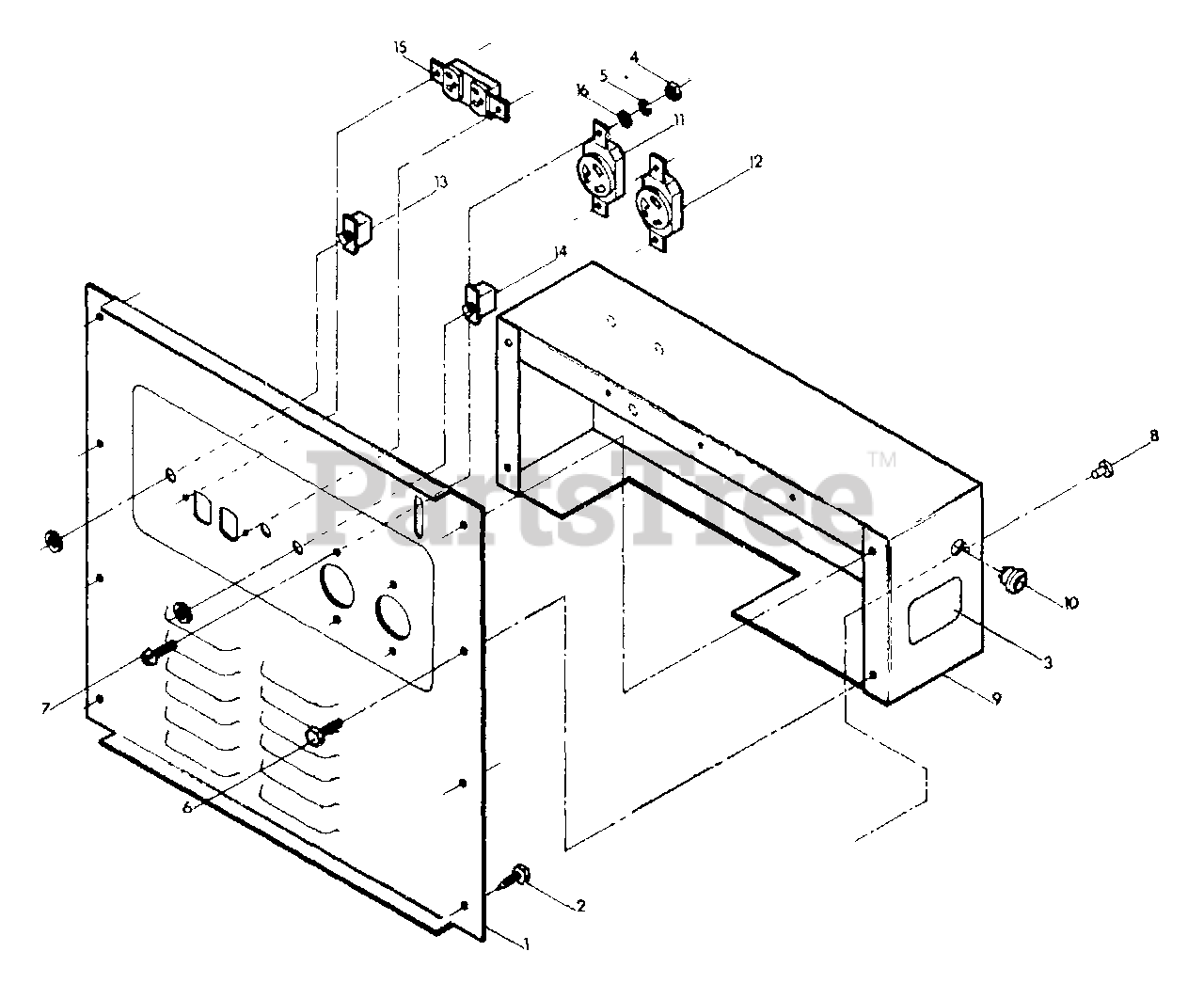

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 73689

PANEL, Receptacle (Silkscreened)

$

$

Currently unavailable

2

Briggs & Stratton 69254

SCREW (Crimptite)- 1/4"-20 x 1/2"

$

$

Currently unavailable

3

Briggs & Stratton 71377

DECAL- Starting Instructions

$

$

Currently unavailable

4

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22264

LOCKWASHER- No. 8

$

$

Not available

6

Briggs & Stratton 63063

SCREW (Crimptite)- No. 8-18 x 1/4"

$

$

Not available

7

Briggs & Stratton 36917

SCREW, Pan Head Machine- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 36261

RIVET, Pop- 1/8"

$

$

Not available

9

Briggs & Stratton 73503

BACK, Panel
(Superseded to 7073503YP)

$455.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 34303

SWITCH

$

$

Currently unavailable

11

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 68867

RECEPTACLE- 120/240 volts, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66819

BREAKER, Circuit- 20 amp

$

$

Currently unavailable

14

Briggs & Stratton 60824

BREAKER, Circuit- 30 amp

$

$

Not available

15

Briggs & Stratton 68759

RECEPTACLE- 120 volts, 20 amp
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 23365

WASHER (Shakeproof)- No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0
