R3-12B602 (112-6) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) SPINDLE, PULLEYS & DRIVE BELT ASSEMBLIES Parts Diagram

Rear-Engine Riding Mower

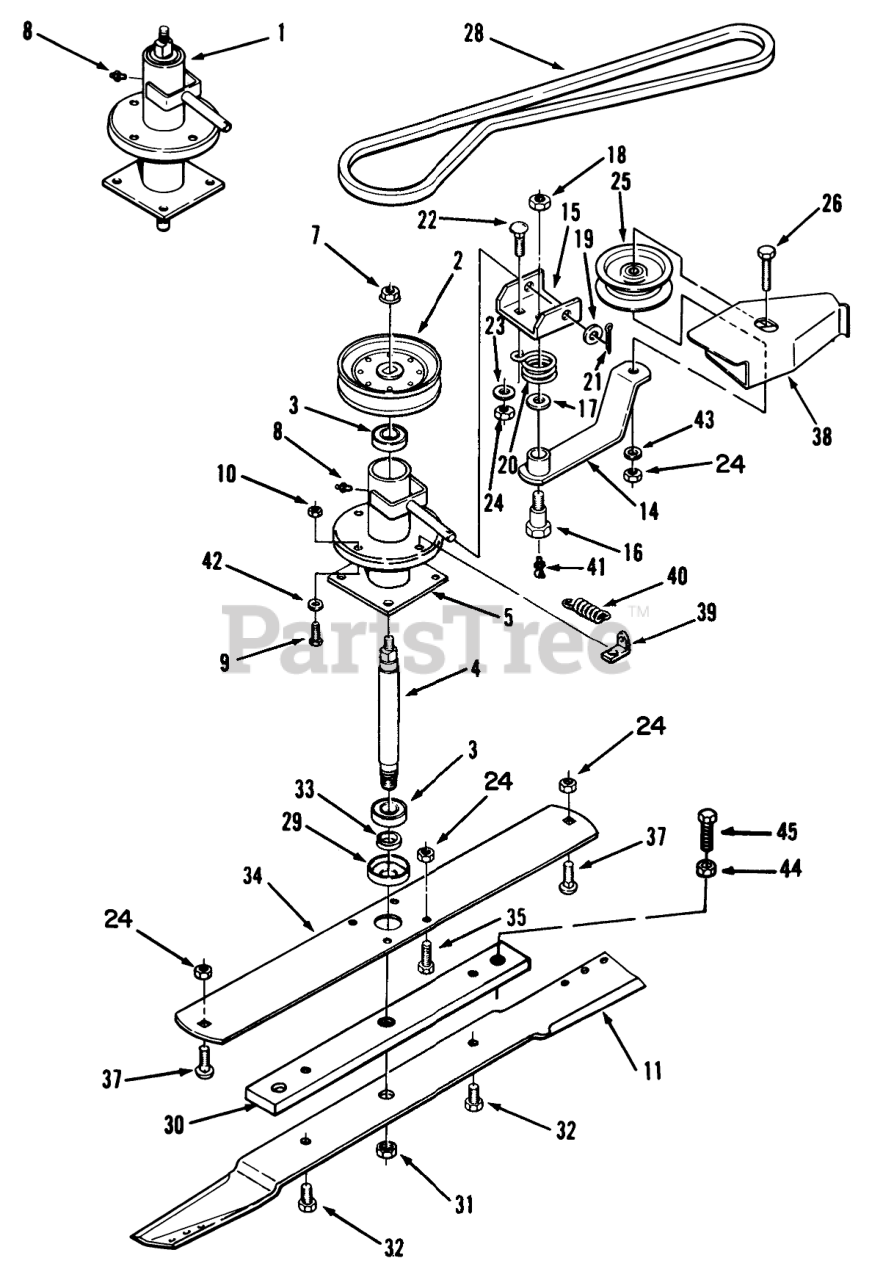

SPINDLE, PULLEYS & DRIVE BELT ASSEMBLIES Parts Diagram

  • Title

1

Toro 113168

Spindle Complete (Incl. Ref. #3, 4, 5 & 8)

$

$

Not available

2

Toro 110441

PULLEY SPINDLE

$

$

Not available

3

Toro 106084

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

4

Toro 111140

SHAFT SPINDLE

$323.99

$

Usually ships in 3-6 days

0

5

Toro 113167

ASS'Y-BLADE HOUSI R

$352.99

$

Usually ships in 3-6 days

0

7

Toro 960013

NUT 3/8-24 WHIZLOCK

$

$

Not available

8

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 112560

S/A-30' BLADE ASM

$134.99

$

Usually ships in 3-6 days

0

14

Toro 110398

ASSY LEVER R

$

$

Not available

15

Toro 110400

CHANNEL PIVOT R

$

$

Not available

16

Toro 112125

SHOULDER BOLT

$

$

Not available

17

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

18

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

19

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

20

Toro 108177

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

21

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

22

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 110910

PULLEY IDLER R

$

$

Not available

26

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 114567

BELT-V, LOWER PTO
(Superseded to 114567-SL)

$34.99

$

Usually ships in 3-6 days

0

29

Toro 111156

CUP SPINDLE

$

$

Not available

30

Toro 113309

BAR-BLADE R
(Superseded to 113309-01)

$

$

Not available

31

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

32

Toro 911440

HEX BOLT 1/2-13X3/4

$

$

Not available

33

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

34

Toro 111138

PLATE SUPPORT R

$

$

Not available

35

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

38

Toro 111683

COVER BELT R

$

$

Not available

39

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

40

Toro 112228

SPRING-EXTENSION

$

$

Not available

41

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

42

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

44

Toro 109779

NUT-HEX, JAM

$

$

Not available

45

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
