R3-12B602 (112-6) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) PTO CLUTCH, PULLEYS & CONTROL ASSEMBLIES Parts Diagram

Rear-Engine Riding Mower

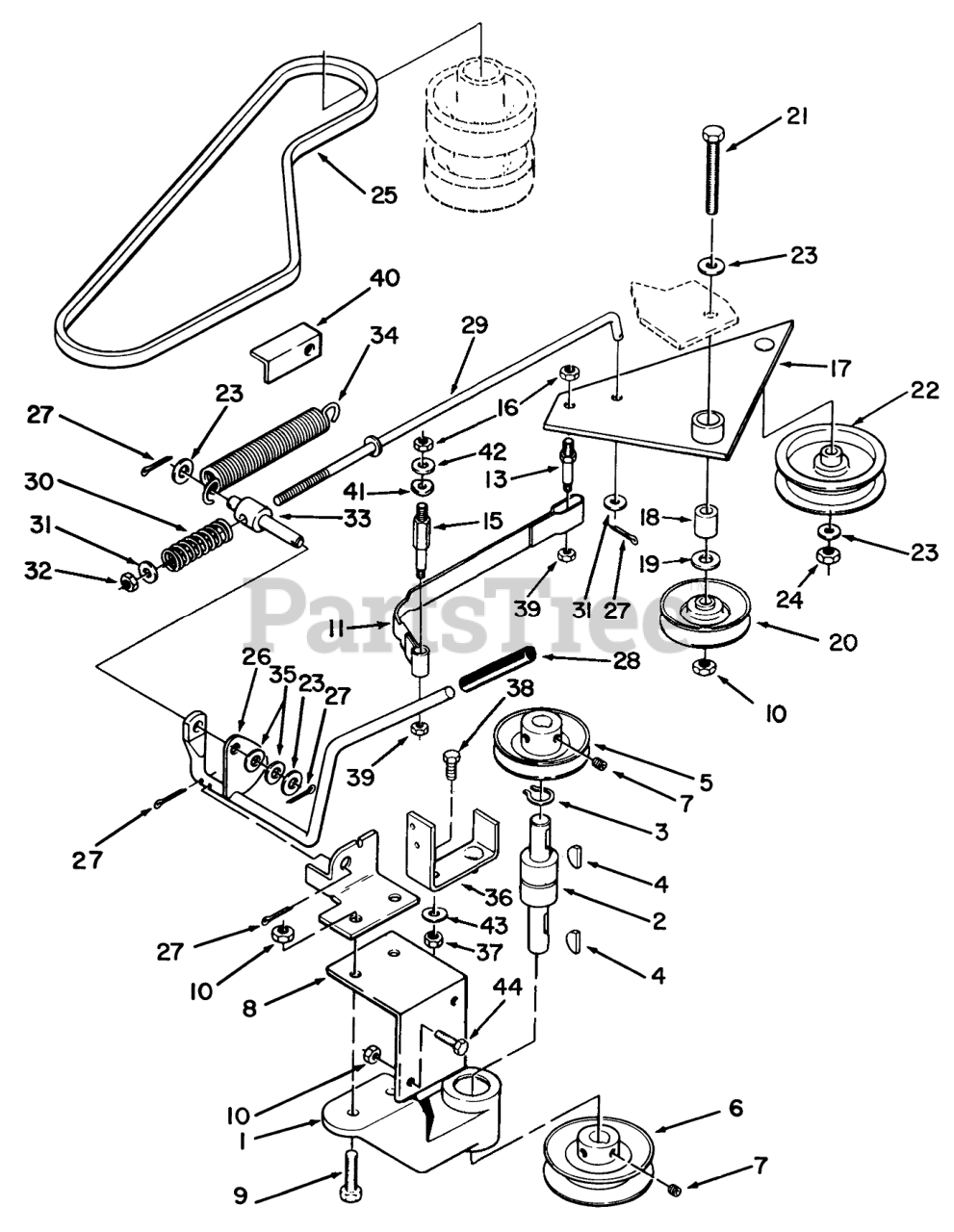

PTO CLUTCH, PULLEYS & CONTROL ASSEMBLIES Parts Diagram

  • Title

1

Toro 104176

HOUSING DRIVE BRG R
(Superseded to 104176-01)

$

$

Not available

2

Toro 106388

BEARING-INT SHAFT

$141.99

$

Usually ships in 3-6 days

0

3

Toro 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

4

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

5

Toro 112109

PULLEY CAST IRON

$

$

Not available

6

Toro 108172

PULLEY

$76.99

$

Usually ships in 3-6 days

0

7

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 113151

JACKSHAFT-BRACKET R

$

$

Not available

9

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 112110

BAND BRAKE

$

$

Not available

13

Toro 111729

STUD-SHOULDER

$

$

Not available

15

Toro 111730

STUD-SHOULDER LONG

$

$

Not available

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

17

Toro 112111

BLADE LEVER ASSY R

$83.99

$

Usually ships in 3-6 days

0

18

Toro 110369

SPACER

$

$

Not available

19

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

20

Toro 8510

IDLER PULLEY

$

$

Not available

21

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

22

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 109779

NUT-HEX, JAM

$

$

Not available

25

Toro 114231

BELT-V

$58.99

$

Usually ships in 3-6 days

0

26

Toro 111057

ASSY HANDLE PTO CLUT

$

$

Not available

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

28

Toro 9038

GRIP

$5.99

$

In Stock, only 1 left!

0

29

Toro 111676

ASSY ROD PTO

$

$

Not available

30

Toro 112113

SPRING COMPRESSION

$6.99

$

In Stock, only 2 left!

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

33

Toro 111755

TRUNNION

$109.99

$

Usually ships in 3-6 days

0

34

Toro 6651

SPRING R

$21.99

$

In Stock, only 1 left!

0

36

Toro 112756

ASS'Y-BRACKET (L. R
(Superseded to 112756-01)

$

$

Not available

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

40

Toro 112115

PTO INDICATOR BRC R

$

$

Not available

41

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
