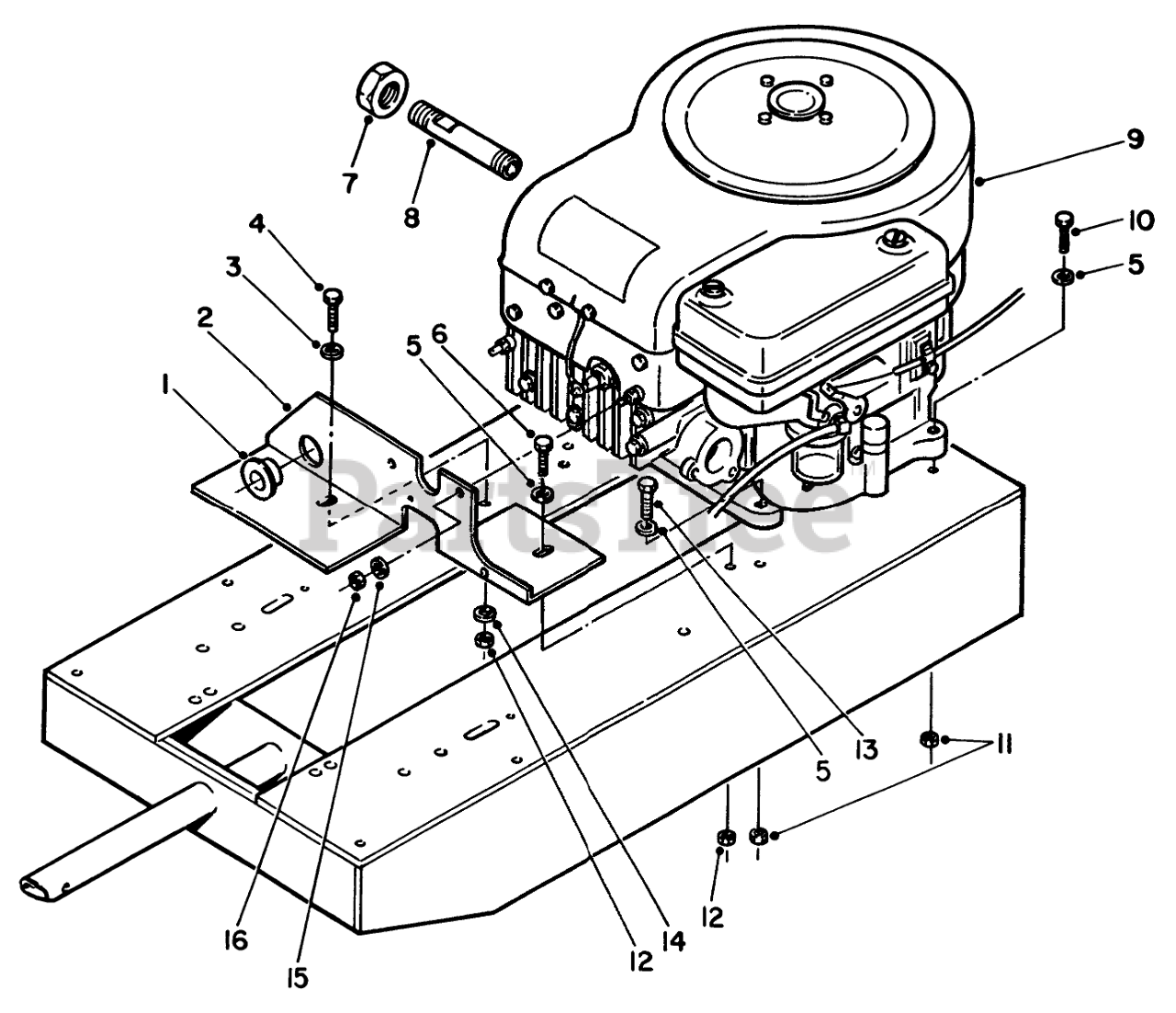

R3-12B602 (112-6) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

2

Toro 115962

BRACKET-ENGINE HE R

$

$

Not available

Toro 117269

BRACKET-ENG HEAD R

$149.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-66

WASHER-FLAT

$

$

Not available

6

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

7

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

8

Toro 112676

PIPE-DRAIN B

$

$

Not available

9

Engine-Order from Briggs

$

$

Not available

10

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
