R3-12B602 (112-6) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) CLUTCH & BRAKE LINKAGE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

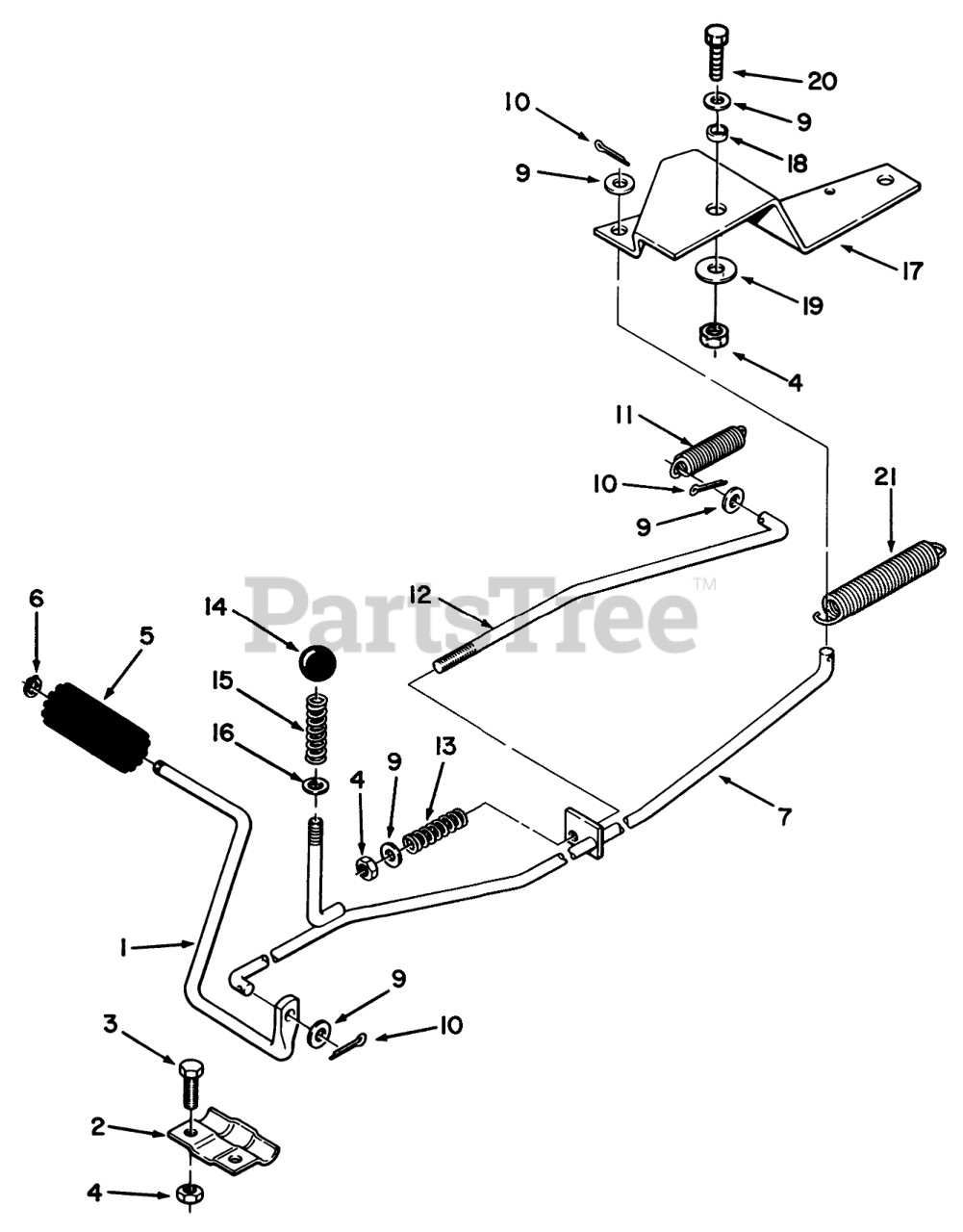

CLUTCH & BRAKE LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 110340

ROD-BRAKE PEDAL R

$

$

Not available

2

Toro 108861

SPINDAL SUPPORT R

$38.99

$

Usually ships in 3-6 days

0

3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 108854

PAD-CLUTCH/BRKE PDL

$

$

Not available

6

Toro 32151-11

RING-EXT GRIP

$11.99

$

In Stock, Qty 5

0

7

Toro 111715

ASSY CLUTCH ROD

$

$

Not available

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 103628

SPRING-EXTENSION

$12.99

$

In Stock, only 1 left!

0

12

Toro 110911

ROD BRAKE

$

$

Not available

13

Toro 109832

SPRING-COMPRESSION

$

$

Not available

14

Toro 111070

KNOB
(Superseded to 93-5312)

$10.99

$

Usually ships in 3-6 days

0

15

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

16

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

17

Toro 110363

LEVER CLUTCH R

$

$

Not available

18

Toro 111108

SPACER

$

$

Not available

19

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 111159

SPRING EXTENSION

$

$

Not available
