R3-12B601 (112-6e) - Toro Rear-Engine Riding Mower (1990) SECTION 8-ELECTRICAL SYSTEM Parts Diagram

Rear-Engine Riding Mower

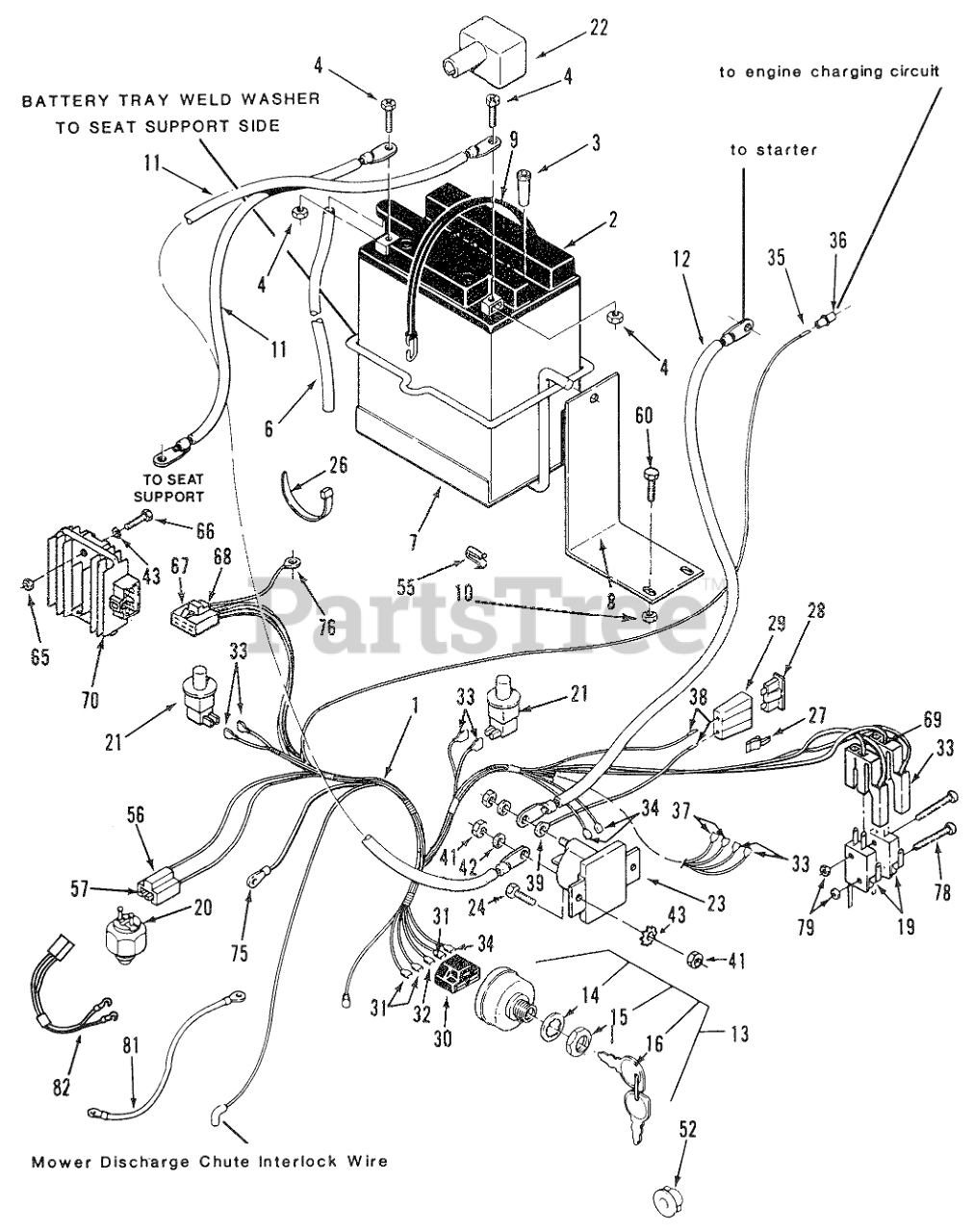

SECTION 8-ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 114834

WIRING-HARNESS & DIA

$

$

Not available

2

Toro 110379

BATTERY 120CCA

$

$

Not available

3

Toro 110427

ADAPTER

$

$

Not available

4

Toro 111185

ASSY BATTERY HDW

$

$

Not available

6

Toro 110424

HOSE BATTERY DRAIN

$

$

Not available

7

Toro 111335

BATTERY TRAY B

$

$

Not available

8

Toro 111339

BRACKET B

$

$

Not available

9

Toro 111340

STRAP

$

$

Not available

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 111341

ASSY WIRE

$

$

Not available

12

Toro 111075

WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

13

Toro 111215

Ignition Switch (includes items 14 & 15)
(Superseded to 103991)

$55.99

$

In Stock, only 2 left!

0

14

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

15

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

16

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

19

Toro 114565

SWITCH-LEVER

$38.99

$

Usually ships in 3-6 days

0

20

Toro 111365

SWITCH (N.C.-TRANS)

$

$

Not available

21

Toro 109329

SWITCH (N.C.)

$

$

Not available

22

Toro 111045

COVER-TERMINAL

$

$

Not available

23

Toro 110167

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 3 left!

0

24

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

26

Toro 100571

PLASTIC TIE

$

$

Not available

27

Toro 109445

CLIP

$8.49

$

Usually ships in 3-6 days

0

28

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 16

0

29

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

30

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

31

Toro 102651

Terminal

$

$

Not available

32

Toro 113090

Wire Terminal (Part of 1)
(Superseded to 112682)

$

$

Not available

33

Toro 113124

Wire Terminal (Part of 1)

$

$

Not available

34

Toro 113088

Connector .250 x .032

$

$

Currently unavailable

35

Toro 518074

Terminal

$

$

Not available

36

Toro 107831

SOCKET HOUSING

$

$

Not available

37

Toro 109378

Wire Terminal (Part of 1)

$

$

Currently unavailable

38

Toro 108995

TERMINAL-FUSE

$

$

Not available

39

Toro 518007

Wire Terminal (Part of 1)

$

$

Not available

41

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

42

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

52

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

55

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

56

Toro 109357

CONNECTOR BODY

$

$

Not available

57

Toro 113206

Male Terminals (Part of 1)
(Superseded to 112682)

$

$

Not available

60

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

69

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

78

Toro 910478

Screw
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

79

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

81

Toro 113921

WIRE-BONDING

$

$

Not available

82

Toro 111364

ASSY WIRING HARNESS

$

$

Not available
