R3-12B601 (112-6e) - Toro Rear-Engine Riding Mower (1990) SECTION 12-SPMNDLE, PULLEYS, AND DRIVE BELT Parts Diagram

Rear-Engine Riding Mower

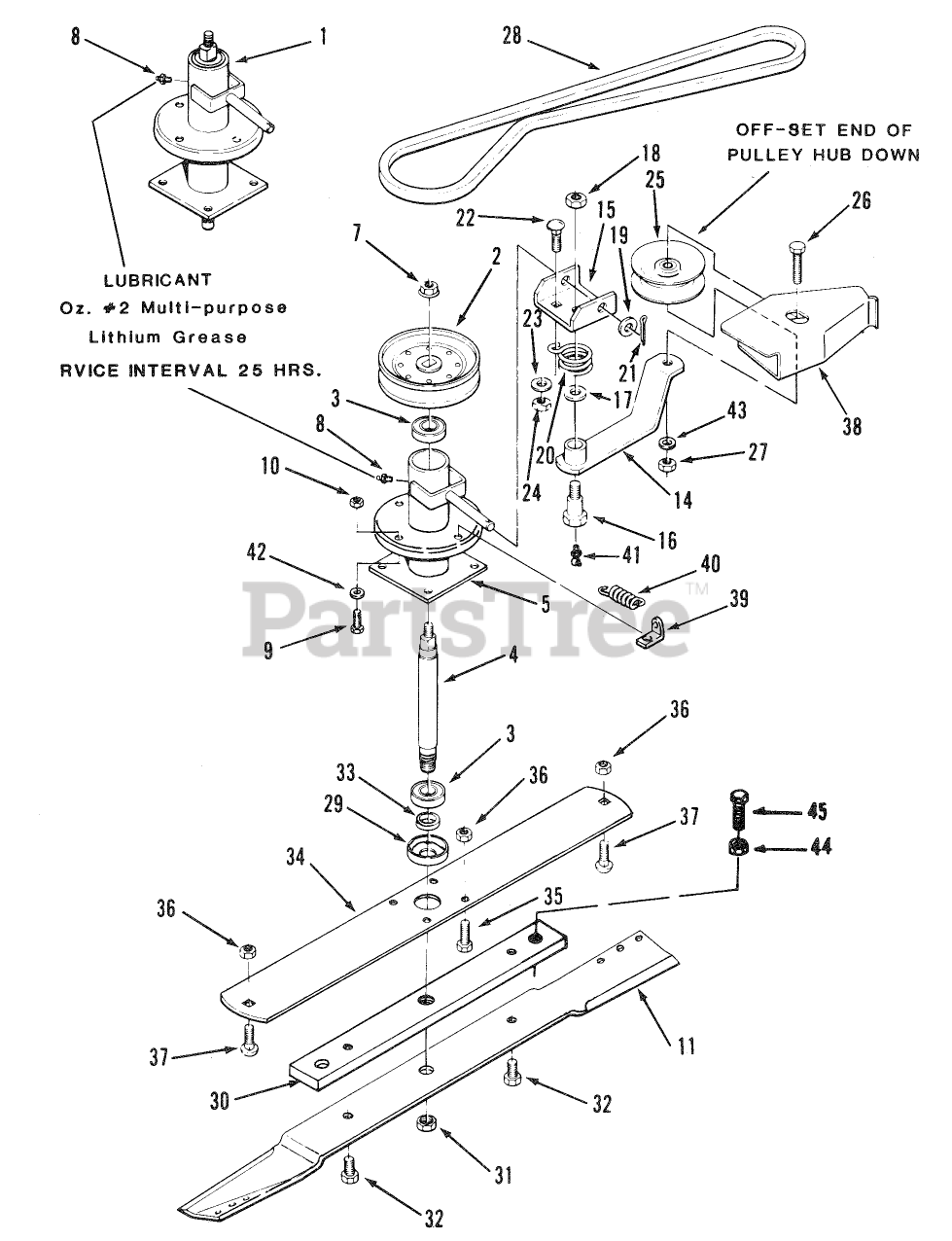

SECTION 12-SPMNDLE, PULLEYS, AND DRIVE BELT Parts Diagram

  • Title

1

Toro 113168

Spindle Complete (includes items 3, 4, 5 & 8)

$

$

Not available

2

Toro 110441

PULLEY SPINDLE

$

$

Not available

3

Toro 111135

BALL BEARING

$

$

Not available

4

Toro 111140

SHAFT SPINDLE

$323.99

$

Usually ships in 3-6 days

0

5

Toro 113167

ASS'Y-BLADE HOUSI R

$352.99

$

Usually ships in 3-6 days

0

7

Toro 960013

NUT 3/8-24 WHIZLOCK

$

$

Not available

8

Toro 1030

Zerk

$

$

Not available

9

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

10

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

11

Toro 111144

Blade
(Superseded to 112560)

$134.99

$

Usually ships in 3-6 days

0

14

Toro 110398

ASSY LEVER R

$

$

Not available

15

Toro 110400

CHANNEL PIVOT R

$

$

Not available

16

Toro 112125

SHOULDER BOLT

$

$

Not available

17

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

18

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

19

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

20

Toro 108177

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

21

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

22

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

24

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

25

Toro 110910

PULLEY IDLER R

$

$

Not available

26

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

27

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

28

Toro 114567

BELT-V, LOWER PTO
(Superseded to 114567-SL)

$34.99

$

Usually ships in 3-6 days

0

29

Toro 111156

CUP SPINDLE

$

$

Not available

30

Toro 113309

BAR-BLADE R
(Superseded to 113309-01)

$

$

Not available

31

*9150894

X-REF 3220-6

$

$

Not available

32

Toro 911440

HEX BOLT 1/2-13X3/4

$

$

Not available

33

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

34

Toro 111138

PLATE SUPPORT R

$

$

Not available

35

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

36

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

37

Toro 900233

Carriage Bolt 3/8-16 X 3/4
(Superseded to 3231-30)

$4.99

$

In Stock, only 1 left!

0

38

Toro 111683

COVER BELT R

$

$

Not available

39

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

40

Toro 112228

SPRING-EXTENSION

$

$

Not available

41

Toro 1291

ZERK 90DEGREE

$

$

Not available

42

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

43

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

44

Toro 109779

NUT-HEX, JAM

$

$

Not available

45

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0
