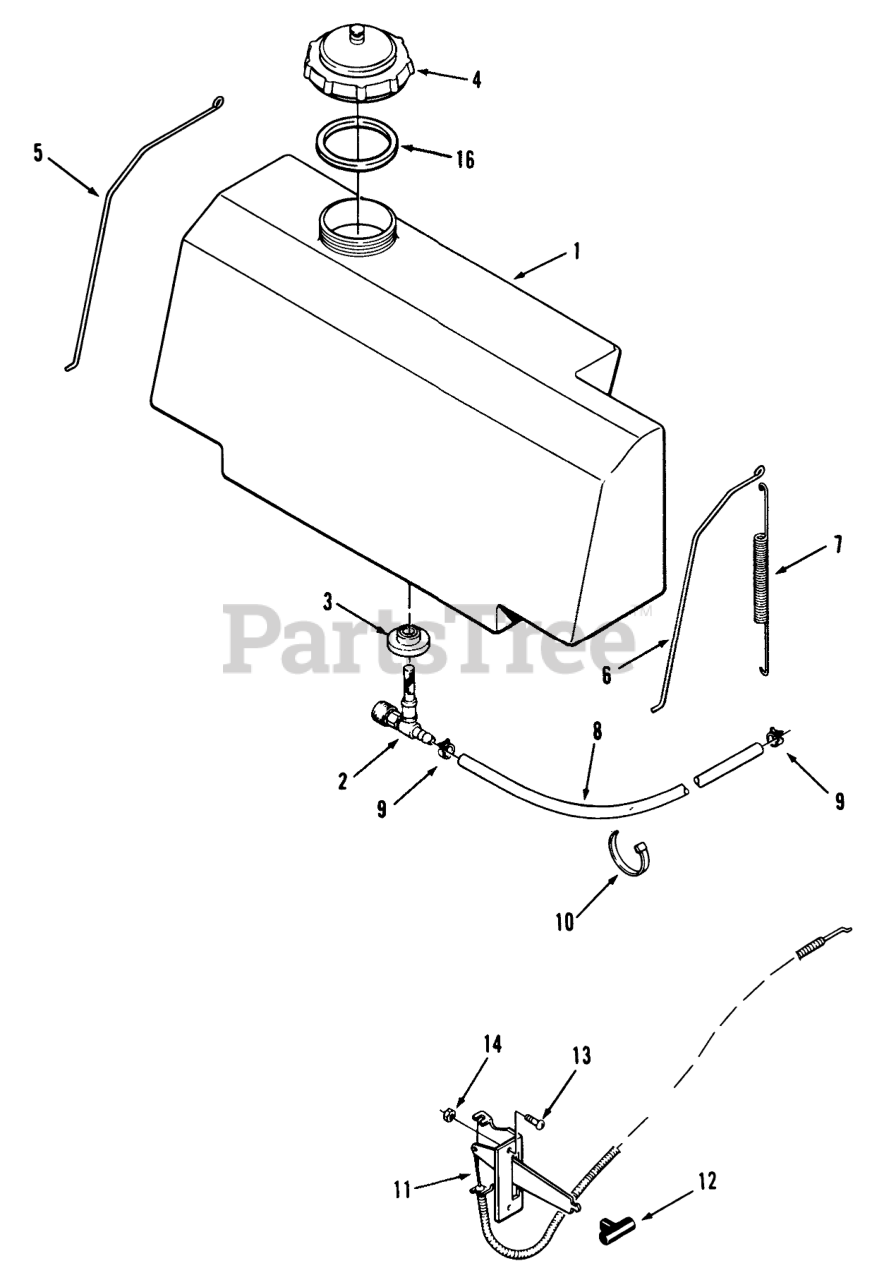

R3-10B404 (110-4) - Toro Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) FUEL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

FUEL ASSEMBLY Parts Diagram

  • Title

1

Toro 114194

Tank-Fuel (Includes Ref. #2 & 3)

$

$

Not available

2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

3

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 18

0

4

Toro 110352

ASSY FUEL CAP

$

$

Not available

5

Toro 110925

RETAINER TANK RH

$

$

Not available

6

Toro 110926

RETAINER TANK LH

$

$

Not available

Toro 119940

RETAINER-TANK L.H.

$

$

Not available

7

Toro 110927

SPRING EXTENSION

$

$

Not available

8

Toro 101338

FUEL HOSE 13" OF 6554

$

$

Not available

Toro 6554

Fuel Line

$

$

Not available

9

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Toro 100571

PLASTIC TIE

$

$

Not available

11

Toro 110878

CONTROL-THROTTLE

$77.99

$

In Stock, only 1 left!

0

12

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

13

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

14

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

16

Toro 106931

GASKET-GAS CAP

$

$

Not available
