R3-10B404 (110-4) - Toro Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) DRIVE BELT & PULLEY ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

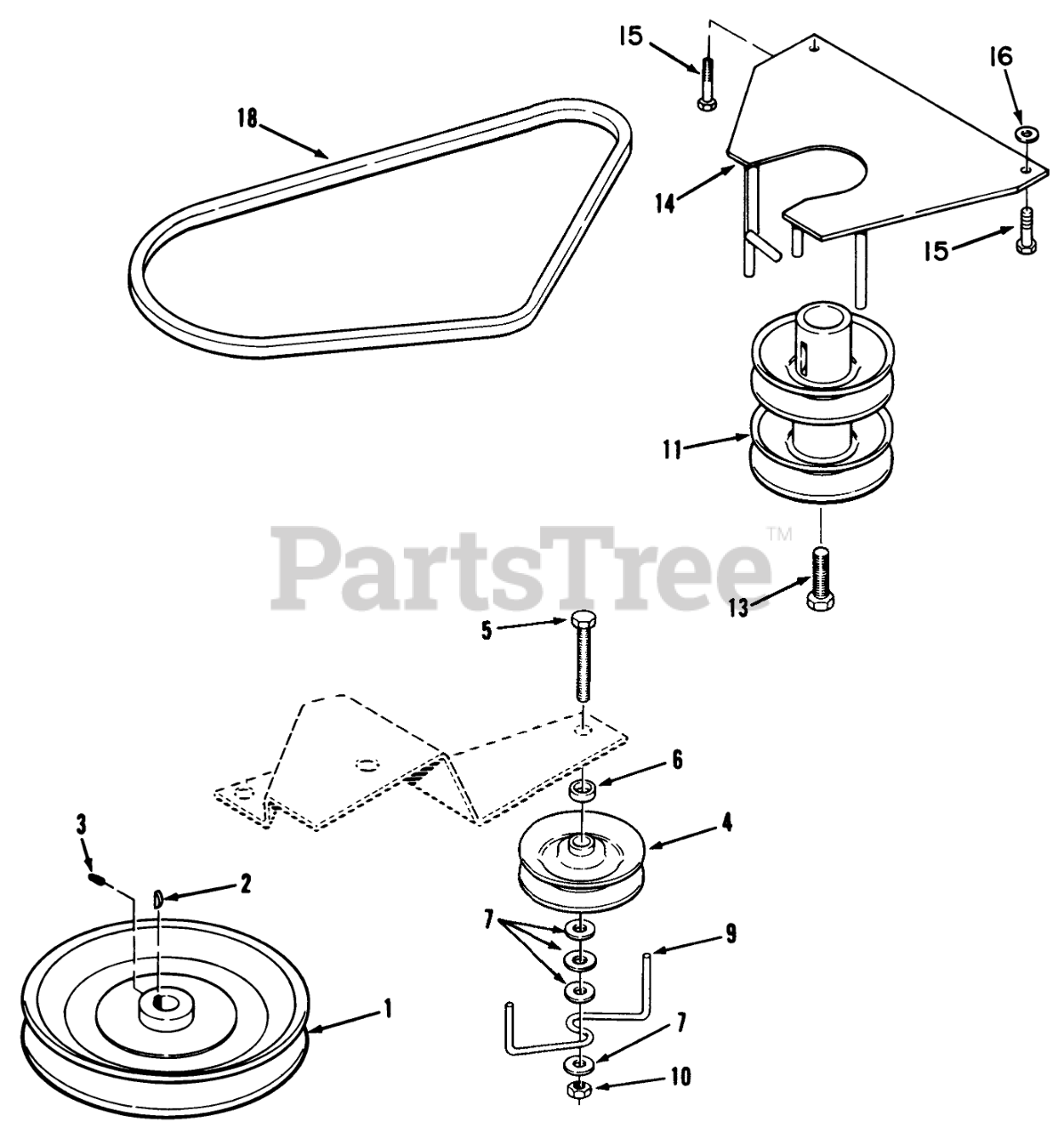

DRIVE BELT & PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 111136

PULLEY TRANSMISSION

$

$

Not available

2

Toro 937225

KEY-HI-PRO

$5.49

$

Usually ships in 3-6 days

0

3

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

4

Toro 113112

PULLEY-IDLER V

$87.99

$

Usually ships in 3-6 days

0

5

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

7

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

9

Toro 110362

GUIDE - BELT

$

$

Not available

10

Toro 109779

NUT-HEX, JAM

$

$

Not available

11

Toro 114113

PULLEY-ENGINE

$

$

Not available

13

Toro 908196

HEX HD CAP SCREW

$

$

Not available

14

Toro 114262

ASS'Y-BELT GUIDE R

$

$

Not available

15

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 113105

BELT-V

$31.99

$

Usually ships in 3-6 days

0
