R3-10B404 (110-4) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) SHEET METAL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

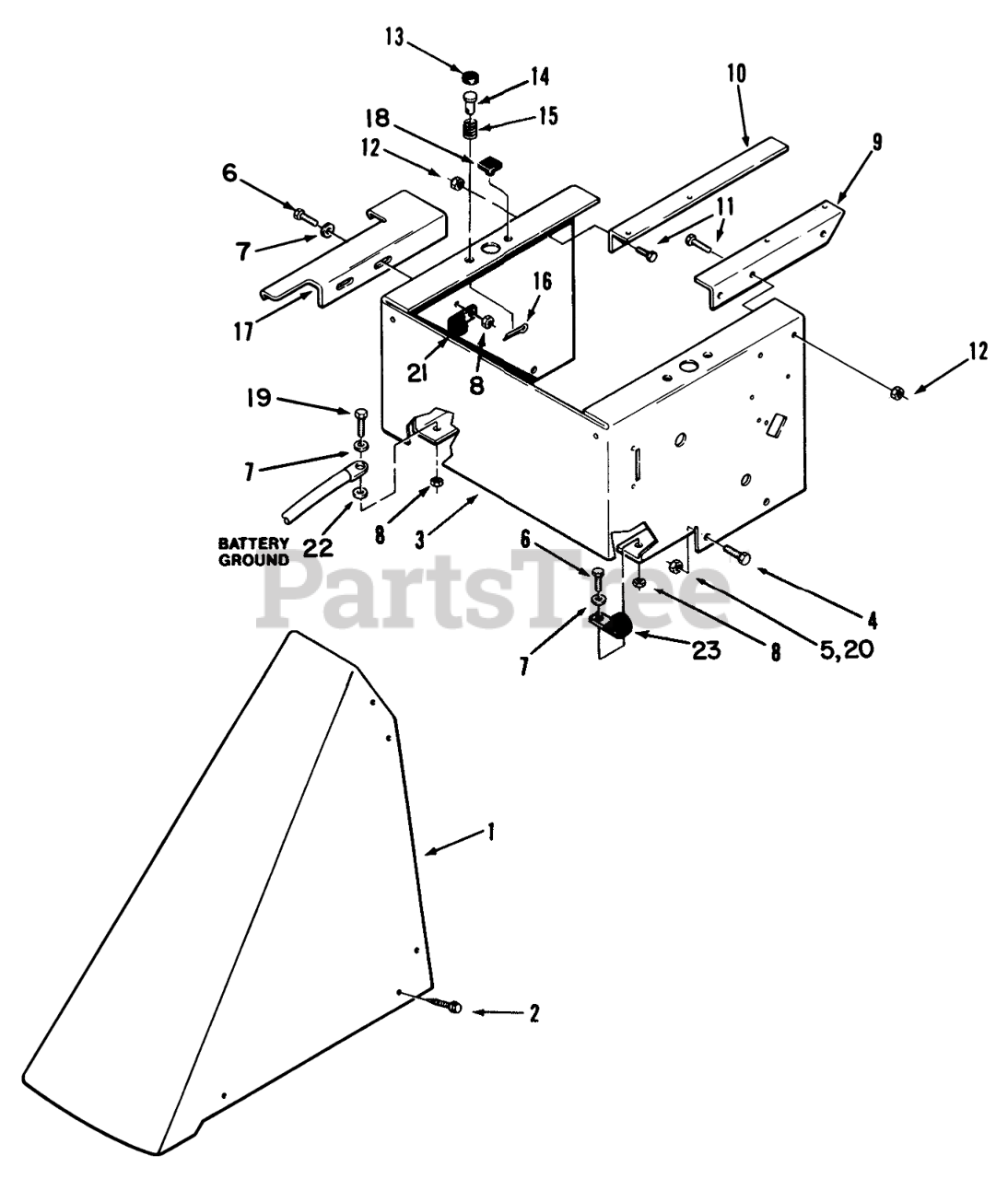

SHEET METAL ASSEMBLY Parts Diagram

  • Title

1

Toro 110323

COVER CONSOLE R

$

$

Not available

2

Toro 110430

HEX WASHER STS

$

$

Not available

3

Toro 114283

SUPPORT-SEAT R

$157.99

$

Usually ships in 3-6 days

0

4

Toro 913183

BOLR HWH 3/8-16X7/8

$

$

Not available

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 119950

WLDMT-TANK SUPPOR R

$

$

Not available

Toro 110353

ANGLE TANK SUPP. R

$

$

Not available

10

Toro 119960

WLDMT-TANK SUPPOR R

$

$

Not available

Toro 110354

ANGLE TANK SUPP. R

$

$

Not available

11

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

12

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

13

Toro 106331

CUP

$

$

Not available

14

Toro 106449

PIN

$7.99

$

Usually ships in 3-6 days

0

15

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 110470

PLATE SHIFT R

$

$

Not available

18

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

21

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

22

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

23

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0
