R3-10B404 (110-4) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) SEAT & SUSPENSION ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

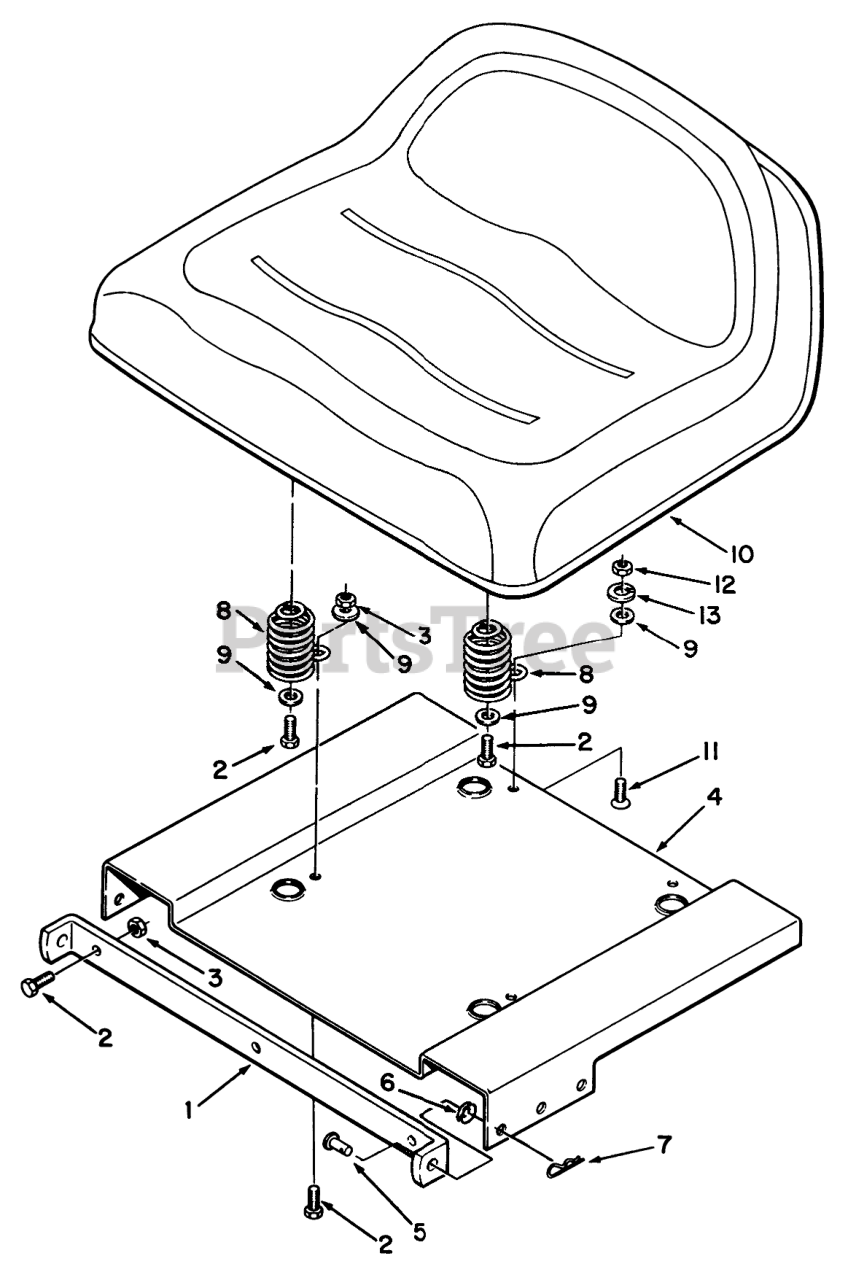

SEAT & SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 111064

BRACKET - SEAT MO R

$

$

Not available

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 113961

PLATE-SEAT PIVOT R

$

$

Not available

5

Toro 932960

PIN

$

$

Not available

6

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

7

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

8

Toro 111090

SPRING SEAT

$

$

Not available

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 116654

SEAT V-550 LESS LOGO

$

$

Not available

11

Toro 9088354

Screw
(Superseded to 32108-20)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
