R3-10B402 (110-4e) - Toro Rear-Engine Riding Mower (1991) SECTION 10-PTO CLUTCH, PULLEYS, AND CONTROLS Parts Diagram

Rear-Engine Riding Mower

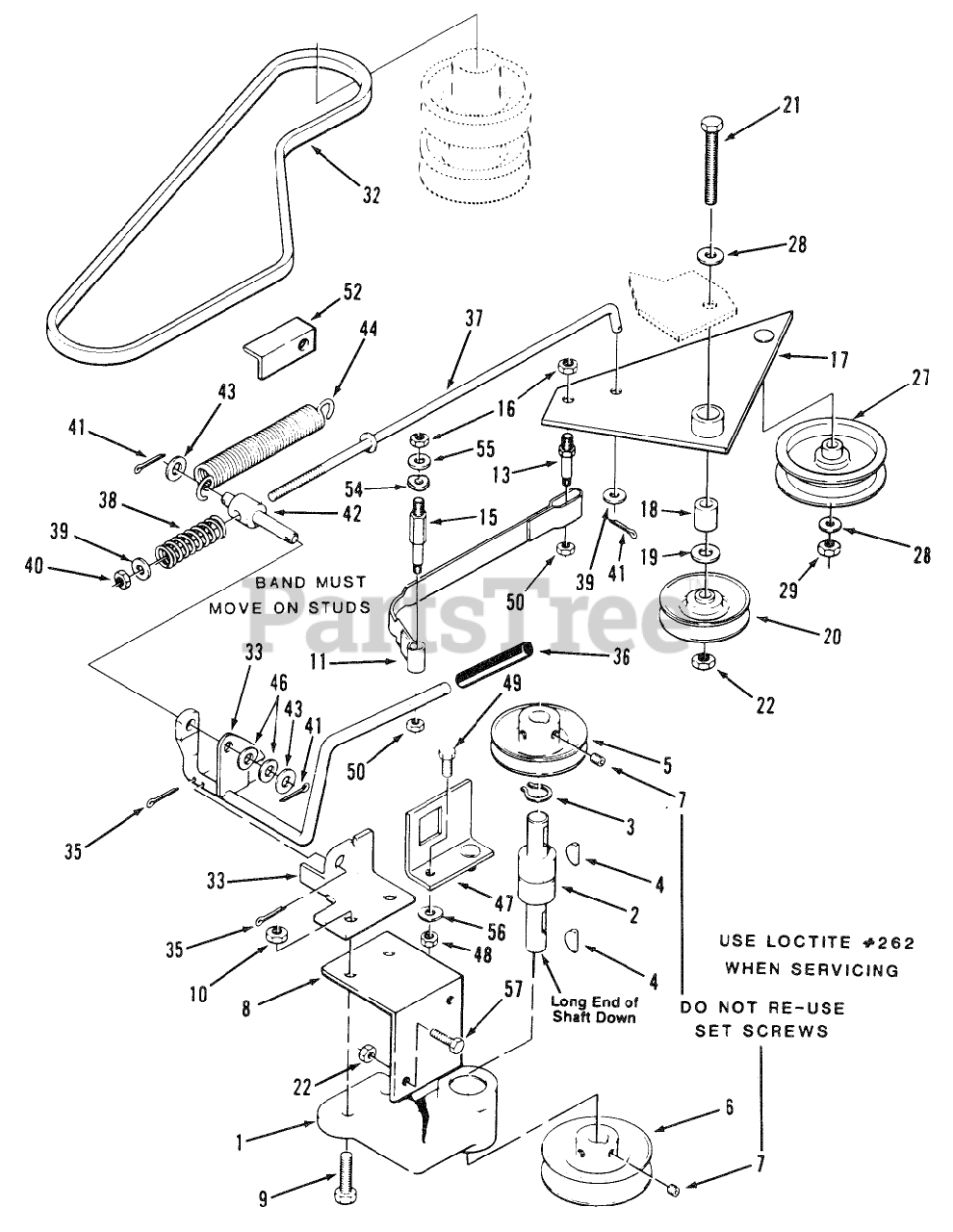

SECTION 10-PTO CLUTCH, PULLEYS, AND CONTROLS Parts Diagram

  • Title

1

Toro 8971

Jack Shaft Housing
(Superseded to 104176-01)

$

$

Not available

2

Toro 106388

BEARING-INT SHAFT

$164.99

$

Usually ships in 3-6 days

0

3

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

4

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

5

Toro 112109

PULLEY CAST IRON

$

$

Not available

6

Toro 108172

PULLEY

$86.99

$

Usually ships in 3-6 days

0

7

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 113151

JACKSHAFT-BRACKET R

$

$

Not available

9

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

11

Toro 112110

BAND BRAKE

$

$

Not available

13

Toro 111729

STUD-SHOULDER

$

$

Not available

15

Toro 111730

STUD-SHOULDER LONG

$

$

Not available

16

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

17

Toro 112111

BLADE LEVER ASSY R

$86.99

$

Usually ships in 3-6 days

0

18

Toro 110369

SPACER

$

$

Not available

19

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

20

Toro 8510

IDLER PULLEY

$

$

Not available

21

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 20+

0

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

27

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 2 left!

0

28

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

29

Toro 109779

NUT-HEX, JAM

$

$

Not available

32

Toro 114231

BELT-V

$58.99

$

Usually ships in 3-6 days

0

33

Toro 111057

ASSY HANDLE PTO CLUT

$

$

Not available

35

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

36

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

37

Toro 111676

ASSY ROD PTO

$

$

Not available

38

Toro 112113

SPRING COMPRESSION

$6.99

$

In Stock, only 2 left!

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

40

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

41

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

42

Toro 111755

TRUNNION

$108.99

$

Usually ships in 3-6 days

0

43

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

44

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

46

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

47

Toro 112756

ASS'Y-BRACKET (L. R
(Superseded to 112756-01)

$

$

Not available

48

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

49

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

50

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

52

Toro 112115

PTO INDICATOR BRC R

$

$

Not available

54

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

55

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

56

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

57

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0
