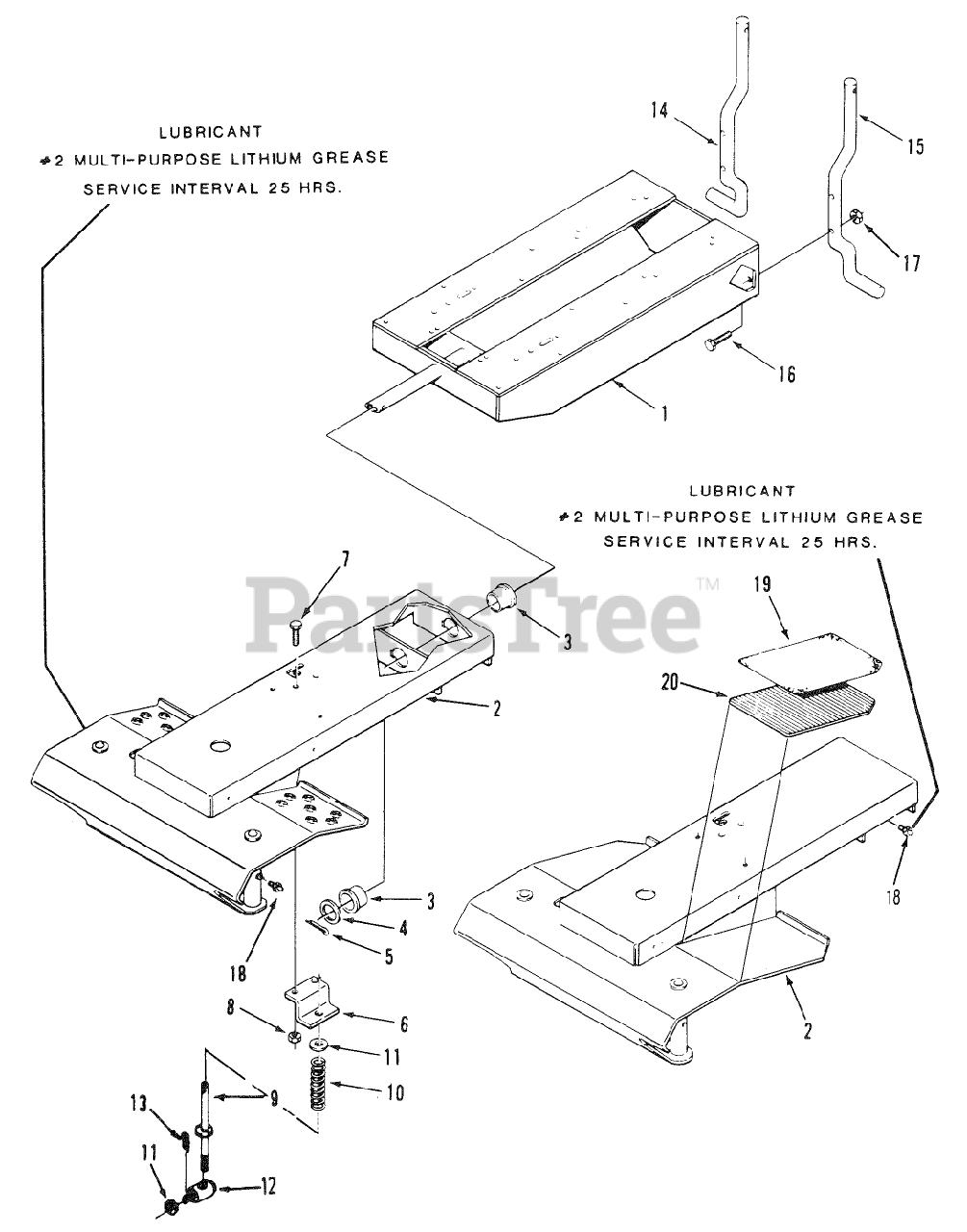

R3-10B402 (110-4e) - Toro Rear-Engine Riding Mower (1991) SECTION 1-FRAME Parts Diagram

Rear-Engine Riding Mower

SECTION 1-FRAME Parts Diagram

  • Title

1

Toro 112502

ASS'Y-FRAME REAR R

$743.99

$

Usually ships in 3-6 days

0

2

Toro 111303

ASSY FRONT FRAME R

$

$

Not available

3

Toro 110311

BEARING FLANGE

$

$

Not available

4

Toro 110426

WASHER

$

$

Not available

5

Toro 932037

Pin-Cotter
(Superseded to 9320374)

$

$

Not available

6

Toro 110406

BRACKET R

$

$

Not available

7

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 112922

ASSY ROD

$

$

Not available

10

Toro 109229

SPRING-COMPRESSION

$61.99

$

Usually ships in 3-6 days

0

11

Toro 920094

Washer 3/8 SAE

$

$

Currently unavailable

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

12

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

13

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

14

Toro 111088

REAR ROD RH B

$

$

Not available

15

Toro 111087

REAR ROD LH B

$193.99

$

Usually ships in 3-6 days

0

16

Toro 911450

Bolt
(Superseded to 9114504)

$

$

Not available

17

Toro 112536

LOCKNUT 5/16-18GR.B

$

$

Not available

18

Toro MW1455

Grease Zerk
(Superseded to 302-26)

$6.49

$

In Stock, only 1 left!

0

19

Toro 111300

PAD FOOTREST RH

$

$

Not available

Toro 111299

PAD FOOTREST LH

$

$

Not available

20

Toro 111324

PAD FOOTREST RH

$47.99

$

Usually ships in 3-6 days

0

Toro 111325

PAD FOOTREST LH

$

$

Not available
