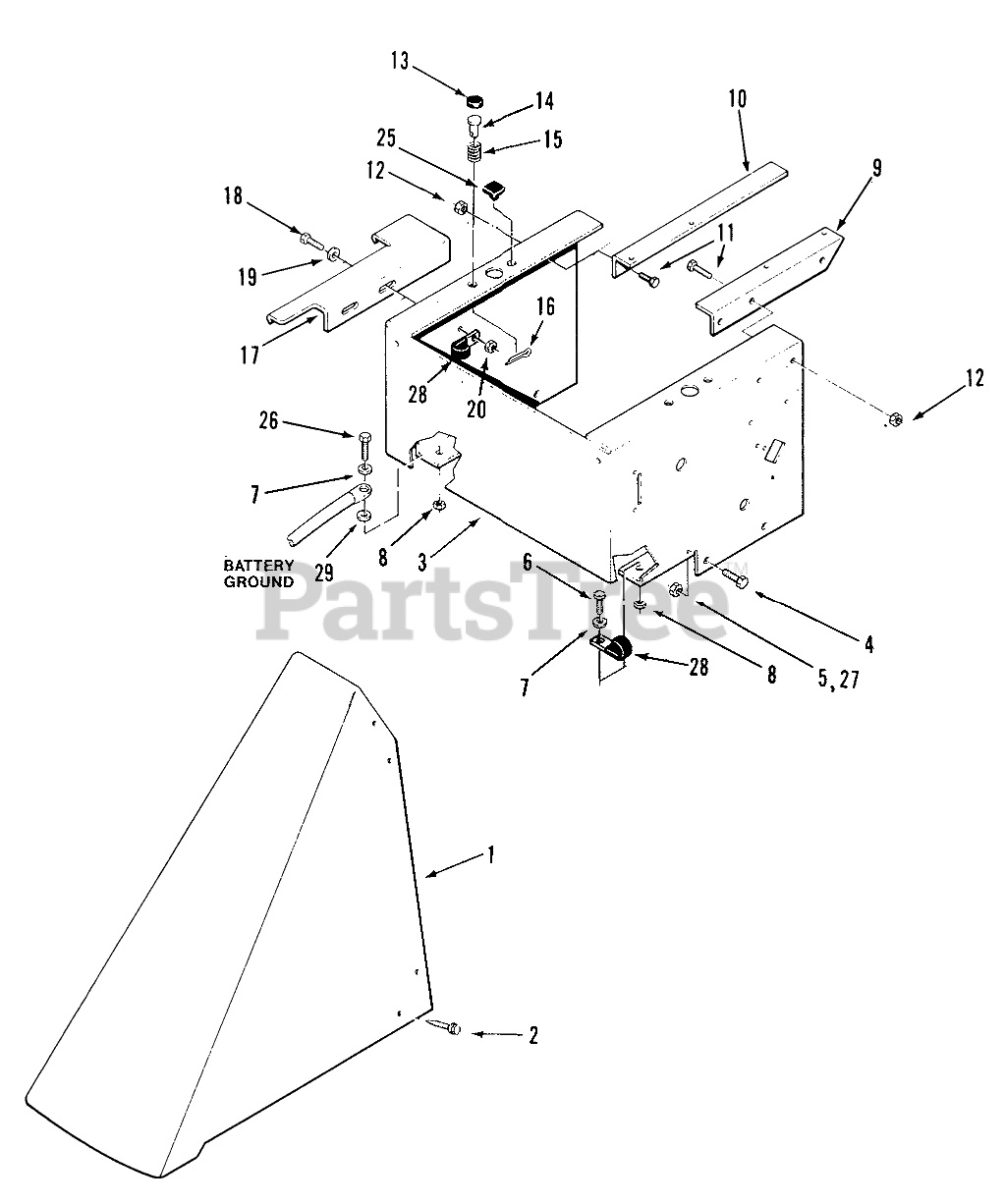

R3-10B401 (110-4) - Toro Rear-Engine Riding Mower (1990) SHEET METAL Parts Diagram

Rear-Engine Riding Mower

SHEET METAL Parts Diagram

  • Title

1

Toro 110323

COVER CONSOLE R

$

$

Not available

2

Toro 110430

HEX WASHER STS

$

$

Not available

3

Toro 114283

SUPPORT-SEAT R

$157.99

$

Usually ships in 3-6 days

0

4

Toro 913183

BOLR HWH 3/8-16X7/8

$

$

Not available

5

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

7

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 110353

ANGLE TANK SUPP. R

$

$

Not available

10

Toro 110354

ANGLE TANK SUPP. R

$

$

Not available

11

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 106331

CUP

$

$

Not available

14

Toro 106449

PIN

$7.99

$

Usually ships in 3-6 days

0

15

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

16

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

17

Toro 110470

PLATE SHIFT R

$

$

Not available

18

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

19

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

20

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

25

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

26

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

27

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

29

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available
