R3-10B401 (110-4) - Toro Rear-Engine Riding Mower (1990) SEAT AND SUSPENSION Parts Diagram

Rear-Engine Riding Mower

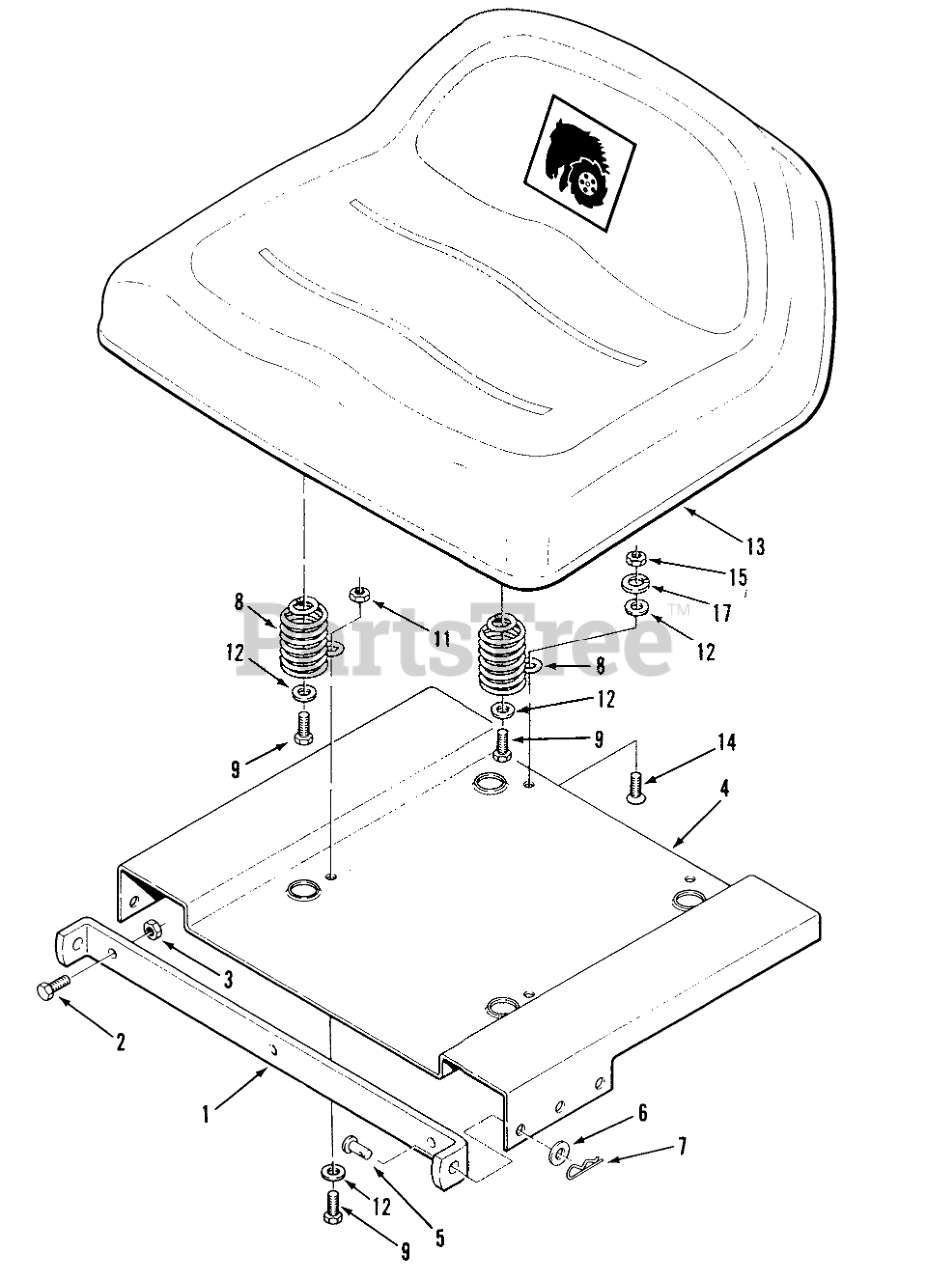

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 111064

BRACKET - SEAT MO R

$

$

Not available

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 113961

PLATE-SEAT PIVOT R

$

$

Not available

5

Toro 932960

PIN

$

$

Not available

6

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

7

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

8

Toro 111090

SPRING SEAT

$

$

Not available

9

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

12

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

13

Toro 105259

Seat
(Superseded to 78-7600)

$

$

Not available

Toro 111393

DISCONTINUED

$

$

Not available

Toro 116654

SEAT V-550 LESS LOGO

$

$

Not available

14

Toro 908835

Screw 5/16-18 X 3/4

$

$

Currently unavailable

15

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

17

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0
