R3-10B401 (110-4) - Toro Rear-Engine Riding Mower (1990) ENGINES Parts Diagram

Rear-Engine Riding Mower

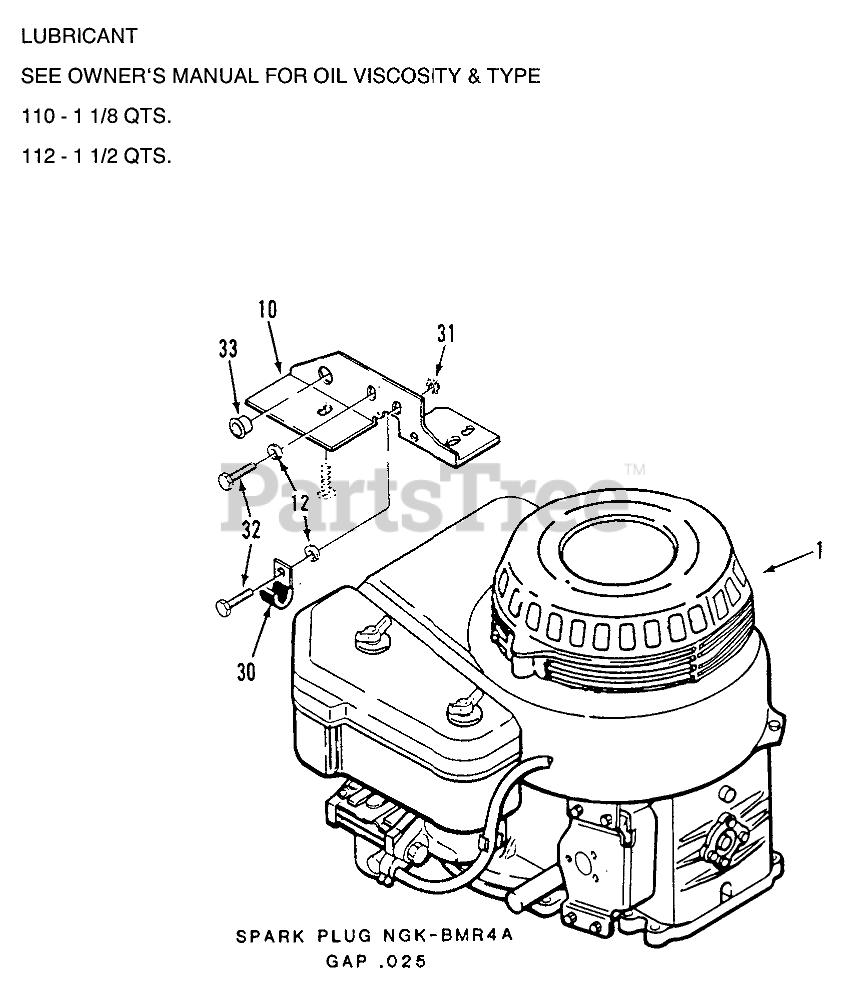

ENGINES Parts Diagram

  • Title

1

Toro 114887

Engine-10 HP Briggs and Stratton I.C. Model 256707 Type 0117 01

$

$

Currently unavailable

Toro 113484

Engine-12.5 HP Kawasaki Model FB460V Type BS-22 112-6 Only (see Sections 9-2 thru 9-8 for complete service info)

$

$

Currently unavailable

Toro 112676

PIPE-DRAIN B

$

$

Not available

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10

Toro 114019

Engine Head Bracket 12.5 H.P. Model

$

$

Not available

Toro 115962

BRACKET-ENGINE HE R

$

$

Not available

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

12

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

30

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

31

Toro 920123

Washer-Lock
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 5

0

32

Toro 112988

Bolt 8M x 1.25 x 16 112-C Only

$

$

Not available

33

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

Toro 113497

MANIFOLD-EXHAUST

$

$

Not available

Toro 113767

CLAMP-EXHAUST

$

$

Not available

Toro 113485

MUFFLER-EUROPE RIDER

$681.99

$

Usually ships in 3-6 days

0

Toro 810577

Engine Manual 10 H.P. Model

$

$

Currently unavailable

Toro 810556

Engine Manual 12.5 H.P. French

$

$

Currently unavailable

Toro 810559

Engine Manual 12.5 H.P. German

$

$

Currently unavailable

Toro 810447

Engine Manual 12.5 H.P. K/W

$

$

Currently unavailable
