R2-17K502 (227-5) - Toro Lawn Tractor (1990) SEAT AND SUSPENSION Parts Diagram

Lawn Tractor

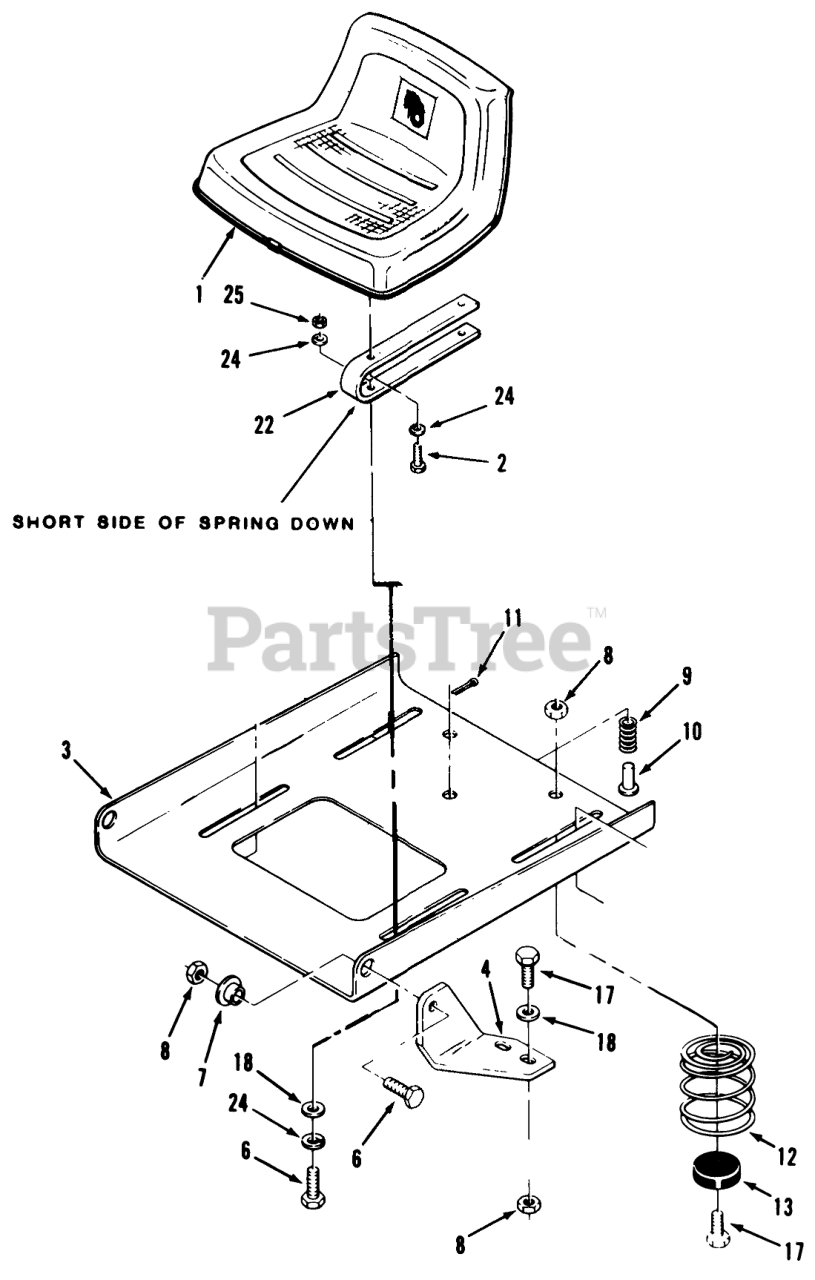

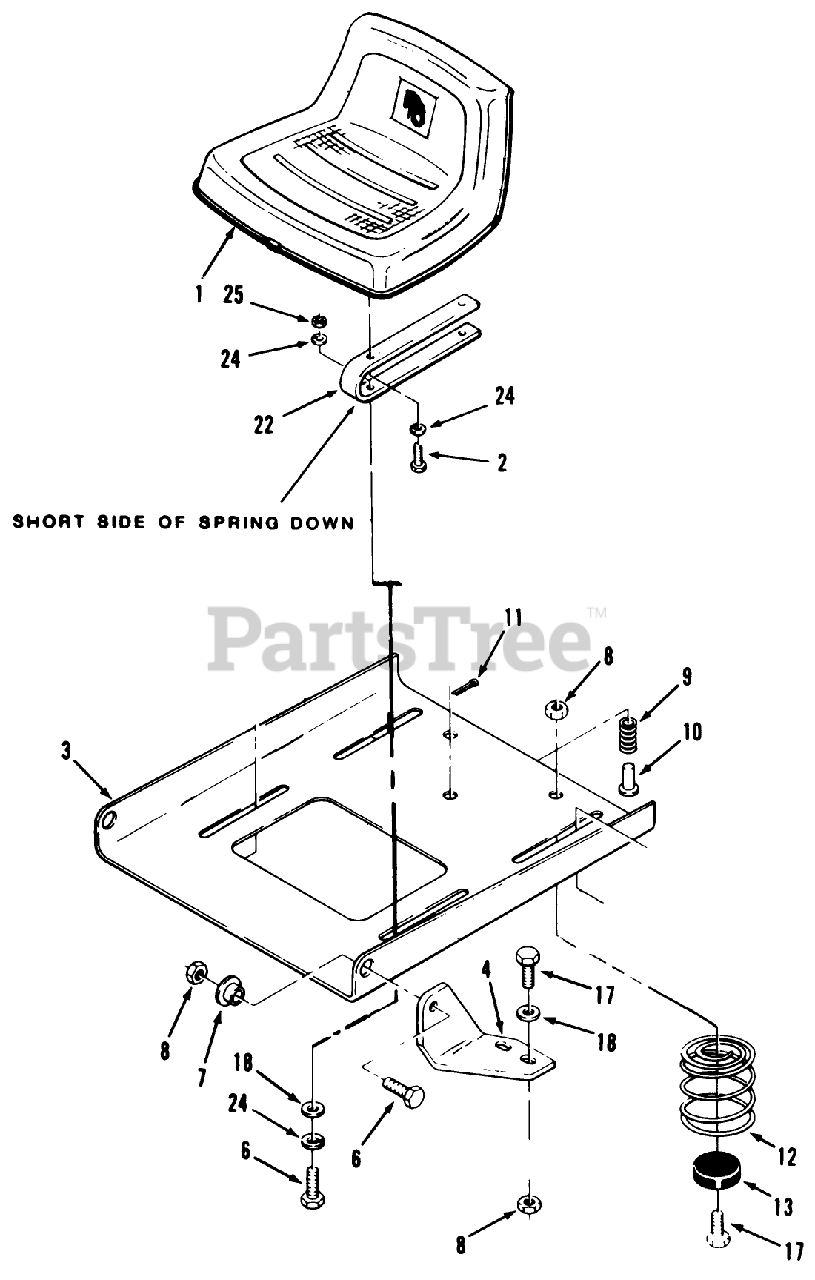

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 113986

Seat

$

$

Currently unavailable

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 112478

PLATE-SEAT PIVOT B

$

$

Not available

4

Toro 112745

BRACKET-PIVOT L.H B

$36.99

$

Usually ships in 3-6 days

0

Toro 112744

Bracket-Pivot RH

$36.99

$

Usually ships in 3-6 days

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 114267

SPRING-SEAT SWITCH

$

$

Not available

10

Toro 106449

PIN

$6.99

$

Usually ships in 3-6 days

0

11

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 114496

SPRING

$

$

Not available

13

Toro 108889

BUMPER

$21.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 114496

SPRING

$

$

Not available

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12
