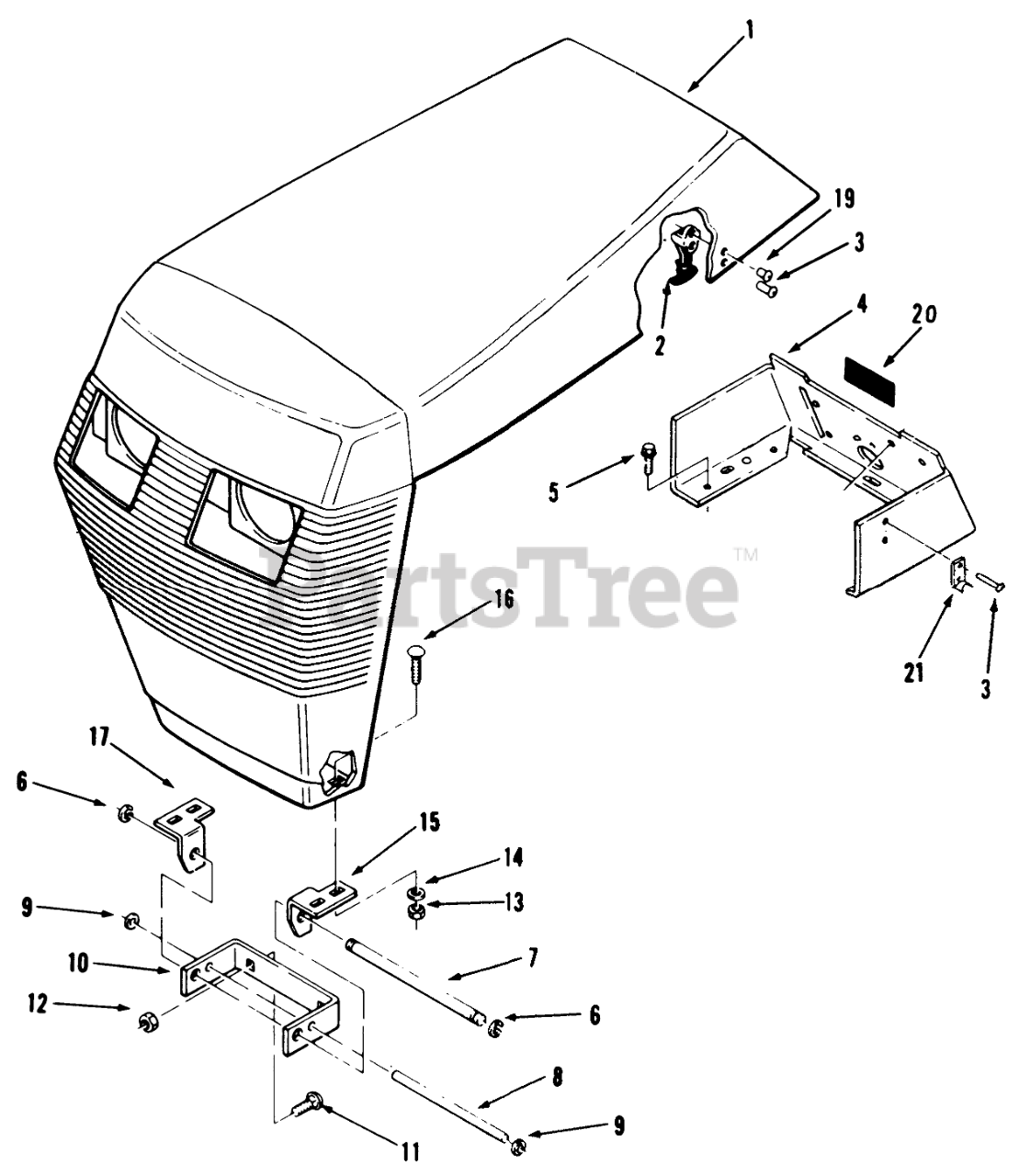

R2-17K502 (227-5) - Toro Lawn Tractor (1990) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 113458

Hood
(Superseded to 11-5679)

$

$

Not available

2

Toro 117344

HANDLE ASM

$36.99

$

In Stock, only 1 left!

0

3

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

4

Toro 112704

Console

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

8

Toro 108243

ROD-HOOD STOP

$

$

Not available

9

Toro 5466

SPEED NUT

$

$

Not available

10

Toro 112695

Bracket-Hood Pivot

$

$

Not available

11

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 109146

BRKT-GRILL PIVOT R (NS)
(Superseded to 109146-01)

$

$

Not available

16

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

16

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

17

Toro 109145

BRKT-GRILL PIVOT R
(Superseded to 109145-01)

$34.99

$

Usually ships in 3-6 days

0

19

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

20

Toro 111757

EDGING-CONSOLE

$11.99

$

In Stock, only 2 left!

0

21

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0
