R2-17K502 (227-5) - Toro Lawn Tractor (1990) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

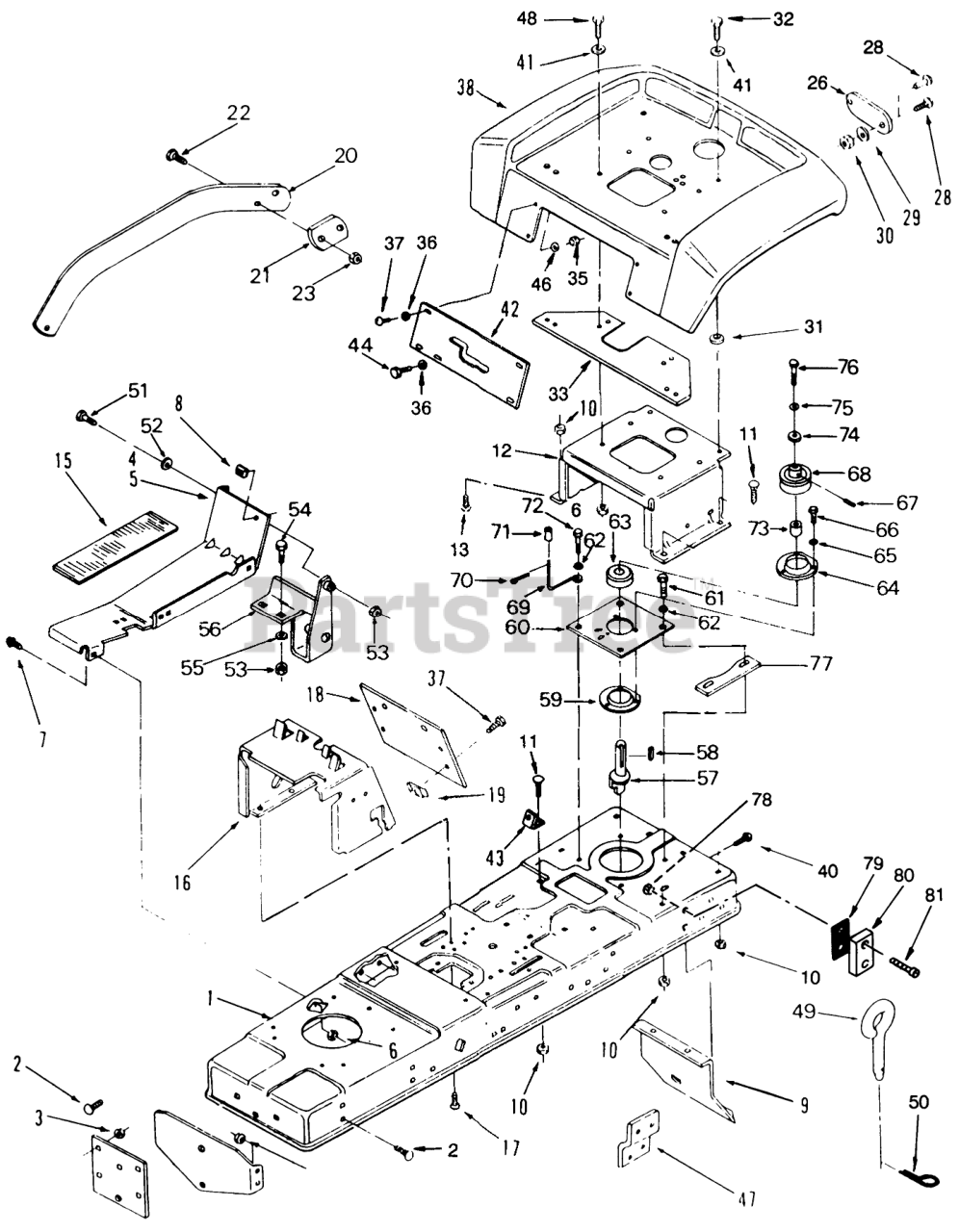

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 113871

FRAME-B CHASSIS R

$

$

Not available

2

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 110516

RH FOOTREST R

$

$

Not available

5

Toro 110515

Footrest LH

$

$

Not available

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 518211

BUMPER

$3.49

$

In Stock, Qty 6

0

9

Toro 109351

Hitch-Drawbar

$

$

Currently unavailable

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 113870

SUPPORT-SEAT R

$

$

Not available

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 115852

MAT-FOOTREST R.H.

$

$

Not available

Toro 115851

MAT-FOOTREST L.H.

$

$

Not available

16

Toro 114691

ASS'Y-HOODSTAND B

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 115179

PLATE-HOODSTAND R B

$

$

Not available

19

$2.99

$

In Stock, Qty 20+

0

20

Toro 78-1870

BAR-PIVOT R

$

$

Not available

21

Toro 114757

SPACER R

$

$

Not available

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

28

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

29

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

30

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

31

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

32

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

33

Toro 114288

PLATE-SEAT R

$

$

Not available

35

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

38

Toro 112471

FENDER R

$

$

Not available

40

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Toro 109457

PLATE-SHIFT R

$

$

Not available

43

Toro 110511

BRACKET FENDER

$

$

Not available

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

46

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 111739

BRKT SWITCH BRAKE R

$

$

Not available

48

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

49

Toro 106634

PIN-TOOL

$

$

Not available

50

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

51

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 920267

WASHER-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

53

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

54

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

55

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

56

Toro 114748

ASS'Y-BRACKET R.H R

$

$

Not available

Toro 114747

ASS'Y-BRACKET L.H R

$

$

Not available

57

Toro 116119

SHAFT-DRIVE

$

$

Not available

58

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

59

Toro 102536

BEARING-CUP W/NUTS

$

$

Not available

60

Toro 114686

PLATE-MTG R

$

$

Not available

61

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

62

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

63

Toro 102534

BEARING-BALL

$

$

Not available

64

Toro 102533

BEARING-CUP

$38.99

$

Usually ships in 3-6 days

0

65

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

66

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

67

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

68

Toro 114740

PULLEY

$

$

Not available

69

Toro 114811

GUIDE-BELT

$

$

Not available

70

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

71

Toro 114812

SPACER

$

$

Not available

72

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

73

Toro 114741

SPACER SHAFT

$

$

Not available

74

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

75

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

76

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

77

Toro 114743

SPACER-MTG PLATE R

$

$

Not available

78

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

79

Toro 114778

SPACER-RUB BLOCK R

$

$

Not available

80

Toro 114756

Block Rubber

$

$

Not available

81

Toro 910840

PHCRS 1/4-20 X 1

$

$

Not available
