R2-17K502 (227-5) - Toro Lawn Tractor (1990) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

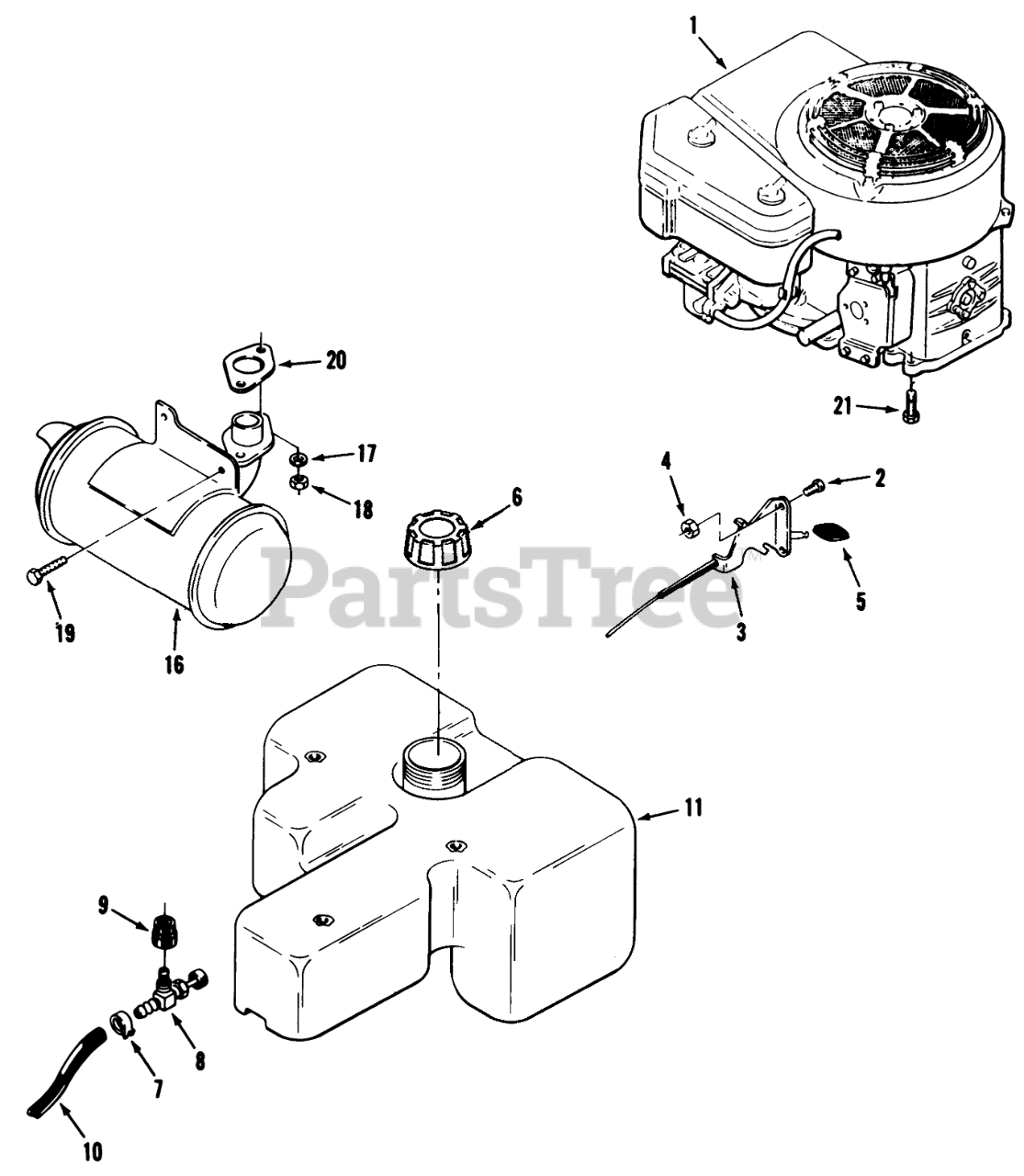

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 113487

Engine-17 HP-Kawasaki Model FC540 V K2800

$

$

Currently unavailable

2

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

3

Toro 115789

THROTTLE-CONTROL

$104.99

$

Usually ships in 3-6 days

0

4

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

7

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

8

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10

Toro 2739

Line-Fuel 53"
(Superseded to 110521)

$

$

Not available

11

Toro 114620

Fuel Tank
(Superseded to 114622)

$

$

Not available

16

Toro 113494

MUFFLER-EUROPE FC540

$1171.99

$

Usually ships in 3-6 days

0

17

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

18

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

19

Toro 113114

HHCS M8X1.25X15

$

$

Not available

20

Toro KW10250

OBS GASKET-EXH FC-540V

$

$

Not available

21

Toro 112148

BOLT M8X1.25X35MM

$

$

Not available

Toro 810522

Engine Owners Manual K/W

$

$

Currently unavailable

Toro 810555

Engine Owners Manual French

$

$

Currently unavailable

Toro 810558

Engine Owners Manual German

$

$

Currently unavailable

Toro 116076

SHIELD-FUEL TANK B

$

$

Not available

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
