R2-17K502 (227-5) - Toro Lawn Tractor (1990) CARBURETOR Parts Diagram

Lawn Tractor

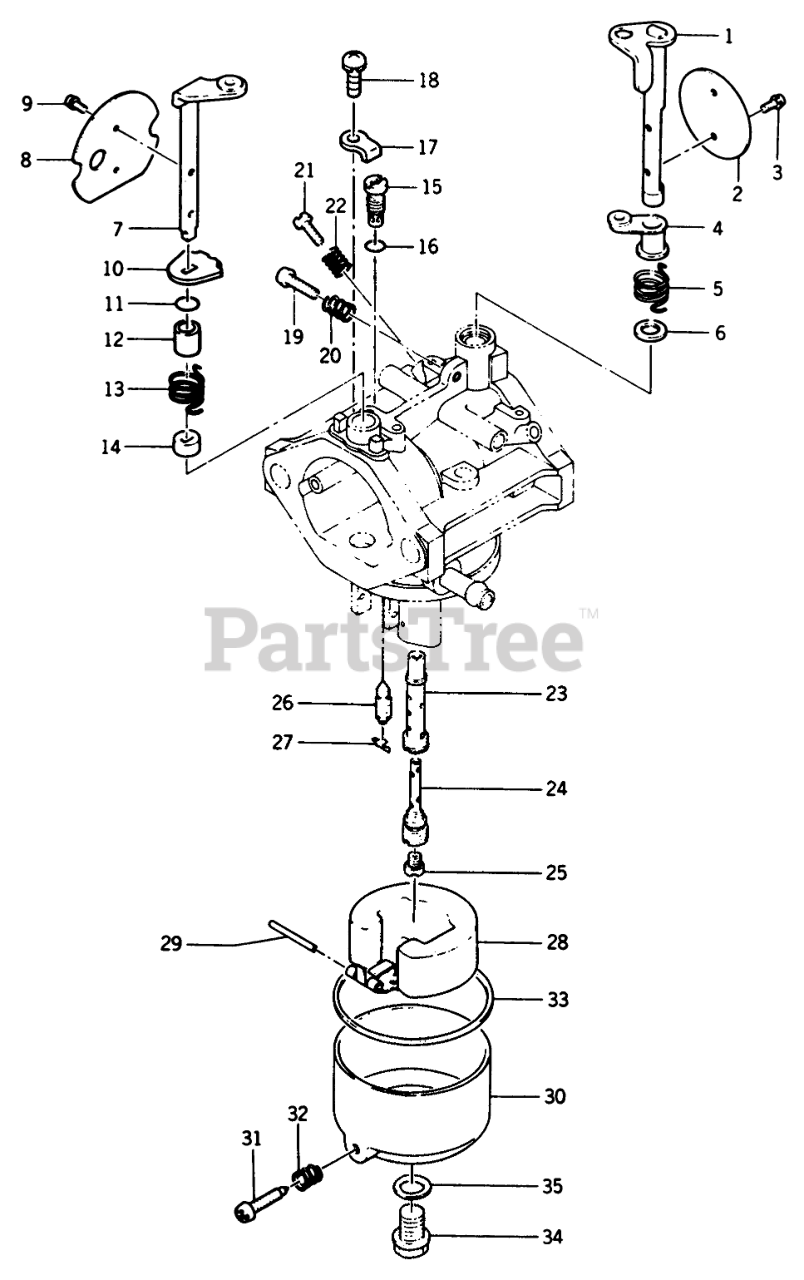

CARBURETOR Parts Diagram

  • Title

1

Toro KW101534

Shaft

$

$

Currently unavailable

2

Toro KW10532

VALVE THROTTLE

$

$

Not available

3

Toro KW10125

SCREW-THROTTLE PLATE

$

$

Not available

4

Toro KW10215

RING BUSHING

$

$

Not available

5

Toro KW10683

SPRING

$

$

Not available

6

Toro KW10306

Seal
(Superseded to KW10126)

$

$

Not available

7

Toro KW10533

SHAFT CHOKE

$

$

Not available

8

Toro KW10538

VALVE CHOKE

$

$

Not available

9

Toro KW10118

SCREW

$

$

Not available

10

Toro KW1068

Collar

$

$

Currently unavailable

11

Toro KW10685

SEAL

$

$

Not available

12

Toro KW10689

RING

$

$

Not available

13

Toro KW10678

SPRING

$

$

Not available

14

Toro KW10687

COLLAR

$

$

Not available

15

Toro KW10675

HOLDER-MAIN JET

$

$

Not available

16

Toro KW10293

O-RING

$

$

Not available

17

Toro KW10528

PLATE

$

$

Not available

18

Toro KW10620

SCREW

$

$

Not available

19

Toro KW10340

Screw 4 x 14
(Superseded to 115-1778)

$1.49

$

Usually ships in 3-6 days

0

20

Toro KW10105

SPRING

$

$

Not available

21

Toro KW10531

SCREW PILOT AIR

$

$

Not available

22

Toro KW10690

SPRING

$

$

Not available

23

Toro KW10596

NOZZLE-MAIN

$

$

Not available

24

Toro KW10597

HOLDER-MAIN JET

$

$

Not available

25

Toro KW10674

JET-MAIN

$

$

Not available

26

Toro KW10067

NEEDLE VALVE ASSY

$

$

Not available

27

Toro KW10297

CLIP

$

$

Not available

28

Toro KW10299

FLOAT

$

$

Not available

29

Toro KW10116

PIN-FLOAT

$

$

Not available

30

Toro KW10298

ASS'Y-FLOAT CHAMBER

$

$

Not available

31

Toro KW10121

SCREW-DRAIN

$

$

Not available

32

Toro KW10106

SPRING

$

$

Not available

33

Toro KW10109

GASKET

$

$

Not available

34

Toro KW10115

BOLT

$

$

Not available

35

Toro KW10131

GASKET

$

$

Not available
