R2-17K502 (227-5) - Toro Lawn Tractor (1990) BRAKE AND CLUTCH LINKAGE Parts Diagram

Lawn Tractor

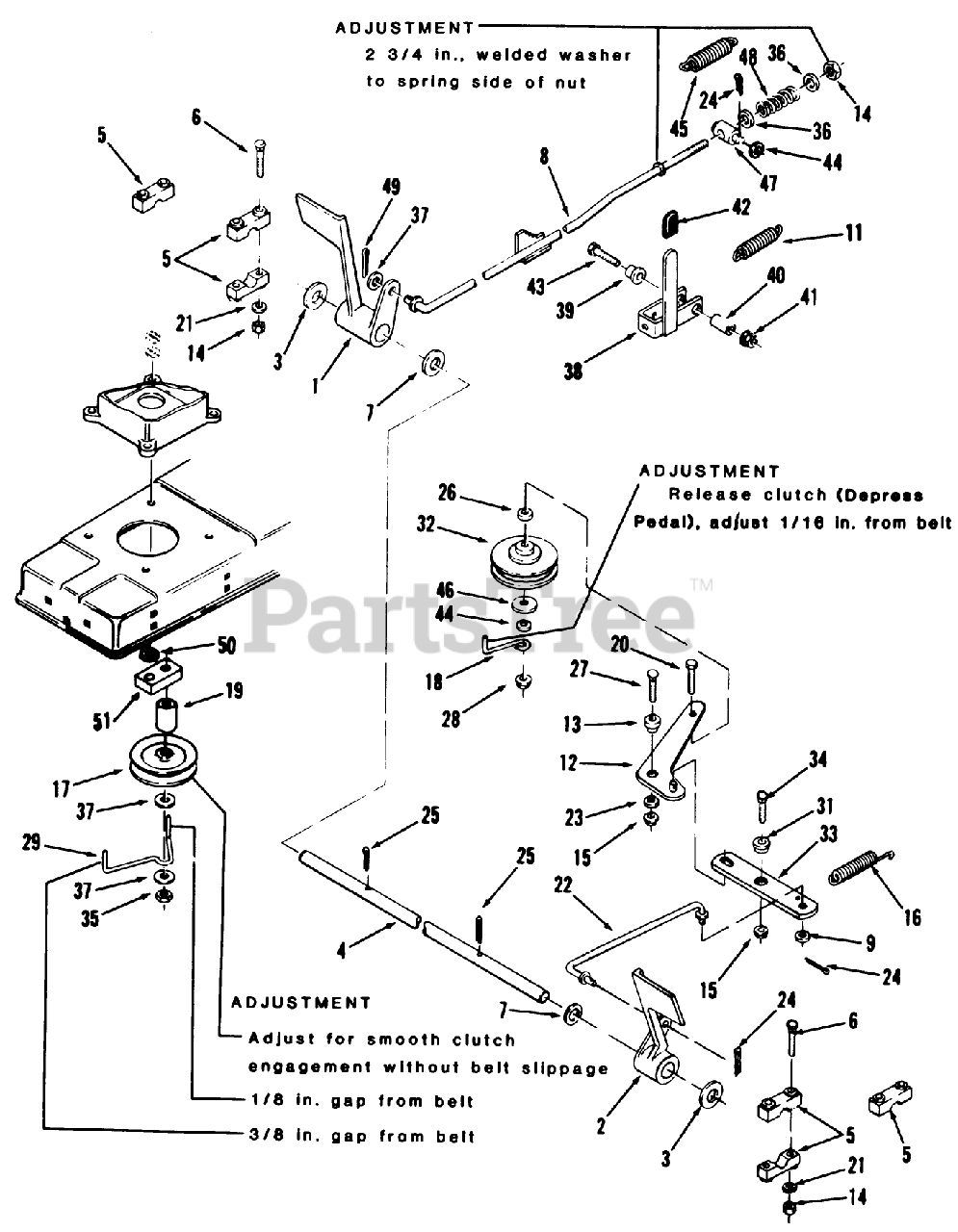

BRAKE AND CLUTCH LINKAGE Parts Diagram

  • Title
1

Toro 108602

PEDAL-BRAKE R

$60.99

$

Usually ships in 3-6 days

0

2

Toro 110621

PEDAL CLUTCH R

$101.99

$

Usually ships in 3-6 days

0

3

Toro 920261

Special Washer

$

$

Not available

4

Toro 112451

SHAFT PEDAL R

$

$

Not available

5

Toro 106585

BLOCK PIVOT

$

$

Not available

6

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 6

0

7

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

8

Toro 108797

ASSY-BRAKE ROD

$

$

Not available

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 103628

SPRING-EXTENSION

$12.99

$

In Stock, only 2 left!

0

12

Toro 106304

IDLER ARM ASSY R

$

$

Not available

13

Toro 106203

SPACER-IDLER ARM

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

16

Toro 83-2730

SPRING-CLUTCH

$19.99

$

In Stock, only 4 left!

0

17

Toro 8205

PULLEY-IDLER STATION

$26.99

$

In Stock, only 1 left!

0

18

Toro 103408

RETAINER-BELT

$

$

Not available

19

Toro 106720

SPACER

$

$

Not available

20

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 115195

Rod-Clutch

$

$

Currently unavailable

23

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

24

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

25

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

26

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

28

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

29

Toro 108511

RETAINER-BELT

$

$

Not available

31

Toro 9475

SPACER

$

$

Not available

32

Toro MW8821

IDLER PULLEY

$22.99

$

Usually ships in 3-6 days

0

33

Toro 106382

BAR-CLUTCH

$

$

Not available

34

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

38

Toro 110641

PAWL & HANDLE ASSY

$

$

Not available

39

Toro 101765

SPACER

$

$

Not available

40

Toro 102025

SPACER

$

$

Not available

41

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

42

Toro 6820

GRIP

$2.49

$

In Stock, only 2 left!

0

43

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

46

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

47

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

48

Toro 7602

SPRING FRICTION

$

$

Not available

49

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

50

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

51

Toro 108512

BLOCK-SPACER

$

$

Not available
