R2-17K501 (227-5) - Toro Lawn Tractor (1990) WHEELS AND TIRES Parts Diagram

Lawn Tractor

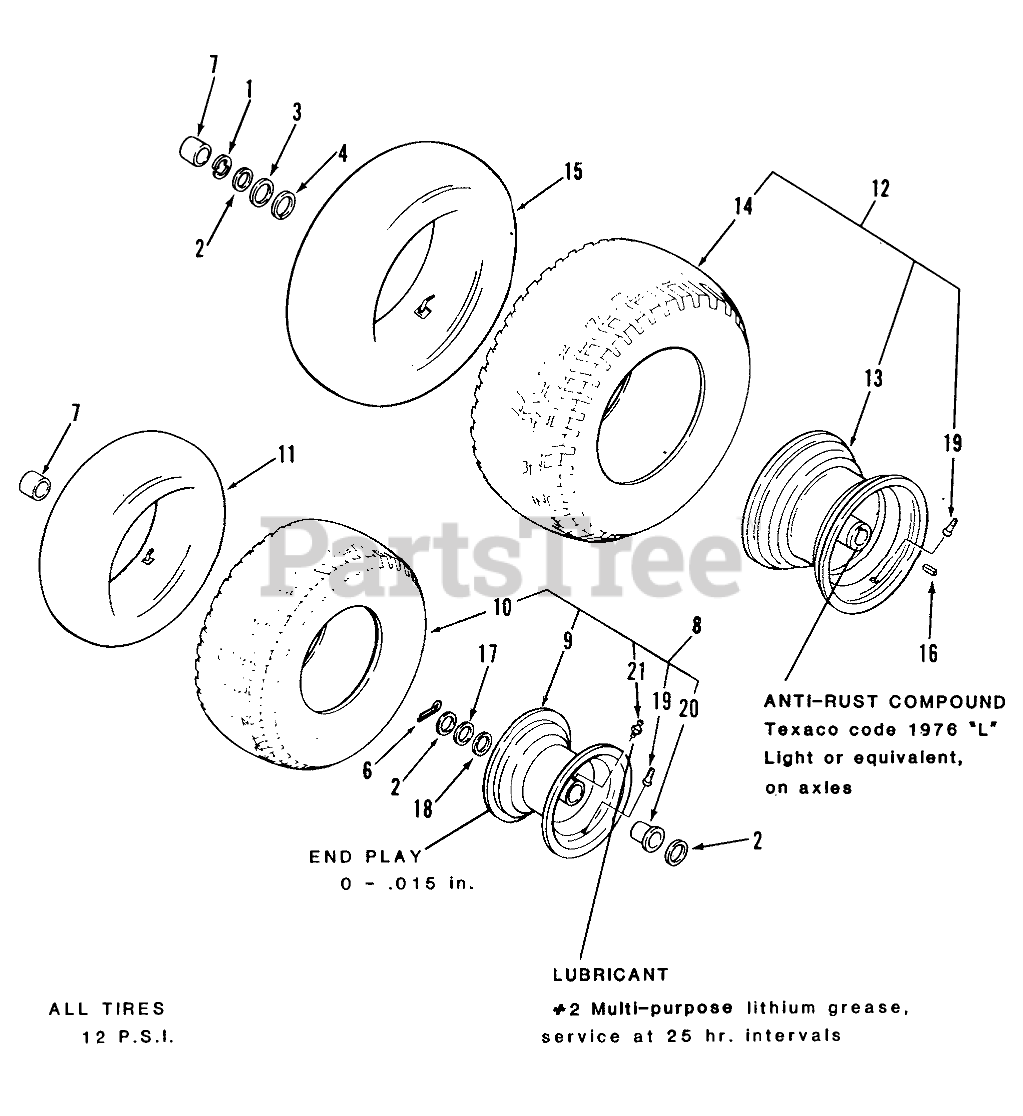

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

2

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

3

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

4

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

6

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

7

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

8

Toro 110706

Assy-Wheel & Tire Front 5-Speed

$

$

Not available

9

Toro 110907

ASSY WHEEL

$

$

Not available

10

Toro 104307

TIRE

$

$

Not available

11

Toro 101779

Tube (Service Only)
(Superseded to 5712)

$

$

Not available

12

Toro 111741

Assy-Wheel & Tire-Rear-5-Speed 227-5

$

$

Not available

13

Toro 110817

ASSY WHEEL RIM

$

$

Not available

14

Toro 108807

Rear Tire 20 x 10.0-10.0
(Superseded to 231-103)

$

$

Not available

15

Toro 802477

Rear Tube-Service Only-5-Speed

$

$

Currently unavailable

16

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

18

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

19

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

20

Toro 100166

FLANGE BEARING

$34.99

$

Usually ships in 3-6 days

0

21

Toro 1030

Zerk

$

$

Not available
