R2-17K501 (227-5) - Toro Lawn Tractor (1990) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

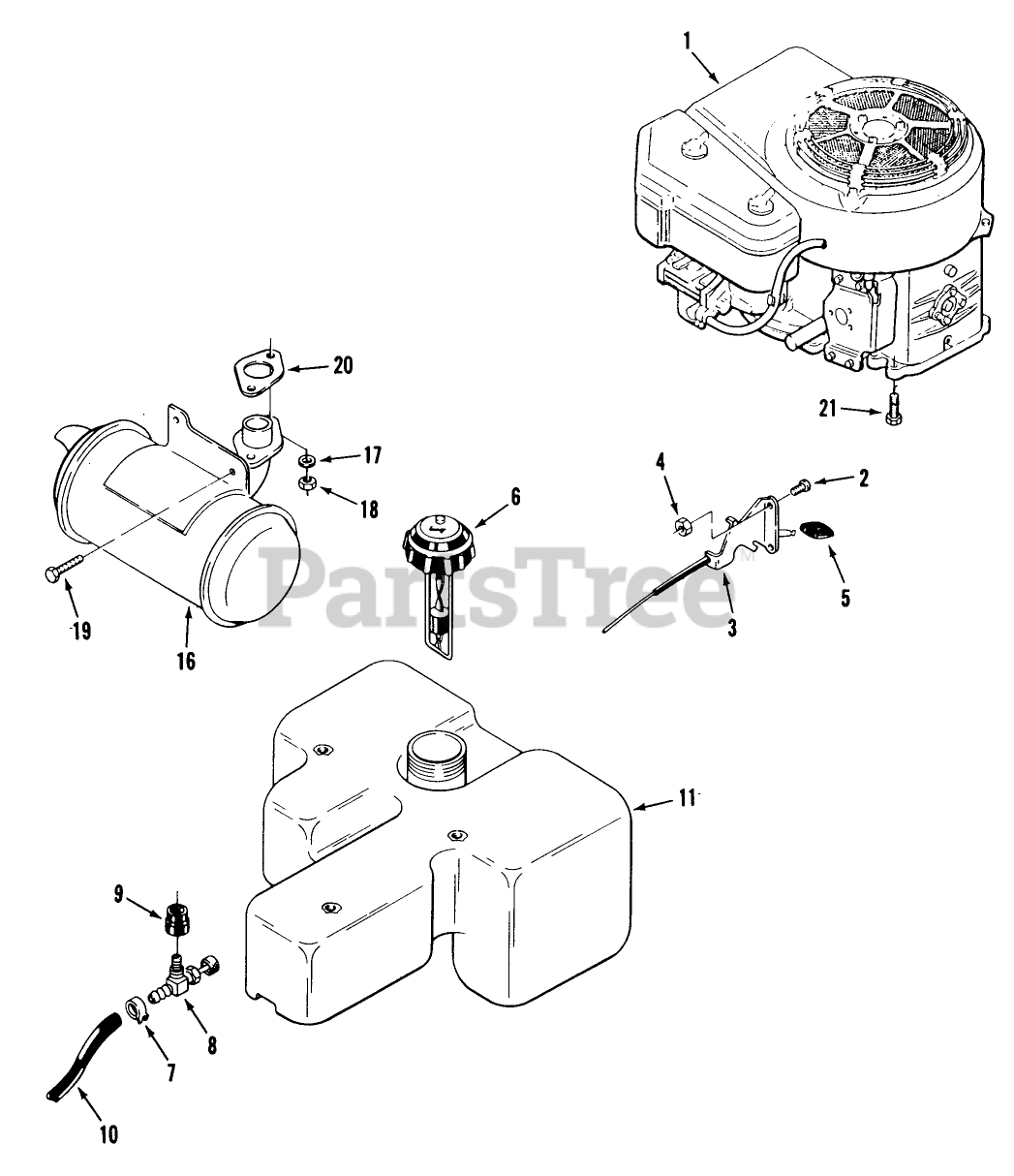

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 113487

Engine-17 HP-Kawasaki Model FC540 V K2800

$

$

Currently unavailable

2

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

3

Toro 115789

THROTTLE-CONTROL

$86.99

$

Usually ships in 3-6 days

0

4

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Toro 108917

KNOB-THROTTLE

$2.99

$

In Stock, only 1 left!

0

6

Toro 113867

ASS'Y-GAUGE CAP

$

$

Not available

7

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

8

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

9

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10

Toro 2739

Line-Fuel 53"
(Superseded to 110521)

$

$

Not available

11

Toro 114622

Fuel Tank

$

$

Not available

16

Toro 113494

MUFFLER-EUROPE FC540

$1032.99

$

Usually ships in 3-6 days

0

17

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 112190

Nut M8x1.25 257-H

$

$

Not available

19

Toro 112147

Screw
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

20

Toro KW10250

OBS GASKET-EXH FC-540V

$

$

Not available

21

Toro 112148

BOLT M8X1.25X35MM

$

$

Not available

Toro 810522

Engine Owners Manual K/W

$

$

Currently unavailable

Toro 810555

Engine Owners Manual French

$

$

Currently unavailable

Toro 810558

Engine Owners Manual German

$

$

Currently unavailable
