R2-17K501 (227-5) - Toro Lawn Tractor (1990) DRIVE BELT AND PULLEYS Parts Diagram

Lawn Tractor

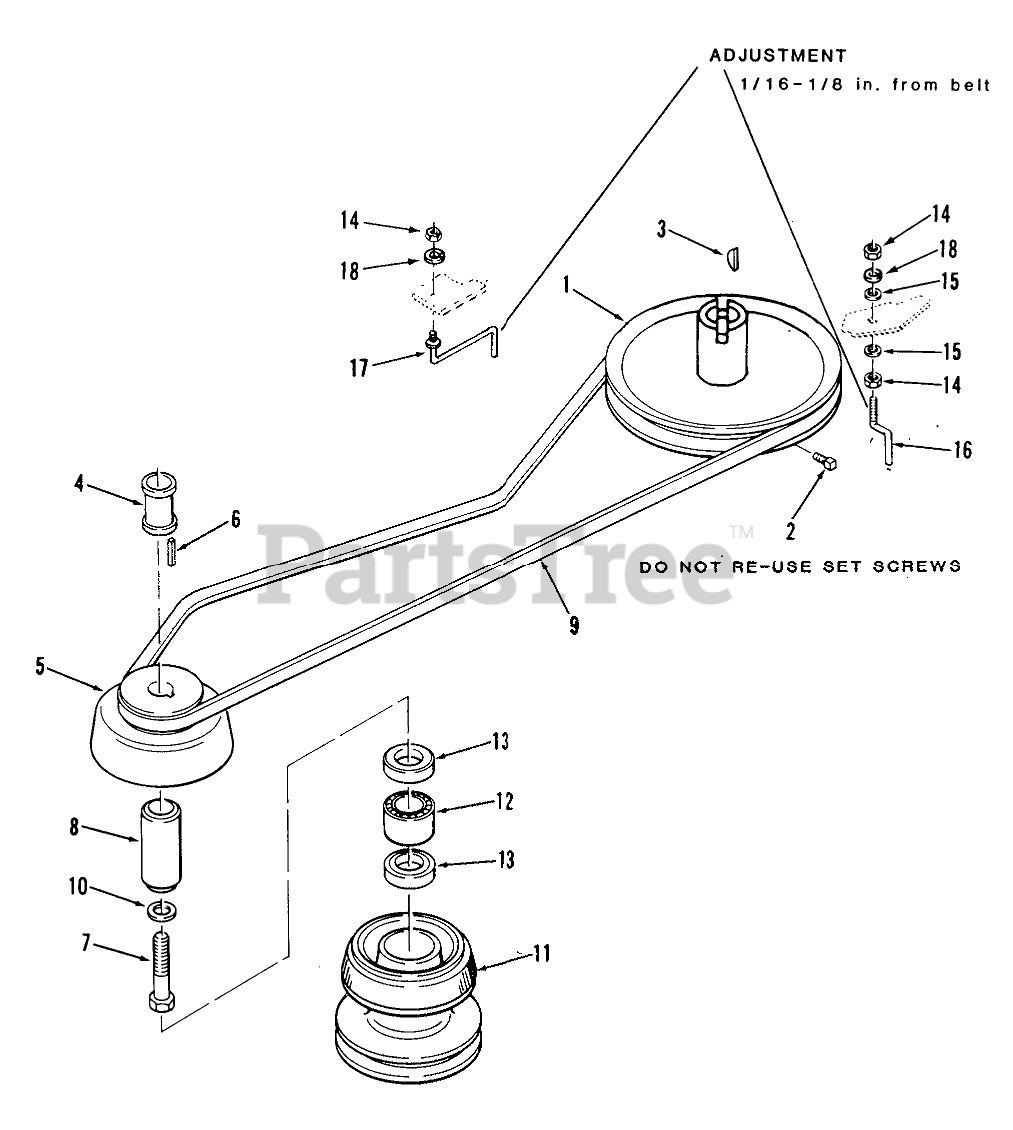

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 116121

PULLEY-TRANS (B)

$290.99

$

Usually ships in 3-6 days

0

2

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

3

Toro 937225

KEY-HI-PRO

$4.99

$

Usually ships in 3-6 days

0

4

Toro 112467

SPACER-TUBE

$

$

Not available

5

Toro 112468

PULLEY-ENGINE

$

$

Not available

6

Toro 105453

Key

$1.99

$

In Stock, only 2 left!

0

7

Toro 908195

HEX HD CAP SCREW

$

$

Not available

8

Toro 112469

RACE-BEARING

$

$

Not available

9

Toro 108427

V-BELT

$38.99

$

Usually ships in 3-6 days

0

10

Toro 920265

Special Washer 227-5

$

$

Not available

11

Toro 111321

ASSY PULLEY MWR DR

$

$

Not available

12

Toro 106769

BRG-NEEDLE OPEN END

$52.99

$

In Stock, only 1 left!

0

13

Toro 6663

SEAL-OIL

$11.99

$

In Stock, only 1 left!

0

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 108397

GUIDE-BELT

$

$

Not available

17

Toro 109041

GUIDE-BELT

$

$

Not available

18

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0
