R2-17K501 (227-5) - Toro Lawn Tractor (1990) ATTACHMENT LIFT Parts Diagram

Lawn Tractor

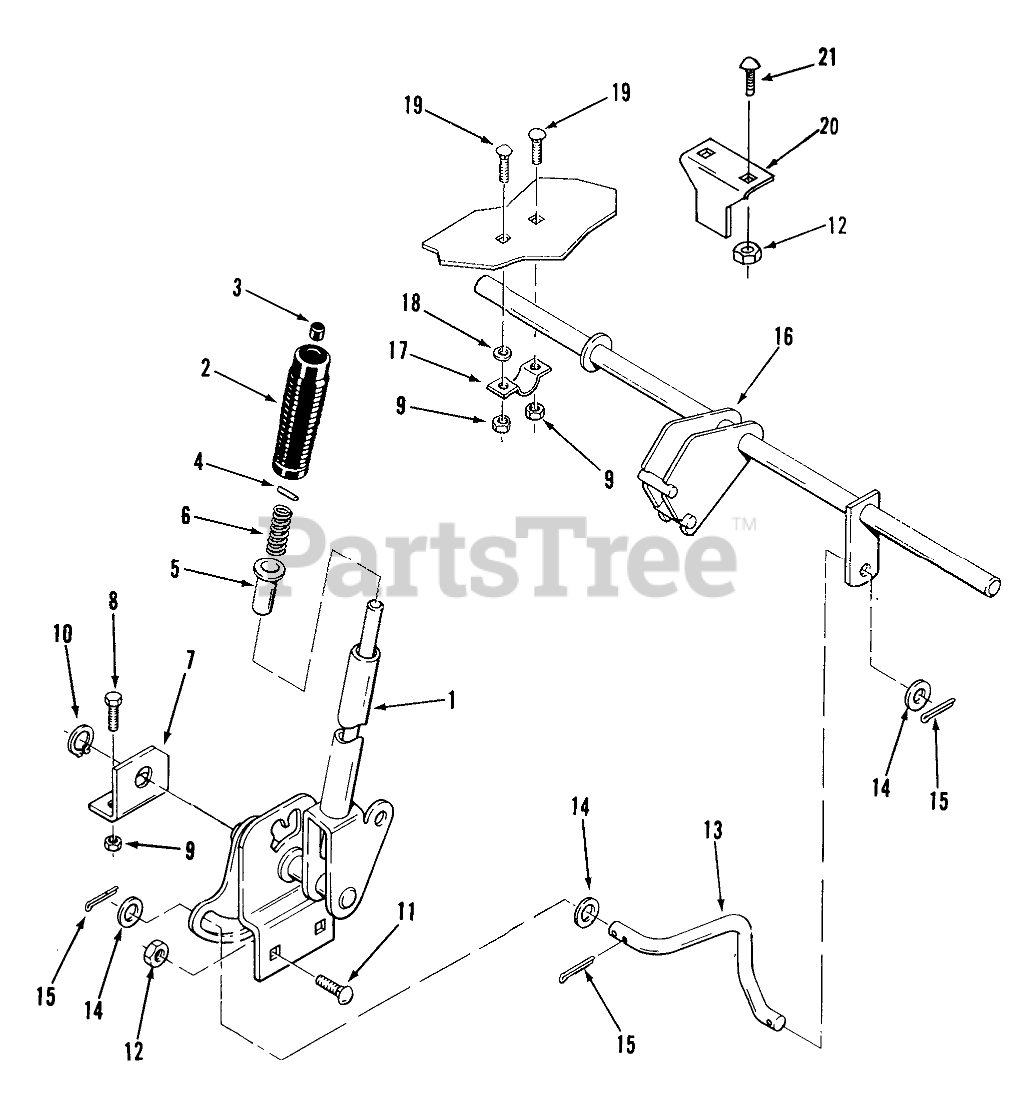

ATTACHMENT LIFT Parts Diagram

  • Title

1

Toro 109170

Lift Lever

$

$

Not available

2

Toro 6542

HANDGRIP

$16.99

$

Usually ships in 3-6 days

0

3

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

4

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

5

Toro 8130

RETAINER-SPRING

$23.99

$

Usually ships in 3-6 days

0

6

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

7

Toro 109177

BRACKET-INNER R

$

$

Not available

8

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

11

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

12

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

13

Toro 114364

ROD-LIFT R

$

$

Not available

14

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 109333

ASM-REAR LIFT R
(Superseded to 109333-01)

$

$

Not available

17

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

18

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

19

Toro 926694

SCREW

$

$

Not available

20

Toro 111089

BRACKET STOP

$

$

Not available

21

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0
