R2-17K501 (227-5) - Toro Lawn Tractor (1990) 5-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

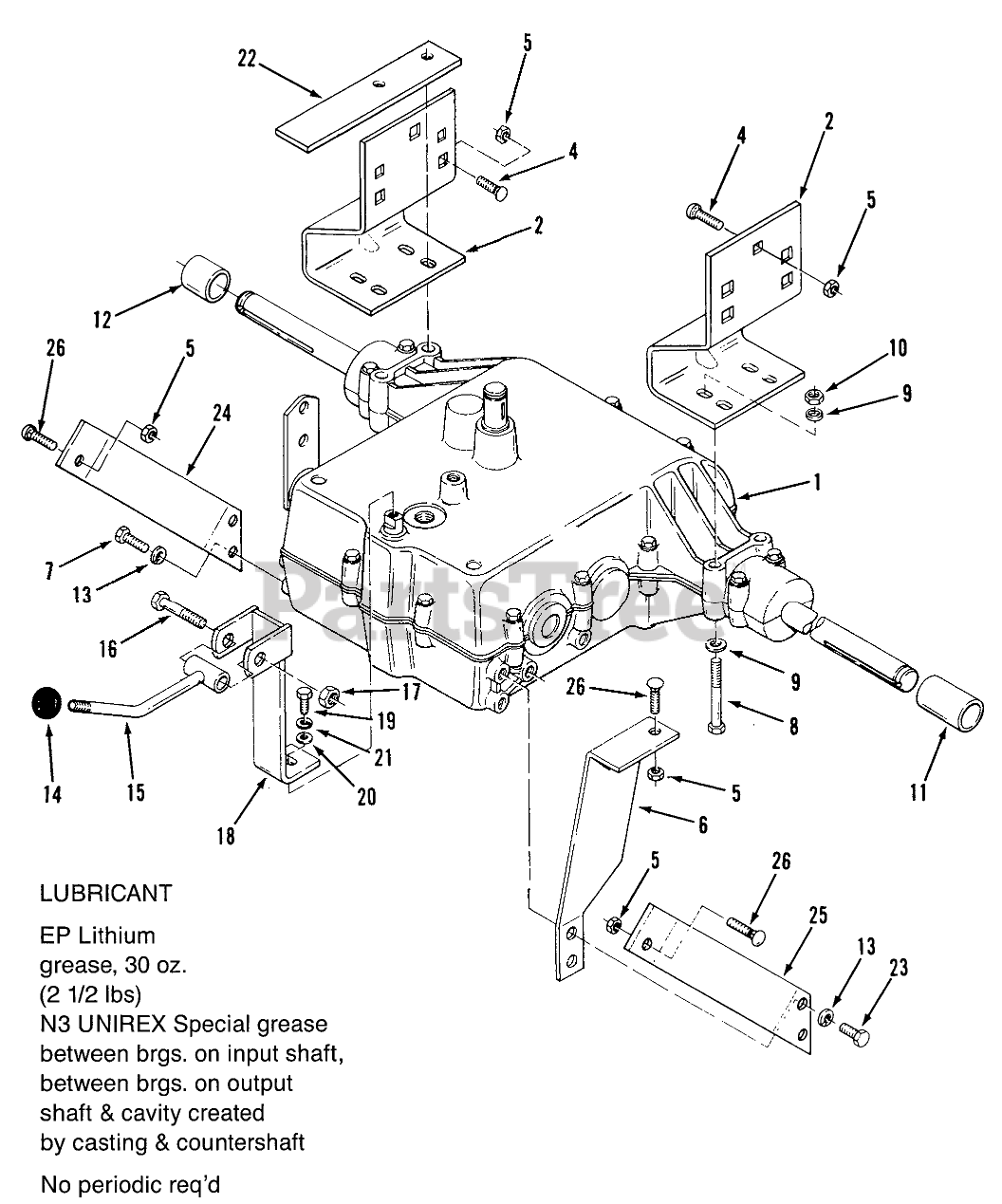

5-SPEED TRANSMISSION Parts Diagram

  • Title

1

Toro 111049

Transmission-5-Speed Peerless Model 801-026

$

$

Currently unavailable

2

Toro 108793

BRKT-TRANS MOUNT R

$

$

Not available

4

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 108792

TORQUE STRAP

$

$

Not available

7

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 1 left!

0

8

Toro 908025

HHCS
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

9

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 108421

SPACER-AXLE LH

$

$

Not available

12

Toro 108420

SPACER-AXLE RH

$

$

Not available

13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

14

Toro 108758

KNOB

$13.99

$

In Stock, Qty 5

0

15

Toro 109638

ASSY-UPPER SHIFT ROD

$119.99

$

Usually ships in 3-6 days

0

16

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

Toro 111050

WASHER SPECIAL

$

$

Not available

17

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

18

Toro 109492

ASSY LEVER R

$374.99

$

Usually ships in 3-6 days

0

19

Toro 111051

Bolt-12 Point-5-Speed
(Superseded to 9114384)

$

$

Not available

20

Toro 104869

WASHER

$

$

Not available

21

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

22

Toro 108396

Brake Stop Bar

$

$

Not available

23

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

24

Toro 110152

TORQUE STRAP RH

$

$

Not available

25

Toro 110151

TORQUE STRAP LH

$

$

Not available

26

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0
